12-3. NTXMMX42A152AA
NTXMPH20A122AA NTXMPH24A132AA NTXMPH30A132AA
Photos: NTXMPH30A132AA
NOTE: Turn OFF the power supply before disassembly.
OPERATING PROCEDURE PHOTOS/FIGURES

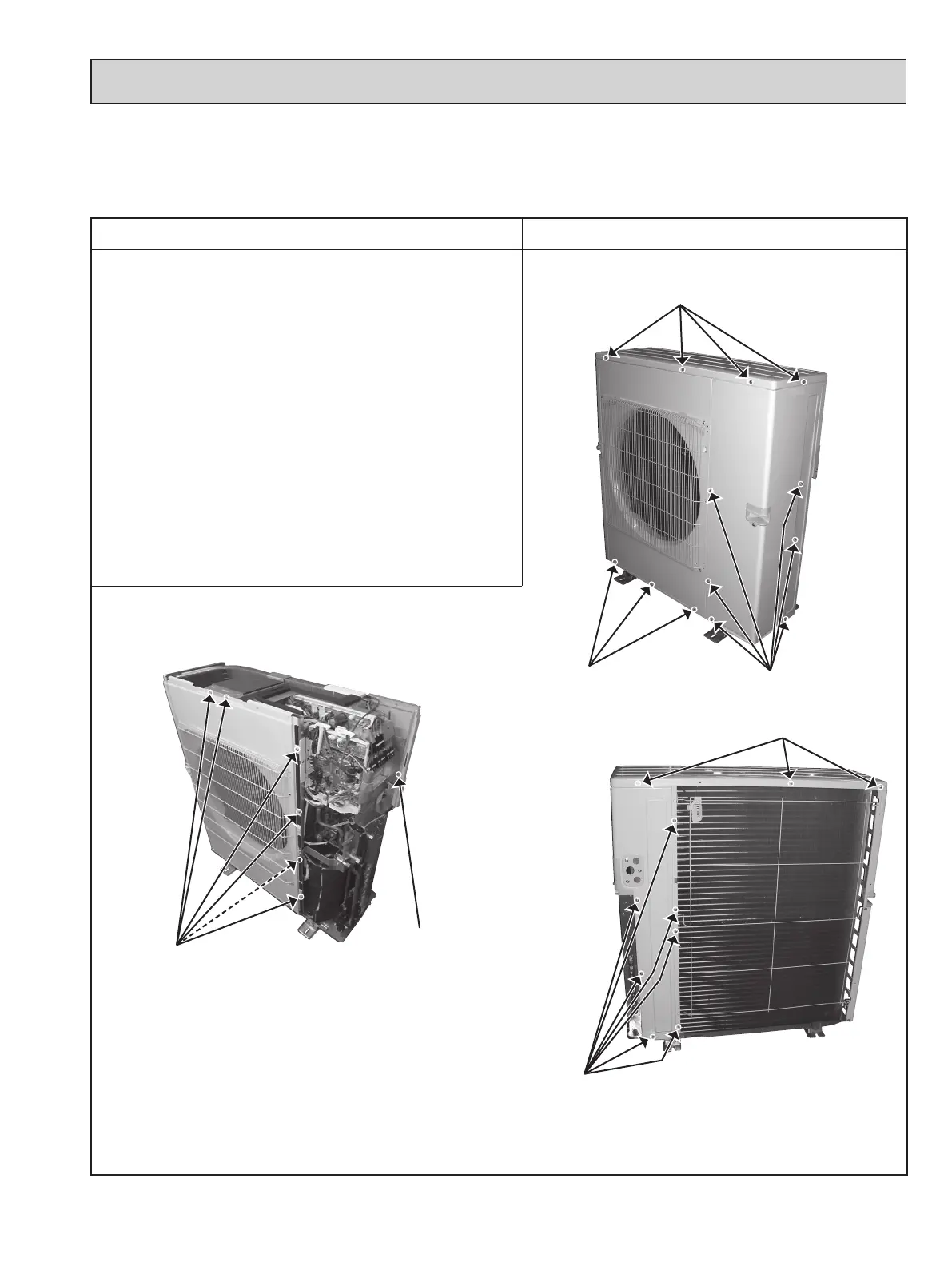

1. Removing the panels
(1) Remove all the screws fixing the top panel, and remove
the top panel.
(2) Remove all the screws fixing the service panel.
(3) Pull down on the service panel, and remove the service
panel.
(4) Disconnect the power supply cord and indoor/outdoor
connecting wires.
(5) Remove all the screws fixing the front panel, and remove
the front panel.
(6) Remove all the screws fixing the back panel, and remove
the back panel.
103
Photo 1
Screws of the service panel
Screws of the front panel
Screws of the top panel
Screws of the top panel
Screws of the back panel
Photo 2
Photo 3
Screws of the front panel
Screw of the back panel
OBHT702
