Trane Precedent TSC090H - Evaporator Fan Performance; 1-hp Motor Performance; 3-hp Motor Performance; Fan Motor Heat Calculation

Performance Data
RT-SVF55F-EN 7
Evaporator Fan Performance

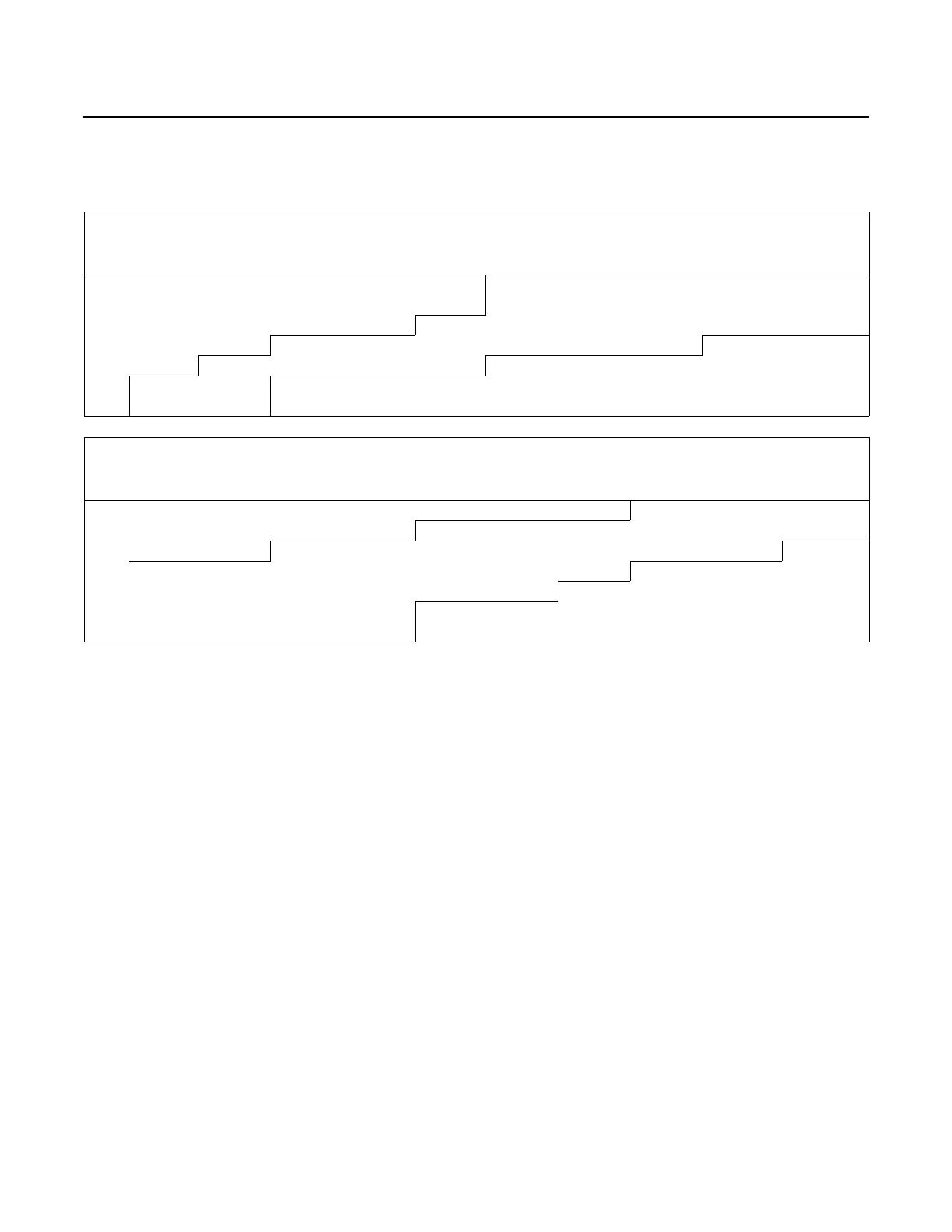

Table 7. Belt drive evaporator fan performance - 7.5 tons standard efficiency - TSC090H3,4,W downflow airflow
External Static Pressure (Inches of Water)
.10 .20 .30 .40 .50 .60 .70 .80 .90 1.00
cfm rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & Field Supplied Low Static Drive
(a)
(a) Field Supplied Fan Sheave AK74 and Belt AX35
1-hp Standard Motor & Drive
2400 613 0.42 668 0.50 711 0.57 756 0.65 798 0.72 838 0.80 875 0.88 911 0.96 945 1.04 978 1.12
2700 676 0.56 733 0.69 767 0.74 808 0.83 848 0.91 886 1.00 922 1.09 956 1.18 989 1.27 1021 1.36
3000 741 0.75 793 0.89 832 0.98 863 1.04 901 1.14 936 1.24 971 1.33 1003 1.43 1036 1.53 1067 1.63
3300 807 0.98 849 1.10 897 1.26 925 1.32 954 1.40 989 1.51 1022 1.62 1053 1.73 1084 1.83 1113 1.94
3600 874 1.25 909 1.36 957 1.55 990 1.67 1015 1.73 1042
1.82 1074 1.95 1104 2.07 1134 2.18 1163 2.30
3-hp Oversized Motor & Drive
continued
External Static Pressure (Inches of Water)
1.10 1.20 1.30 1.40 1.50 1.60 1.70 1.80 1.90 2.00
cfm rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp rpm bhp
1-hp Standard Motor & High Static Drive Kit (or 2-hp Oversized Motor & Drive)
2400 1011 1.20 1041 1.28 1070 1.36 1099 1.44 1127 1.52 1153 1.60 1178 1.68 1203 1.76 1229 1.84 1252 1.92
2700 1051 1.45 1082 1.54 1111 1.63 1139 1.72 1166 1.81 1192 1.90 1217 1.98 1243 2.08 1268 2.17 1291 2.25
3000 1096 1.73 1124 1.83 1153 1.93 1180 2.03 1207 2.13 1233 2.23 1258 2.33 1283 2.43 1308 2.53 1331 2.63
3300 1142 2.05 1170 2.16 1197 2.27 1223 2.37 1249 2.48 1275 2.59 1300 2.71 1324 2.82 1347 2.92 1371 3.03
3600 1191 2.41 1218 2.53 1244
2.65 1269 2.77 1294 2.89 1319 3.01 1342 3.12 1366 3.24 1389 3.36 — —
3-hp Oversized Motor & Field Supplied High Static Drive
(b)
(b)Field Supplied Fan Sheave BK52 and Belt BX30
Notes:
1. For standard evaporator fan speed (rpm), reference the standard motor and shea
ve/fan speed applicable table in the fan performance section.
2. Data includes pressure drop due to standard filters and wet coils. No accessories or options are included in pressure drop data.
3. 1-hp Fan Motor Heat (MBh) = 2.829 x Fan bhp+.4024. 3-hp Fan Motor Heat (MBh) = 2.900 x Fan bhp+.4750
4. Factory supplied motors, in commercial equipment, are definite purpose motors, specifically designed and tested to operate reliably and continuously
a
t a
ll cataloged conditions. Using the full horsepower range of our fan motors as shown in our tabular data will not result in nuisance tripping or
premature motor failure. Our product's warranty will not be affected.
