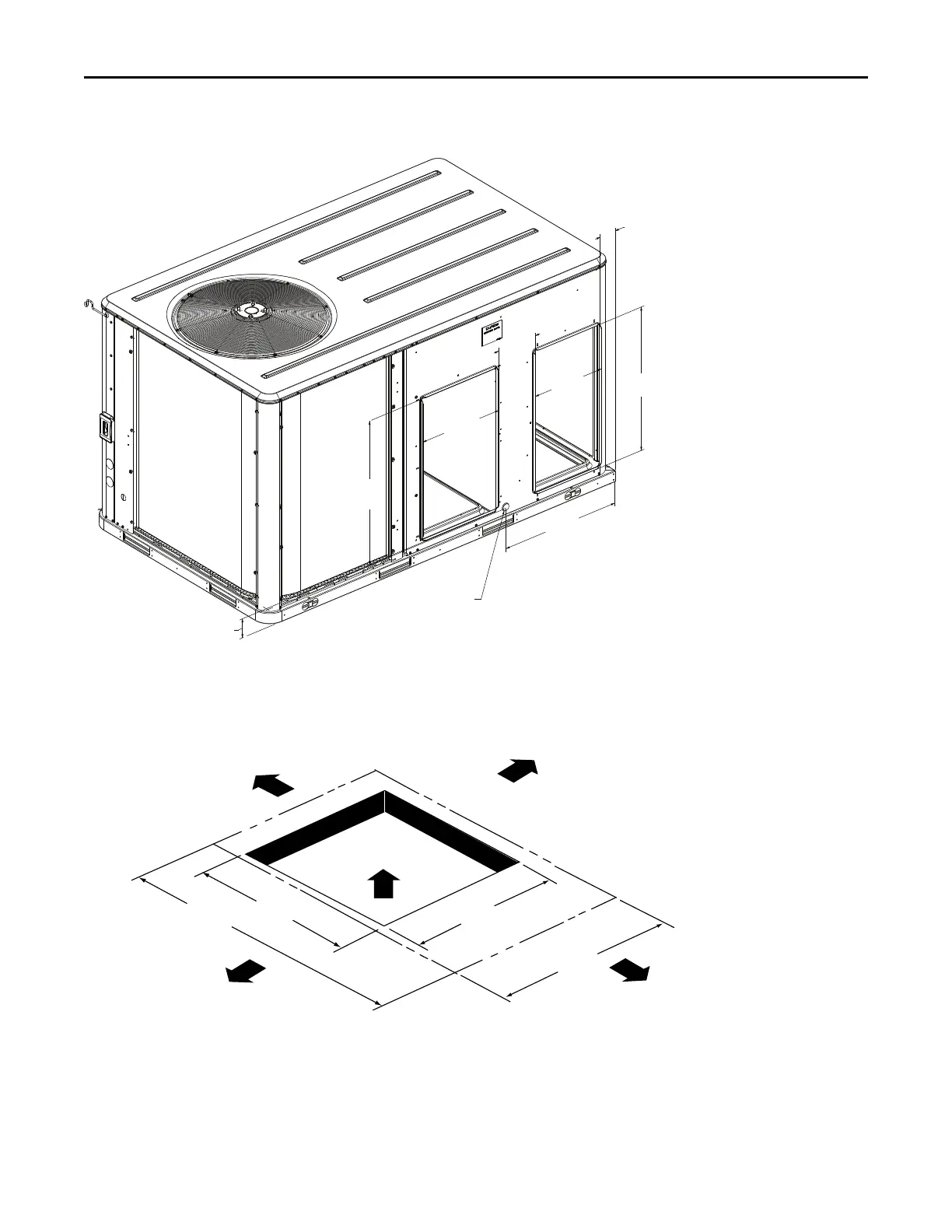

Figure 4. 6 to 10 tons standard efficiency – horizontal airflow supply/return
3/4 -14 NPT DIA. HOLE
CONDENSATE DRAIN
4-1/4"
[109]
32-1/4"
[820]
27-5/8"
[700]
19-1/4"
[490]
16-3/4"
[426]
9-3/8"
[237]
32-1/4"
[820]
3-7/4"
[97]
Figure 5. 6 to 10 tons standard efficiency — unit clearance and roof opening
CLEARANCE 36” (914 MM)
CLEARANCE FROM
TOP OF UNIT 72”
TYPICAL ROOF OPENING
CLEARANCE 48” (1219 MM)
CLEARANCE 36” (914 MM)
CLEARANCE
HORIZONTAL FLOW - 18” (457 MM)
DOWNFLOW - 36” (914 MM)
53 1/4”
1352 MM
46”
1168 MM
46”
1168 MM
88 5/8”
2251 MM
