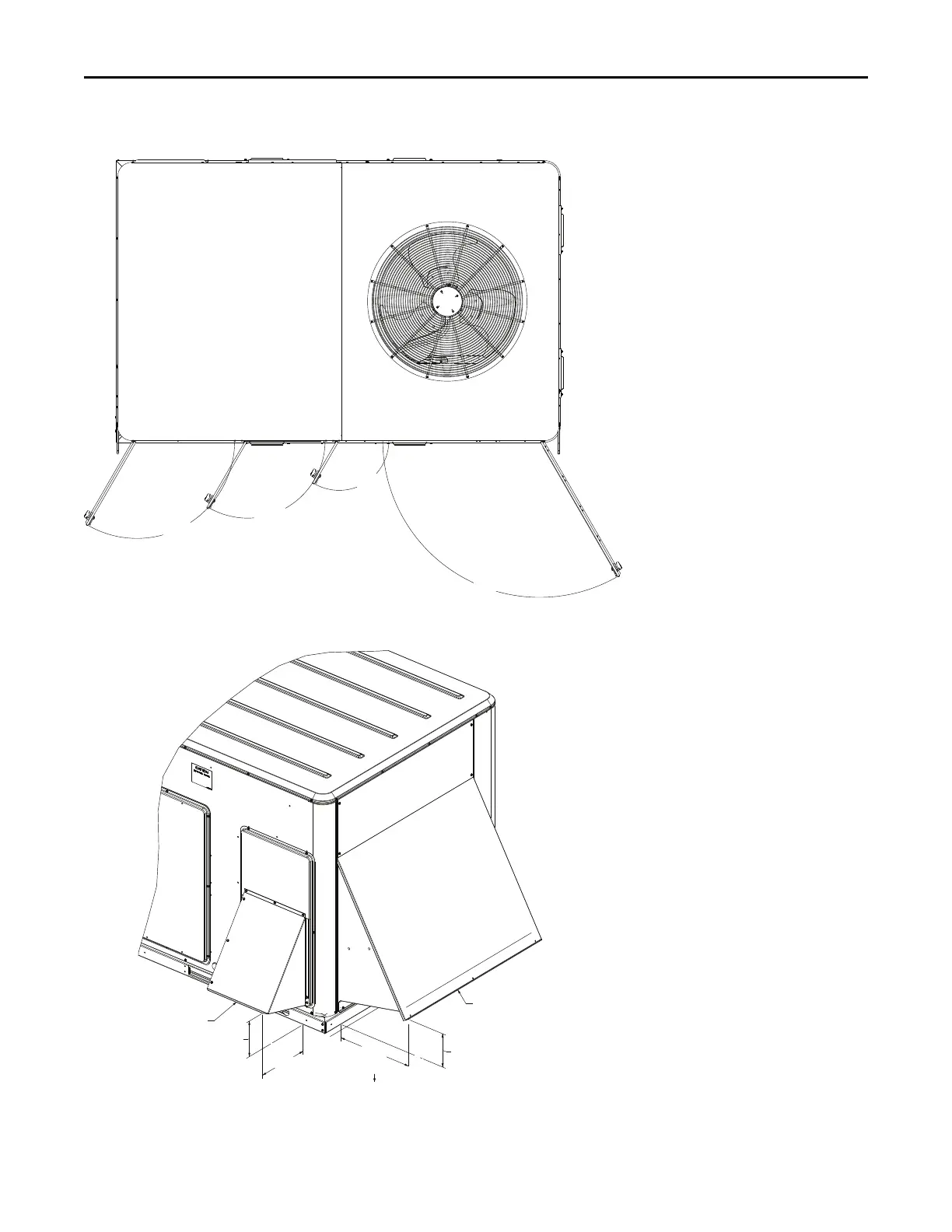

Figure 14. 12.5 tons standard efficiency – swing diameter for hinged door(s) option
17-3/8"
[443]
11"
[279]
35"
[890]
21-3/4"
[554]
Figure 15. 6 to 12.5 tons standard efficiency – economizer, manual or motorized fresh air damper
DIMENSIONS EXTENDS TO 21-5/8" (549MM)
WHEN POWERED EXHAUST IS COUPLED
WITH LOW LEAK ECONOMIZER
ECONOMIZER HOOD
BAROMETRIC RELIEF HOOD
16-3/4"
[424]
7-1/4"
[185]
12"
[303]
7-3/4"
[198]
Dimensions and Weights
