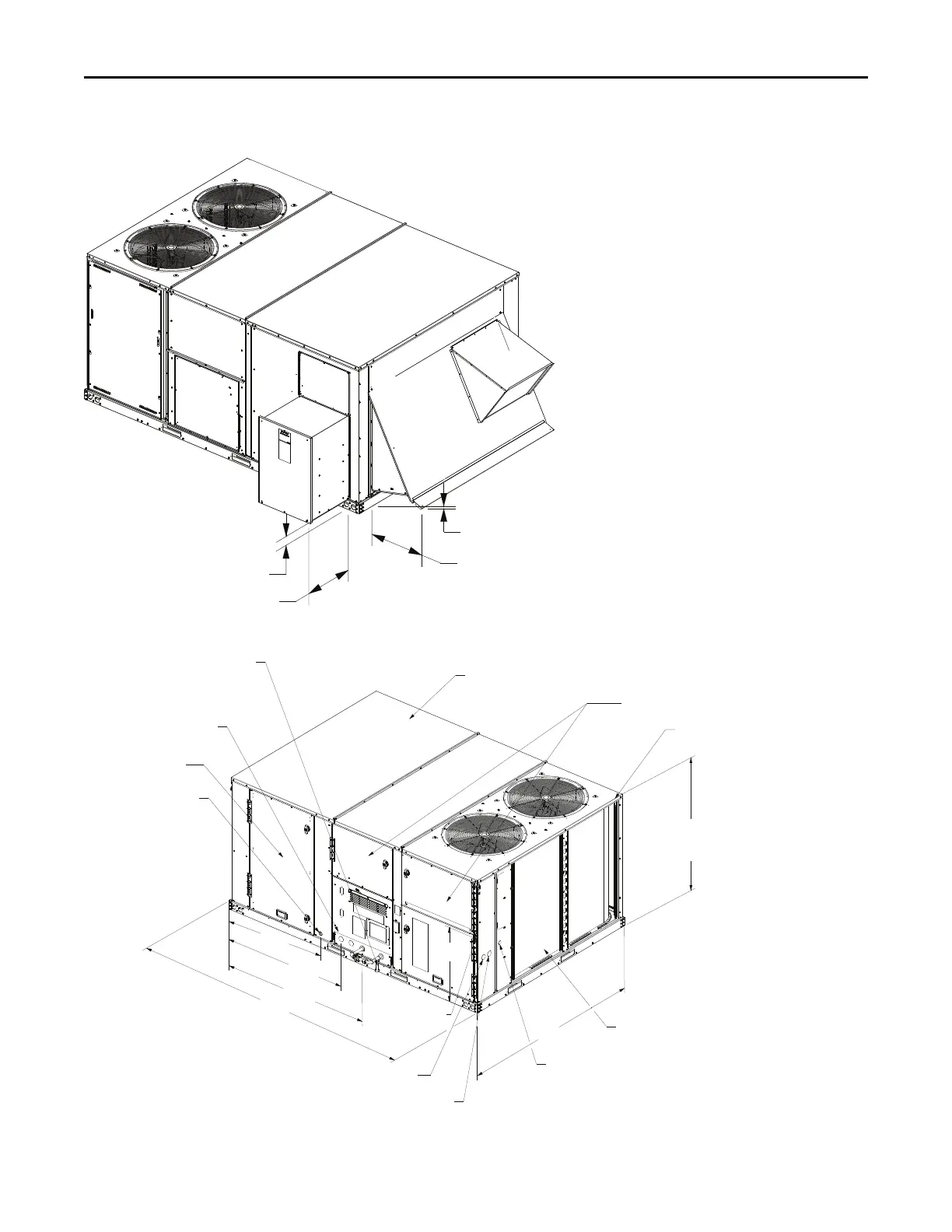

Figure 17. 15 to 25 tons standard efficiency – power exhaust
21.4
4.4
22.7
7.8
Figure 18. 15 to 25 tons standard efficiency
123''
[3124]
87''
[2210]
59'' D.0 CAB OR
[1499]
66'' D.1 CAB
[1676]
65 5/8''
[1668]
55''
[1398]
31 7/8''
[810]
44 3/4''
[1135]
GAS CONNECTION
3/4 NPT (280, 320, 400 MBh)
EVAPORATOR SECTION
ACCESS PANEL
CONDENSATE DRAIN
INDOOR TOP PANEL
CONTROL BOX SECTION
ACCESS PANEL
UNIT CONTROL WIRE
2'' (50 MM) DIA. HOLE
UNIT POWER WIRE
2'' (50 MM) DIA. HOLE
OUTDOOR T
OP PANEL
SERVICE GAUGE PORT ACCESS
1 3/8'' (35 MM) DIA. HOLE
2" ELECTRICAL CONN SINGLE POINT
POWER "T" MODELS ONLY
UNIT CONTROL WIRE
CONDENSER COIL
