26
RT-SVX070B-EN
Weights

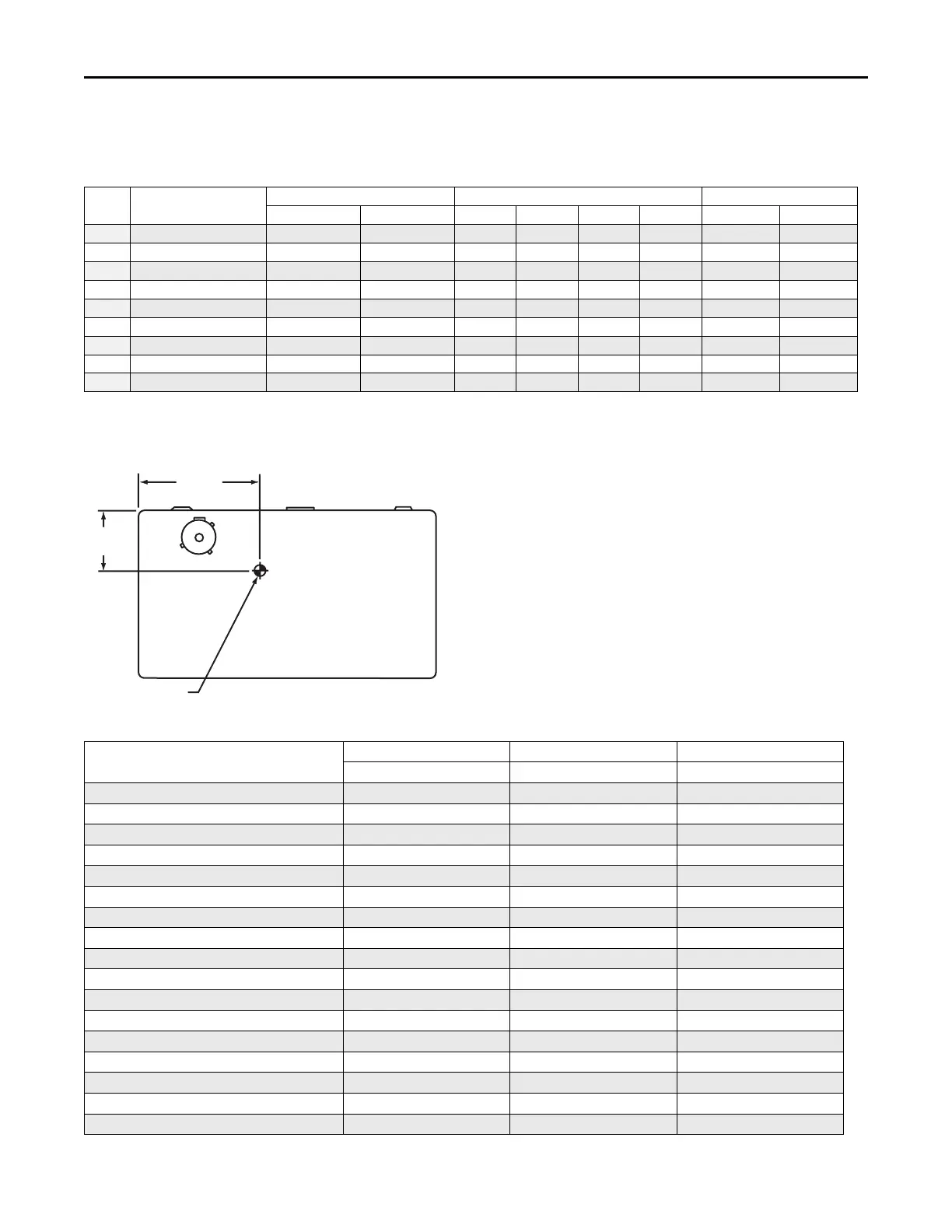

Table 1. Maximum unit, corner weights (lbs) and center of gravity dimensions (in.)
Tons Unit Model No.
Maximum Model Weights
(a)
Corner Weights
(b)
Center of Gravity (in.)
Shipping
Net A B C D
Length
Width
6 TSJ072 1007 909 331 308 177 190 43 19
7.5 TSJ090 1011 913 332 310 178 191 43 19
8 TSJ102 1027 929 337 315 181 194 43 19
10 TSJ120 1037 939 341 318 183 196 43 19
12.5 TSJ150 1412 1218 413 417 293 290 50 26
15 TSJ180 2040 1820 611 447 322 440 52 36
17.5 TSJ210 2070 1850 612 463 334 441 53 36
20 TSJ240 2140 1920 689 472 309 451 50 34
25 TSJ300 2190 1970 684 484 332 469 51 35
(a)
Weights are approximate.
(b)
Corner weights are given for information only.
Figure 25. Corner weights
Center of Gravity
Length
Center of
Gravity
Width
Center of Gravity
A
B
C
D
Table 2. Factory installed options (FIOPS)/accessory net weights (lb)
Accessory
TSJ072-120 TSJ150 TSJ180-300
6, 7.5, 8.5, 10 Tons
12.5 Tons
15, 17.5, 20, 25 Tons
Barometric Relief 10 10 40
Economizer 36 36 91
Electric Heaters 44 50 75
Hinged Doors
12 12 20
Low Leak Economizer - Downflow 91 91 150
Low Leak Economizer - Horizontal — — 180
Manual Outside Air Damper
26 26 15
Motorized Outside Air Damper
30 30 82
Oversized Motor 14 — 30
Powered Convenience Outlet 38 50 50
Powered Exhaust 80 80 110
Reheat Coil 16 20 33
Roof Curb 105 111 235
Smoke Detector, Supply
5 5 5
Smoke Detector, Return
7 7 5
Through-the-Base Electrical
13 13 10
Unit Mounted Circuit Breaker 5 5 10
Dimensions and Weights
