These diagrams are subject to change without notice, please refer to the diagram supplied with the unit.
N(1)
N(1)
3
NOTE: Motor ground only
applies to metal clad
motors.
NOTE: Motor ground only
applies to metal clad
motors.

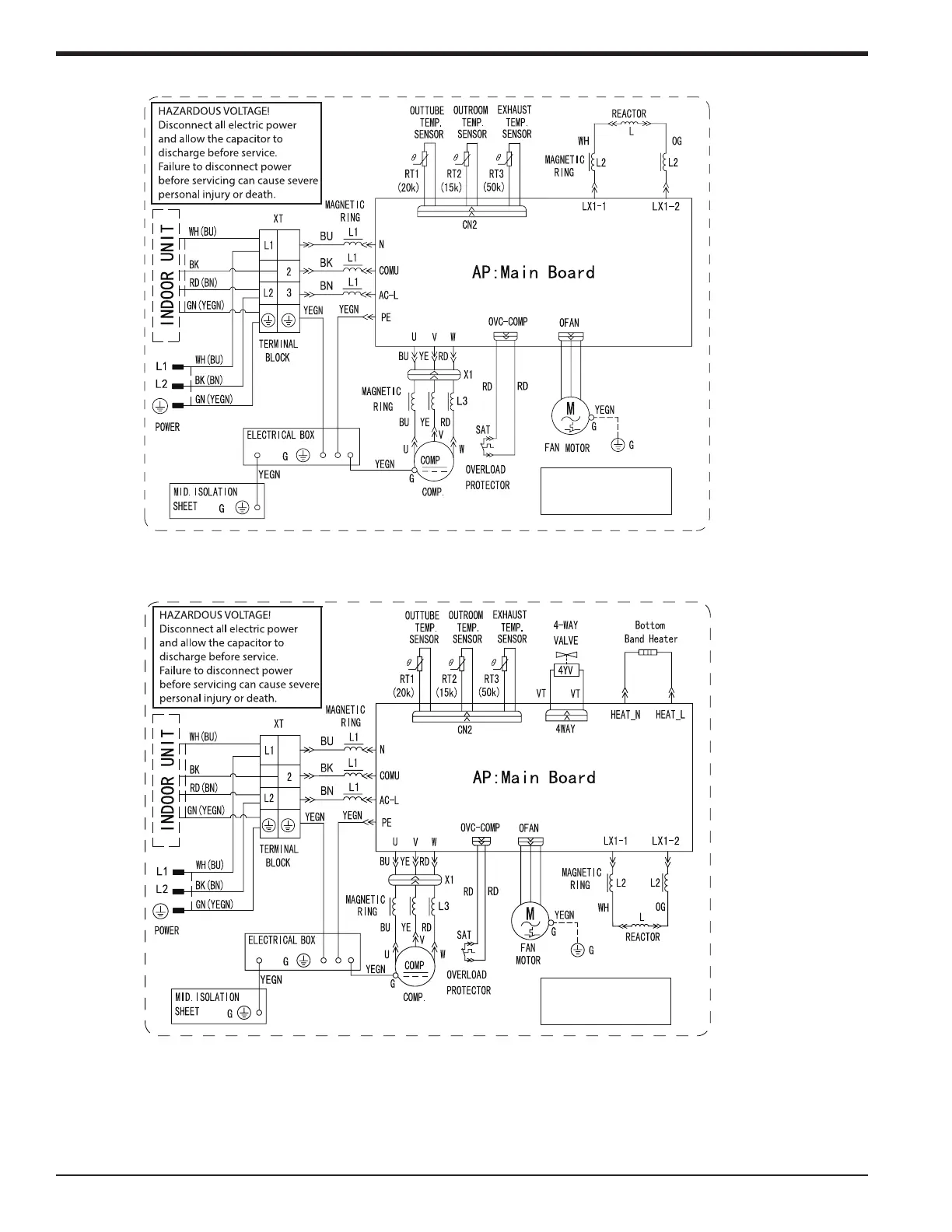

Outdoor Cooling Only Unit 9K-12K
Outdoor Heat Pump Only Unit 9K-12K
NOTE: The wiring diagrams in this guide are included as a reference. The manufacturer
has a policy of continuous product and product data improvement and reserves the right
to change design and specications without notice. Always check the unit nameplate and
wiring diagram for the actual unit requirements.
32 88-M4MHW17-1A-EN
Installer's Guide
