N(1)
L1
L2
2
3
These diagrams are subject to change without notice, please refer to the diagram supplied with the unit.
N(1)
L1
L2
2
3
1
2
1
2

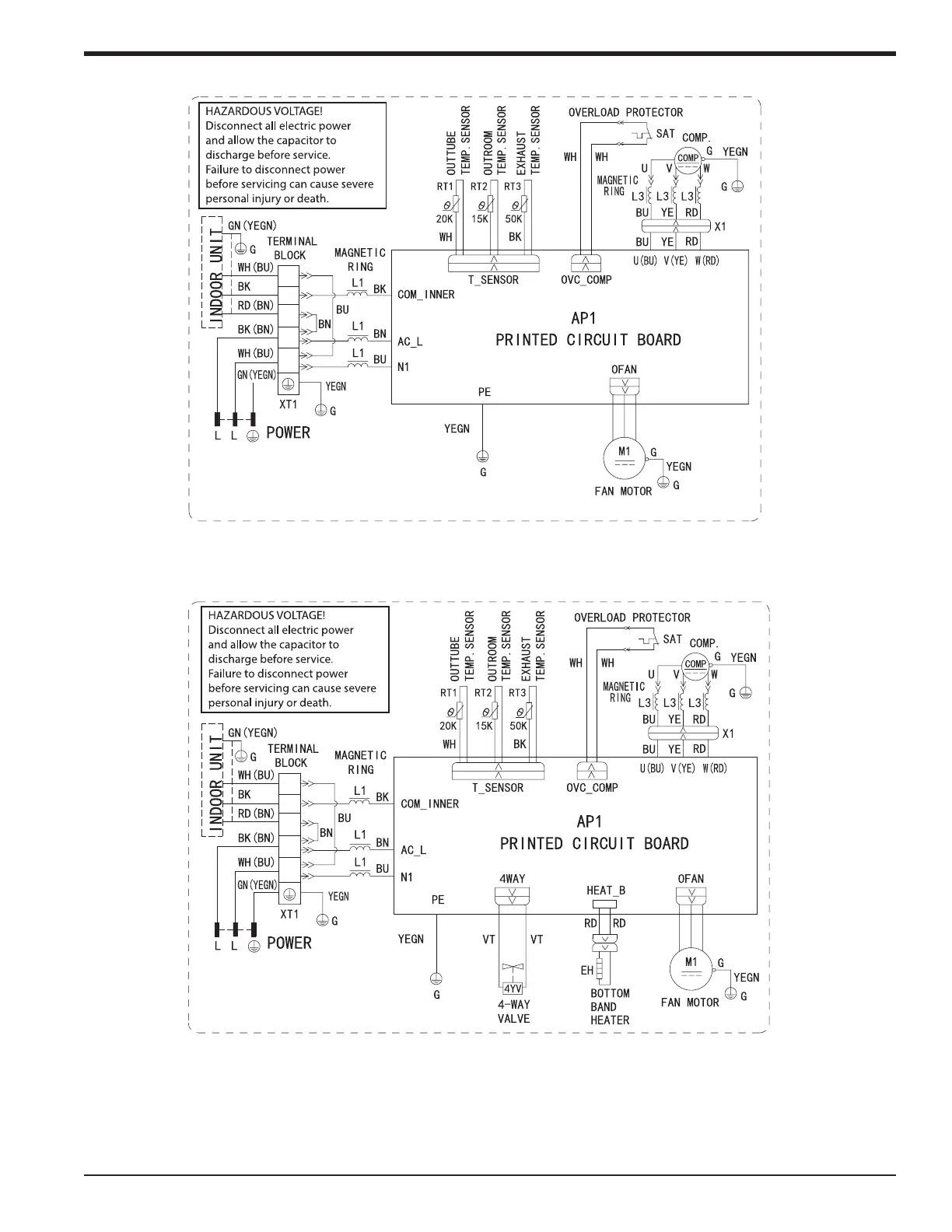

Outdoor Cooling Only Unit 18K-24K
Outdoor Heat Pump Only Unit 18K-24K
NOTE: The wiring diagrams in this guide are included as a reference. The manufacturer
has a policy of continuous product and product data improvement and reserves the right
to change design and specications without notice. Always check the unit nameplate and
wiring diagram for the actual unit requirements.
88-M4MHW17-1A-EN 33
Installer's Guide
