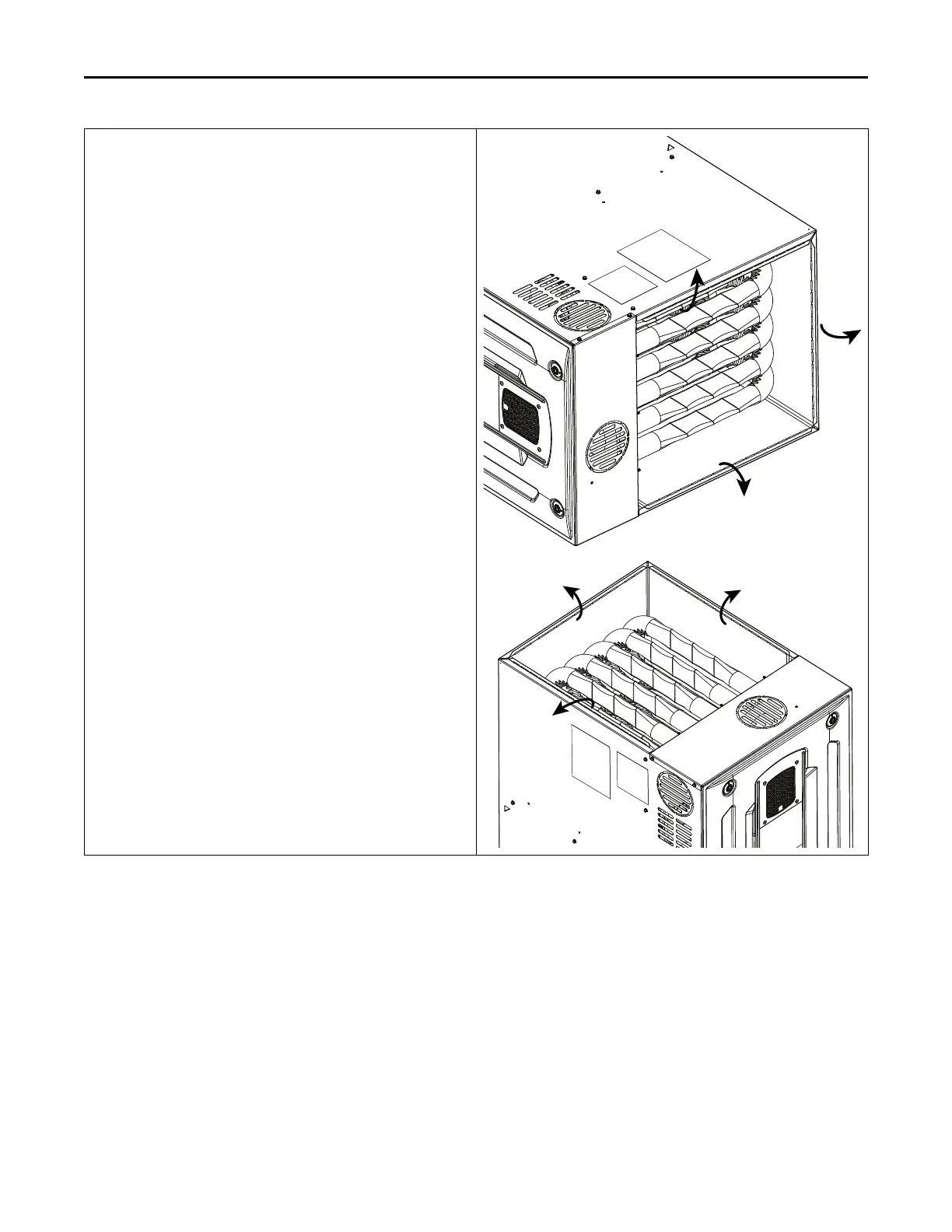

Horizontal Right and Downflow Furnace — no Coil
Important: A BAYBASE is required when installing the furnace on a
combustible floor.
1. Bend furnace flanges up.
2. Attach ducting.
3. Seal per local codes and requirements.
