TCONT802AS32DA TOUCH SCREEN AND TCONT803AS32DA TOUCH SCREEN WITH DEHUMIDIFICATION
Pub. No. 18-HD25D19-3
11 69-1790—3
INSTALLER SETUP
The comfort control works with many different system
types. To operate correctly, the comfort control must be
set up to operate the installed heating and/or cooling
system.

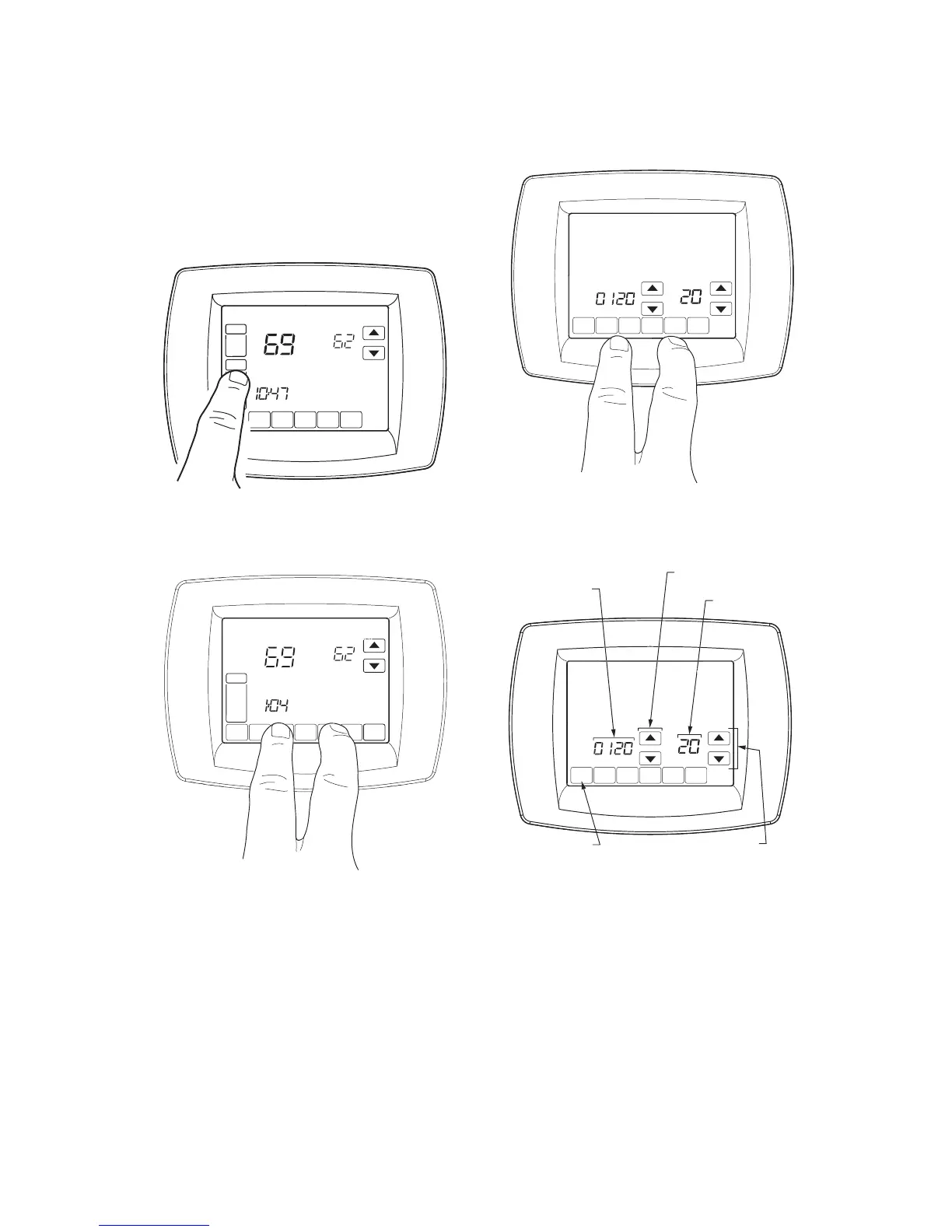

Follow these steps to enter the Installer Setup:
1. Be sure the comfort control is powered.
2. Press and release the System Key.
3. Press and hold the two blank keys on either side of
the center blank key for approximately five seconds
until screen changes.
4. Release the two blank keys when the screen on the
comfort control matches the screen below.
5. See screen below to review how the comfort control
keys are used during Installer Setup. See Table 4
for the Installer Setup Numbers and Settings.
6. Press the Done key to exit the Installer Setup
screen.
SCHED HOLD CLOCK SCREE
FAN
ON
AUTO
A
M
THU
SYSTEM
EM HEAT
OFF
COOL
Following
Schedule
Inside
Set To
M22647
D
O
N
E
CANC
MO
T
U
WE
TH
FR
SA
SU
S
Y
S
T
E
M
EM
HEAT
O
F
F
Followin
g
Sc
h
edu
l
e
In
s
i
de
Se
t T
o
M22648
D
O
N
E
M22649
DONE
O
MON
WED
THU
FRI
SA
T
A
A
T
SUN
INSTALLER
SETUP
NUMBER
CURRENT
SETTING
ADVANCE TO NEXT
INSTALLER SETUP
PRESS TO EXIT
INSTALLER SETUP
CHANGE THE
CURRENT
SETTING
M22650
A
U

Trane tcont802as32daa Specifications

General

Model	TCONT802AS32DAA
Type	Programmable Thermostat
Power Source	24V AC
Compatibility	Compatible with most HVAC systems
Programmability	7-day programmable
Temperature Range	45°F to 99°F (7°C to 37°C)
Humidity Control	Yes
Wi-Fi Capable	No
Warranty	5-year limited warranty
Stages	2 Heat / 2 Cool
Display	Touchscreen
