Trane tcont802as32daa User Manual

TCONT802AS32DA TOUCH SCREEN AND TCONT803AS32DA TOUCH SCREEN WITH DEHUMIDIFICATION
Pub. No. 18-HD25D19-3
69-1790—3 6

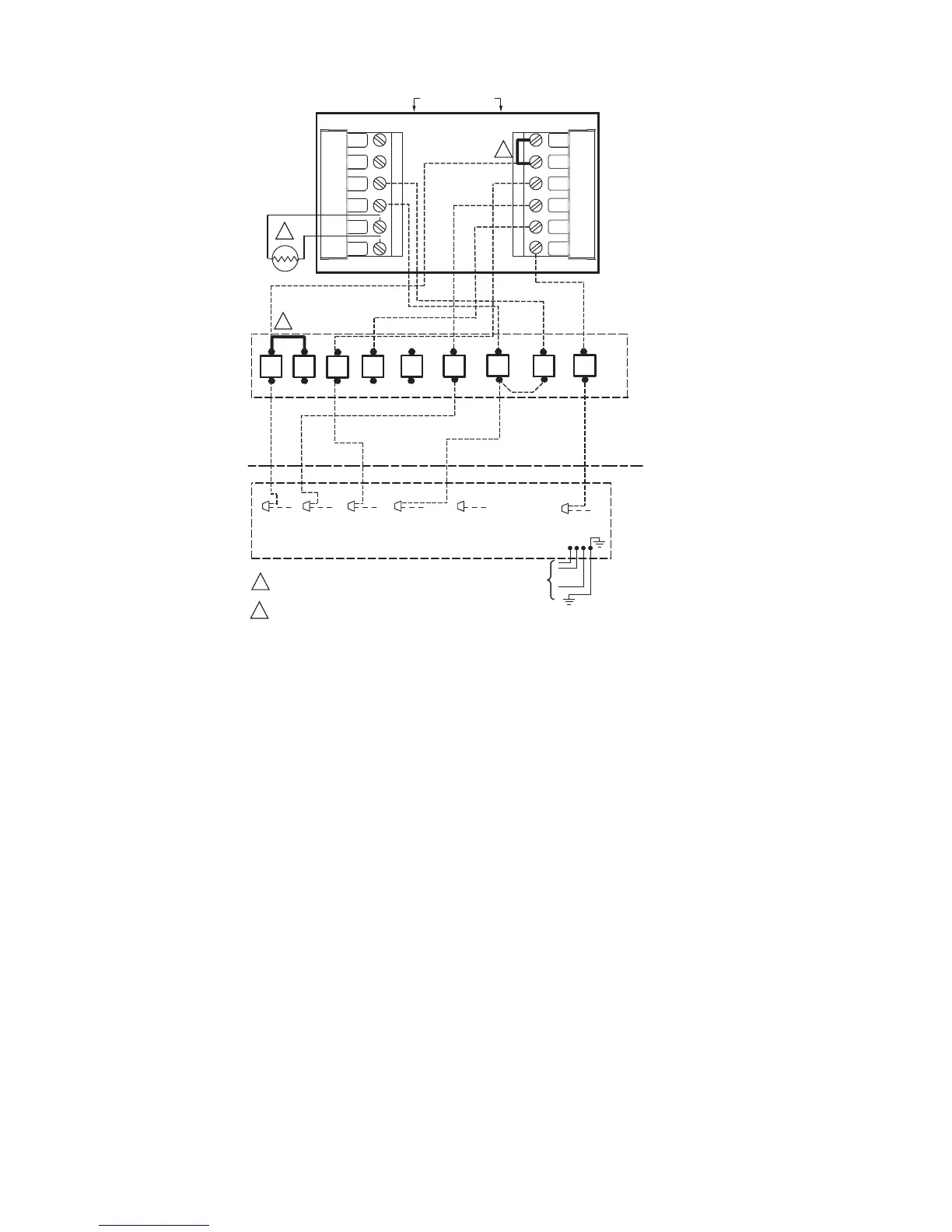

Fig. 13. Typical hookup of single-stage heat pump with two stage variable speed gas furnace
(2H/1C heat pump).
W1 W2
G
YB/C
R
T
1
1
2
FACTORY INSTALLED JUMPER.
OUTDOOR REMOTE SENSOR. WIRES MUST HAVE A
CABLE SEPARATE FROM THE THERMOSTAT CABLE.
Y
R O BR(T)BR/X2
OR BK
B
HEAT PUMP
O.D. SECTION
(SINGLE STAGE)
2
VARIABLE
SPEED
TWO STAGE
FURNACE
INDOOR
OUTDOOR
HEAT PUMP
RC
R
O
Y
G
B
Y2
F
X2
W1
S1
S2
TO POWER SUPPLY
PER LOCAL CODES
(3 PH
ONLY)
M24201
1
BK
O
Y
LO

Trane tcont802as32daa Specifications

General

Model	TCONT802AS32DAA
Type	Programmable Thermostat
Power Source	24V AC
Compatibility	Compatible with most HVAC systems
Programmability	7-day programmable
Temperature Range	45°F to 99°F (7°C to 37°C)
Humidity Control	Yes
Wi-Fi Capable	No
Warranty	5-year limited warranty
Stages	2 Heat / 2 Cool
Display	Touchscreen
