Trane TDH1B040A9241A - DH1 Outline Drawing, Upflow;Horizontal

6 18-CD29D1-11
Installer’s Guide
From Dwg. C341885 Rev. 7

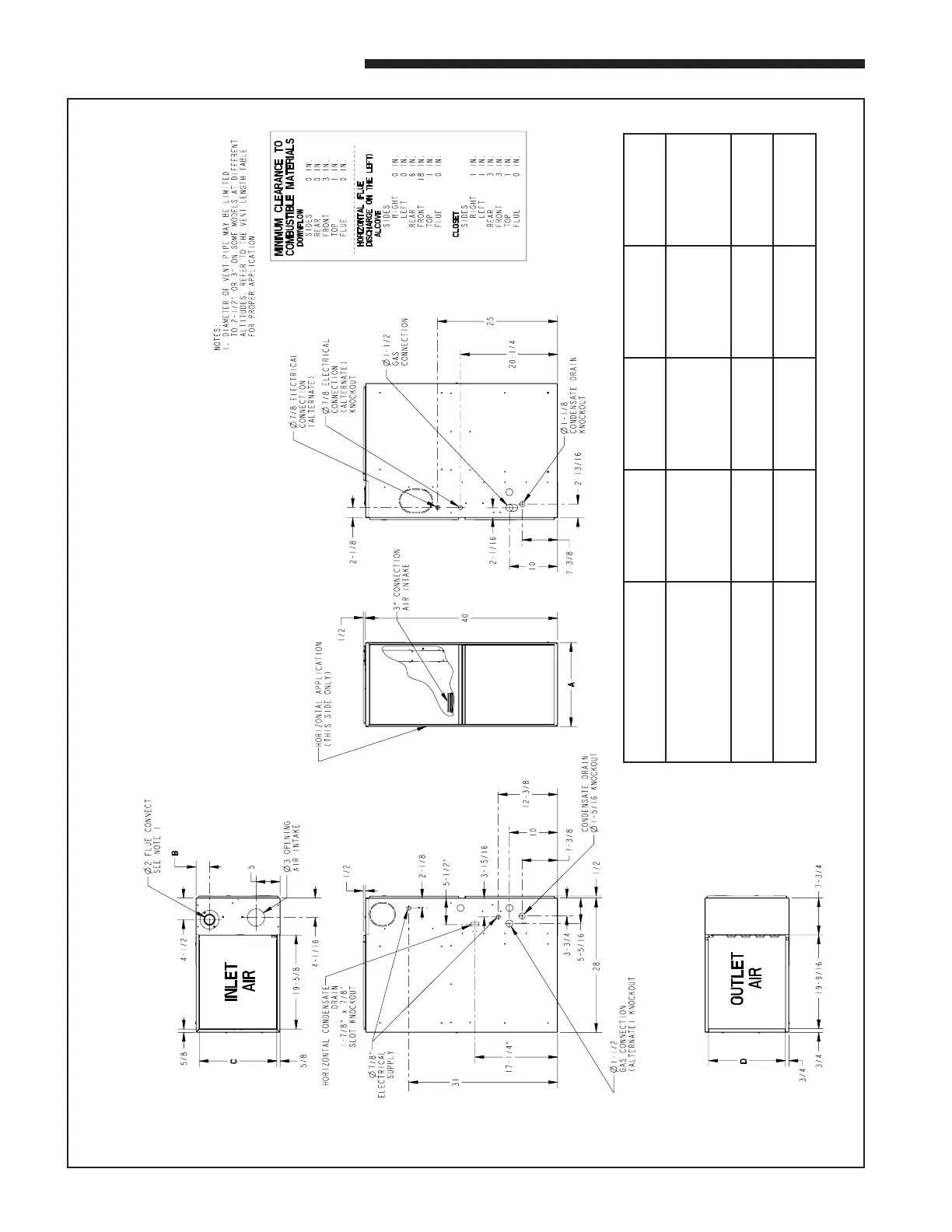

*DH1 OUTLINE DRAWING, DOWNFLOW / HORIZONTAL
(ALL DIMENSIONS ARE IN INCHES)
MODEL DIM "A" DIM"B" DIM "C" DIM "D"
*DH1B040A9241 *DH1B065A9421
17-1/2" 2-1/4" 16-1/4" 16"
*DH1C085A9481 21" 2-1/2" 19-3/4" 19-1/2" *DH1D110A9601 24-1/2" 2-15/16" 23-1/4" 23"
* May be "A" or "T" Part numbers can end in A-Z
