Pub. No. 22-1840-14

Ø 7/8” HOLE WITH PLUG

CONDENSATE DRAIN

1-3/4” X 2-13/32” CUTOUT

HORIZONTAL DRAIN

Ø 7/8” HOLE WITH PLUG

CONDENSATE DRAIN

(ALTERNATIVE)

28-1/”4

Ø 1-5/8” HOLE WITH PLUG

22-11/16”

Ø 1-5/8” HOLE WITH PLUG

NOTES:

1. DIAMETER OF VENT PIPE MAY BE LIMITED

TO2-1/2"OR3"ONSOMEMODELSATDIFFERENT

ALTITUDES. REFER TO THE VENT LENGTH TABLE

FOR PROPER APPLICATION.

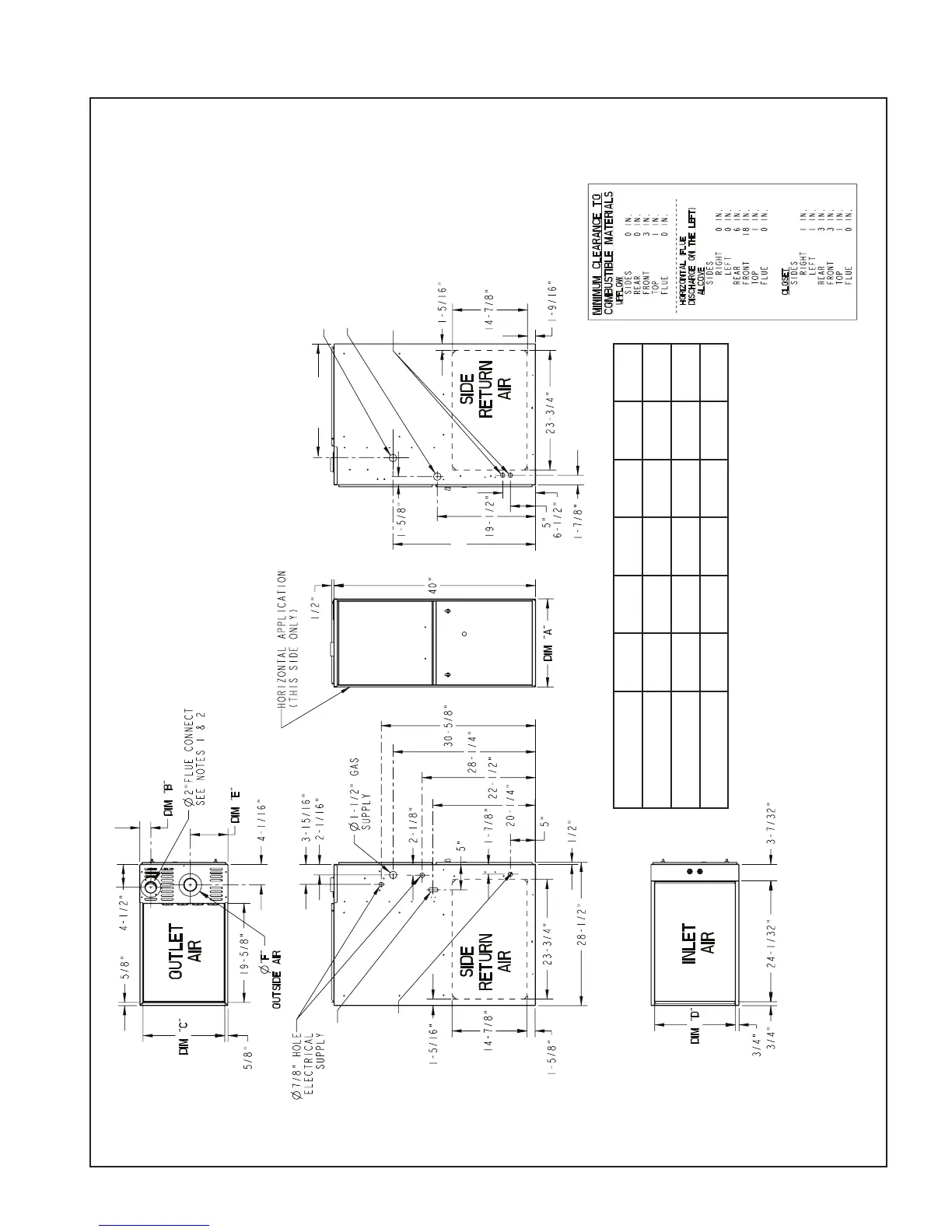

TUHM-ACV Outline Drawing

(ALL DIMENSIONS ARE IN INCHES)

MODEL

(SEE NOTE 1)

DIM "A" DIM "B" DIM "C" DIM "D" DIM "E" DIM "F"

*UHMB060ACV3VB

*UHMB080ACV3VB

17-1/2" 2-1/4" 16-1/4" 16" 7-1/2" 2"

*UHMC100AC4VB 21" 2-1/2" 19-3/4" 19-1/2" 9" 3"

*UHMD120AC5VB 24-1/2" 2-15/16" 23-1/4" 23" 10" 3"
