Trane TDHMB080ACV3VB - TUHM Wiring and Schematic Diagrams

21
Pub. No. 22-1840-14
Electrical Data

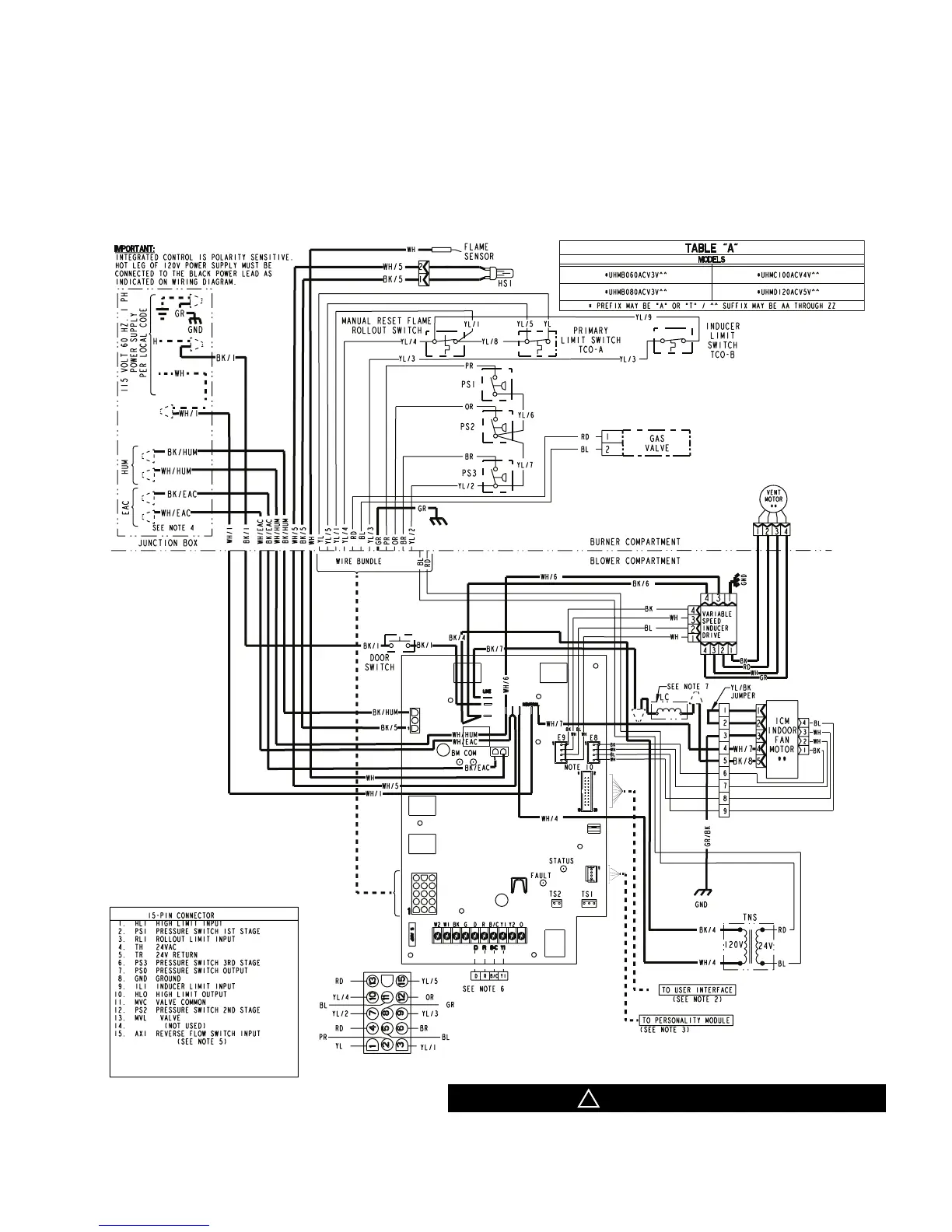

TUHM Wiring Diagram
▲
CAUTION
!
Label all wires prior to disconnection when servicing con-
trols. Wiring errors can cause improper and dangerous opera-
tion. Verify proper operation after servicing.
