Trane TDHMB080ACV3VB - Page 24

24
Pub. No. 22-1840-14

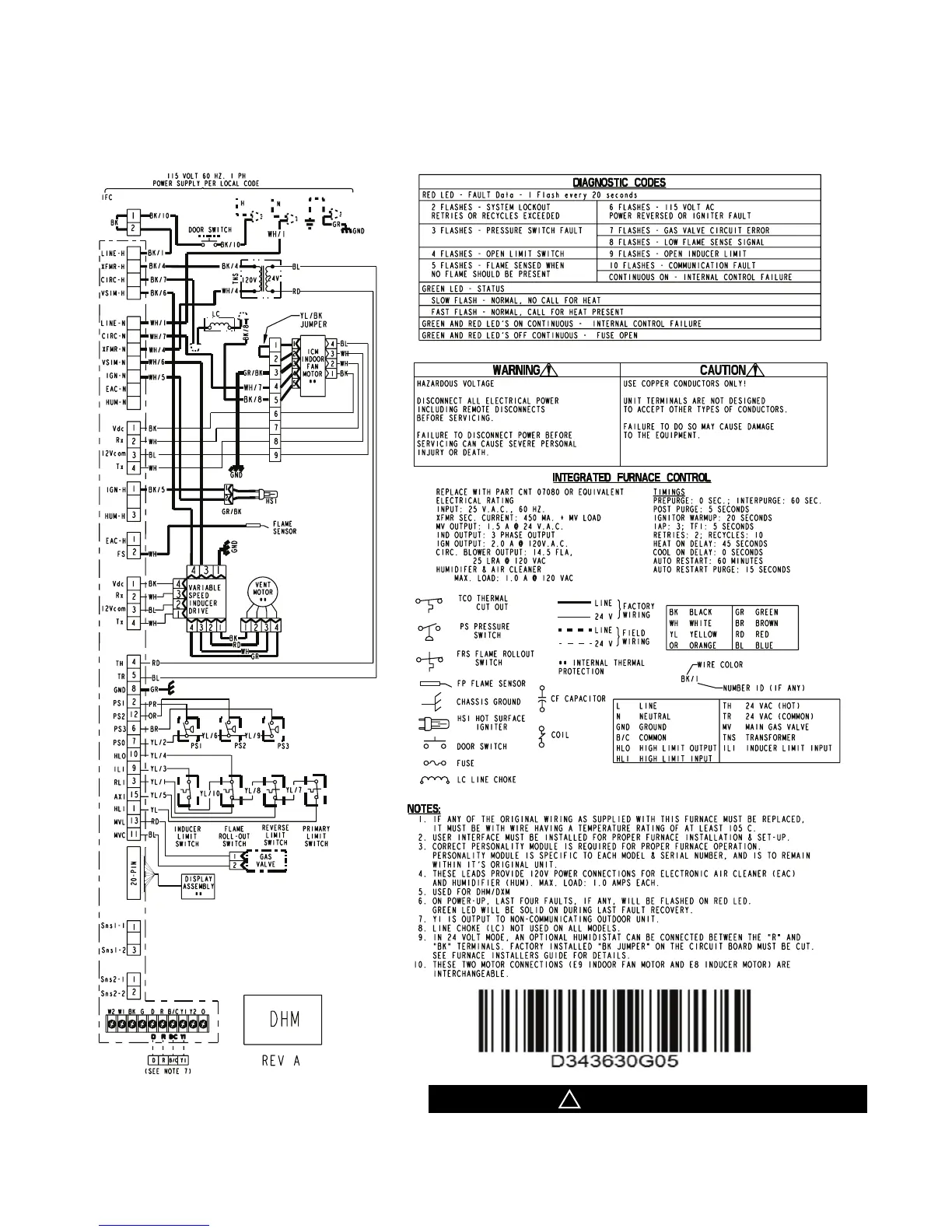

TDHM Schematic Diagram
Electrical
Data
▲
CAUTION
!
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
