Trane TDHMD120BCV5VB - TDHM Wiring Diagram

23
Pub. No. 22-1840-14
Electrical
Data

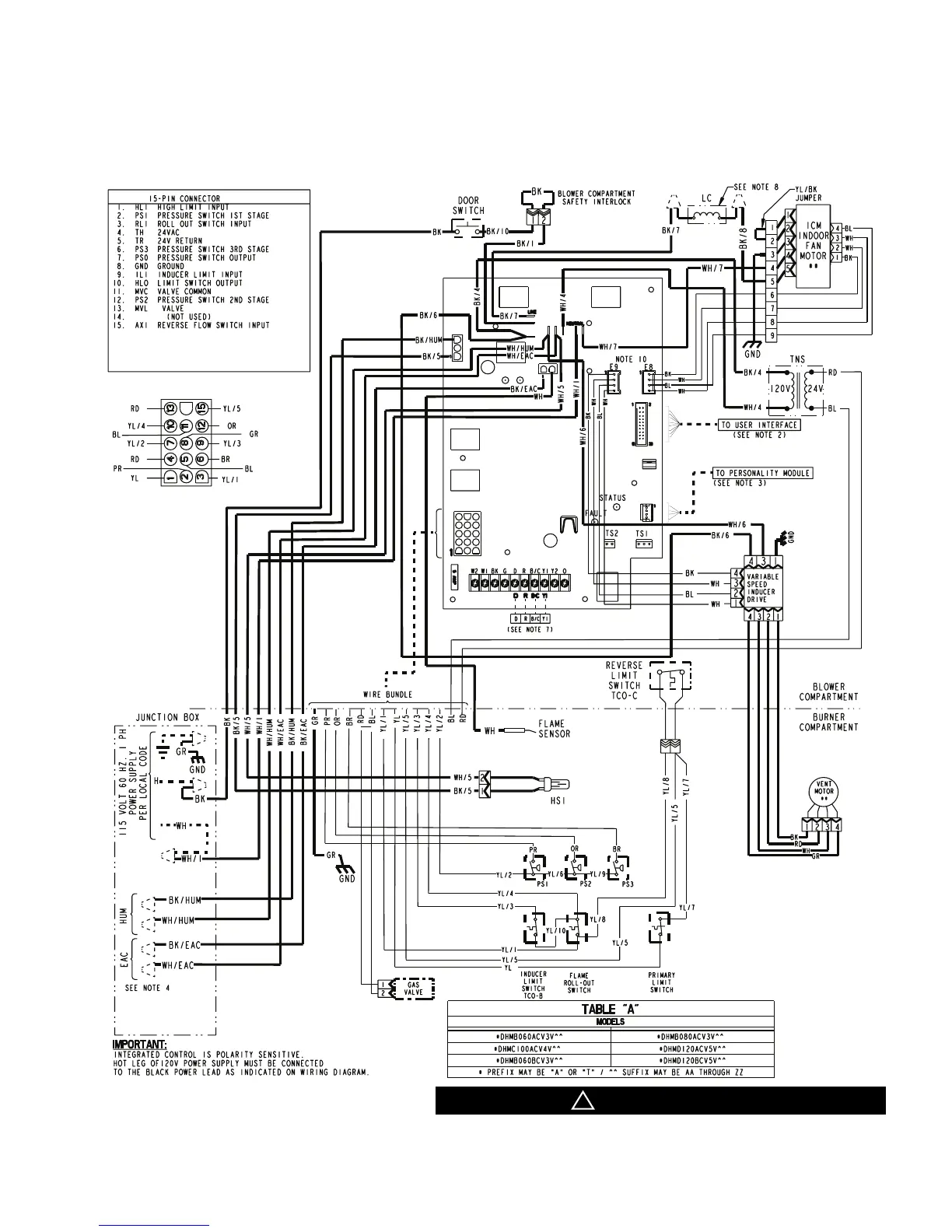

TDHM Wiring Diagram
▲
CAUTION
!
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
