6
RT-SVX42B-E4
Installation

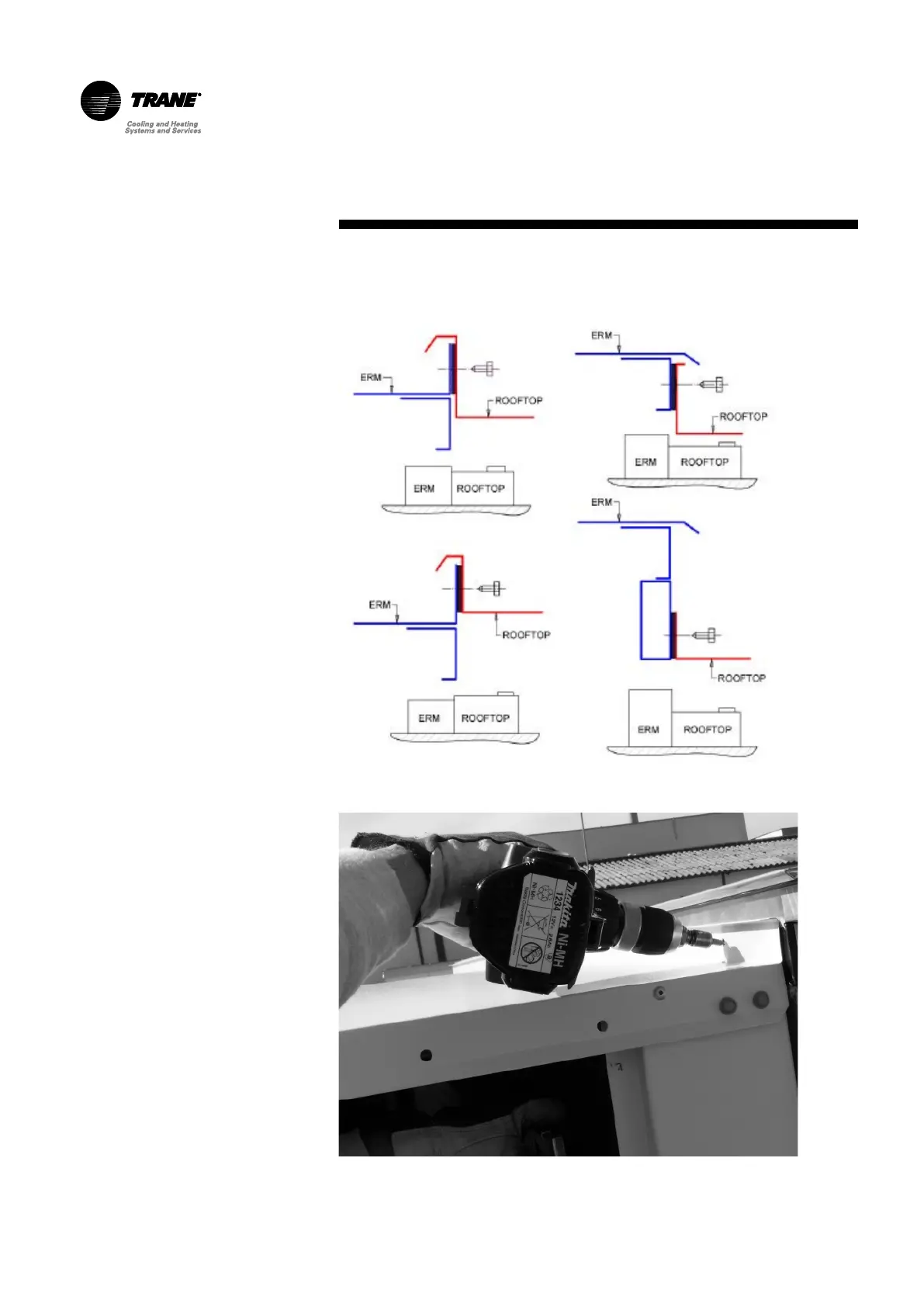

Fasten the
roof end
to the
ERM with
self-drilling screws
as shown
in Figure
5.
Figure 5a
-
Figure 5b
-
Run all
the ERM
cable (power
and actuator)
and transparent
hose (if
installed) into
the
rooftop fresh
air /
filter section.
Place the
fresh air
filter into
the filter
rack located
behind the
fresh air
inlet louver
of the
ERM.
5
7
