Device Connections
The Balancing Tool is designed primarily to support VAV air and water balancing tasks. However,
you can also perform limited operations for blower coils, unit ventilators, and water source heat
pumps. In addition, the Balancing Tool provides controller summary and controller status
information and lists alarms.
Connect to individual controllers in one of the following ways:
• Physically using a USB cable
• Through the Tracer® TU Adapter (Wired/ Wireless)
• Through System Controller pass-through or a LAN connection
You can also perform operations on multiple similar devices through the Facility View.
USB and Tracer TU Adapter Connections
The DDiirreecctt CCoonnnneeccttiioonn, TTUU AAddaapptteerr –– WWiirreedd, or TTUU AAddaapptteerr -- WWiirreelleessss radio button is pre-
selected on the Startup Task Panel according to the device you have plugged into your computer,
so you can click CCoonnnneecctt immediately.

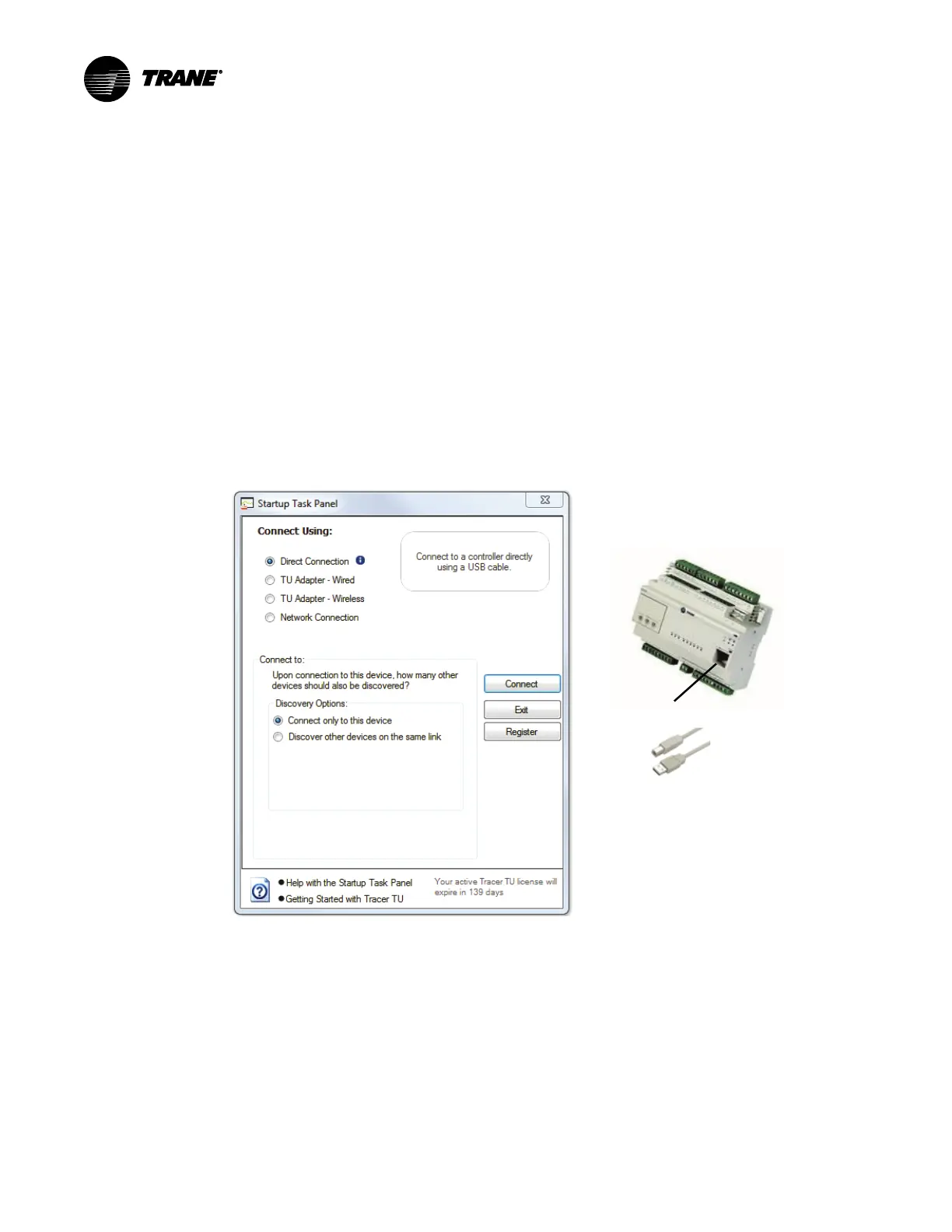

Figure 1. The Startup Task Panel
UC400 USB Port
Type A/B cable used
for direct connection
Tracer TU senses and
selects the connection
type you are using.
To Next Page
