Trane TUD2B060AFV32A - Page 18

18
PUB. NO. 22-1802-03
Field
Wiring
W14
OUTDOOR UNIT
(NO TRANSFORMER)
SEE
NOTE 6
SEE
NOTE 7
Y1/Ylo
SEE
NOTE 9
W14 JUMPER
SEE NOTE 9
From Dwg. B342020 Rev. 0
B/C
B/C
TO 115 V 1 PH.,
60 HZ., POWER
SUPPLY PER
LOCAL CODES
HUM SEE
NOTE 5

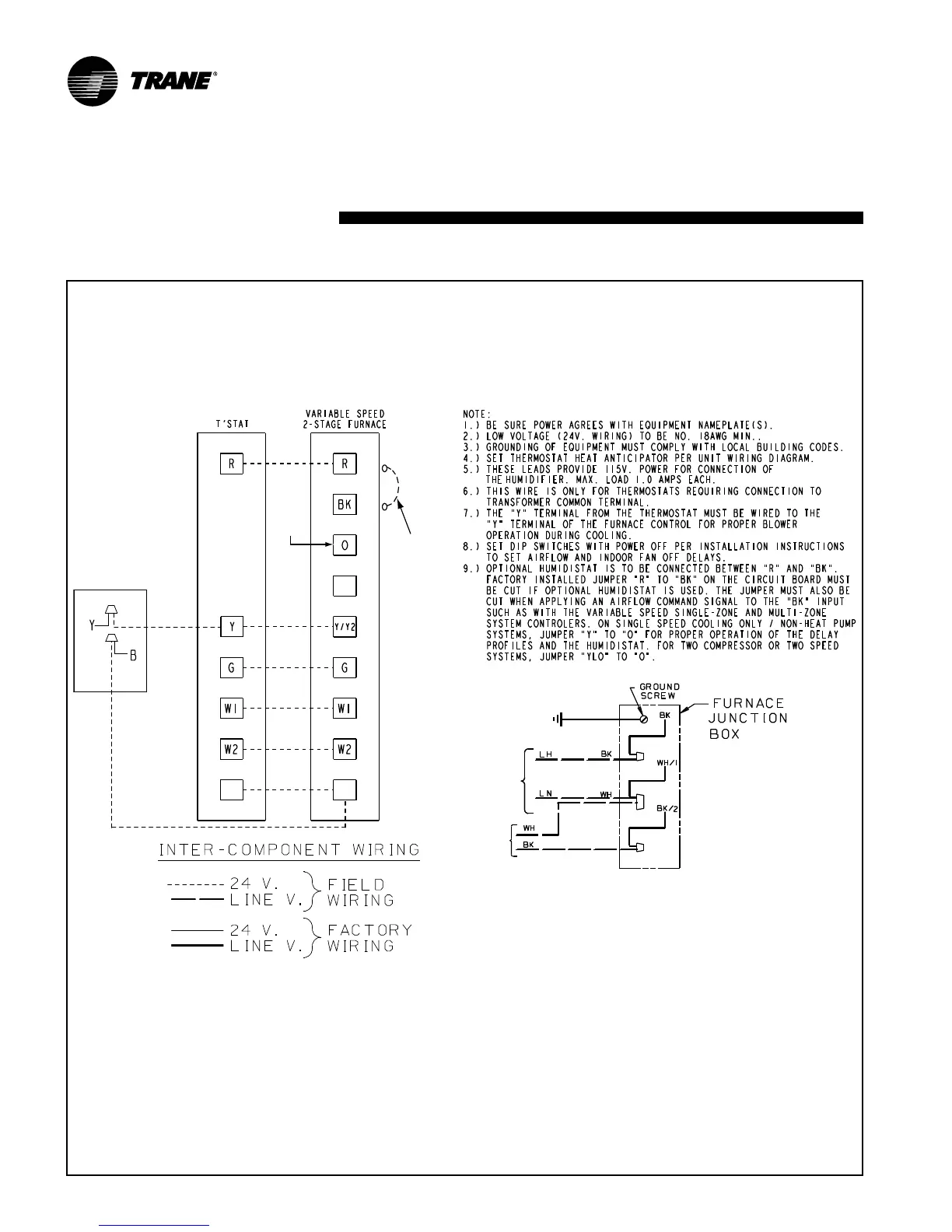

FIELD WIRING DIAGRAM FOR VARIABLE SPEED 2 STAGE FURNACE
2 STAGE HEATING, 1 STAGE COOLING
USING A 2 STAGE HEATING, 1 STAGE COOLING THERMOSTAT
(OUTDOOR SECTION WITHOUT TRANSFORMER)
