25
Pub. No. 22-1840-14

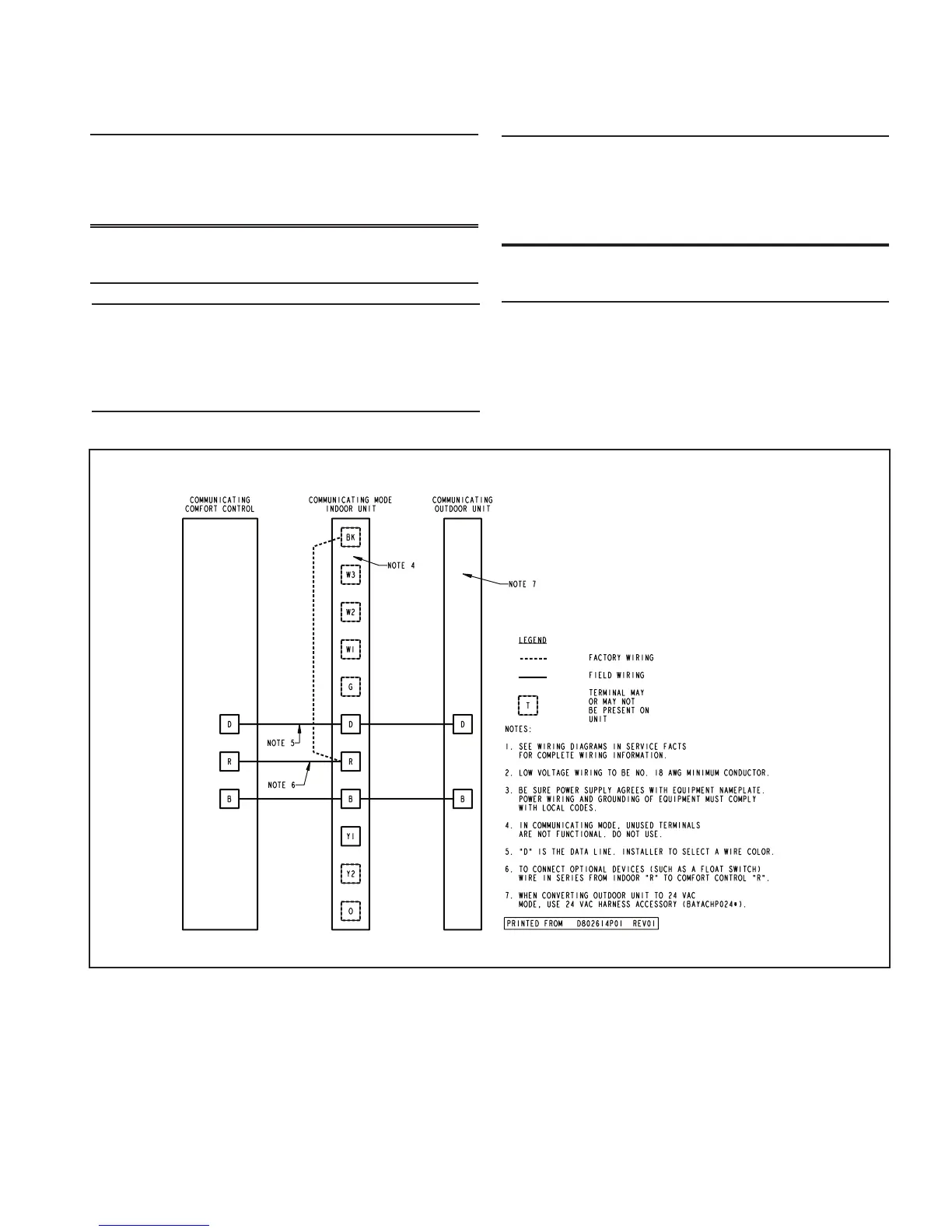

Communicating Indoor Unit with Communicating Comfort Control and Communicating Outdoor Unit
NOTE:
The maximum total cable length for the entire Comfort
Control communicating system is 500 ft. 18 AWG. The
maximum distance of any single cable from a trans-
former is 250 ft. 18 AWG.
NOTE:
When connecting an TFD whole house air cleaner with
this furnace, order BAYACCECOMM101.
NOTE:
The BAYACCECOMM101 must be used when
connecting an TFD whole house air cleaner to a
furnace in communicating mode. For 24 volt mode,
see the installation in the whole house air cleaner
Installer's Guide.
NOTE:
The BAYACCECOMM101 can be ordered through the
sales channels.
NOTE:
The B/C terminal will require three wires to be
connected. Rather than connecting the three wires to
the low voltage terminal strip, create a pigtail using a
short length of thermostat wire and a wire nut (field
supplied) to attach to the B/C terminal.
