Trane TurboTorch - Page 5

5RSP-PRC023-EN
Air Acetylene

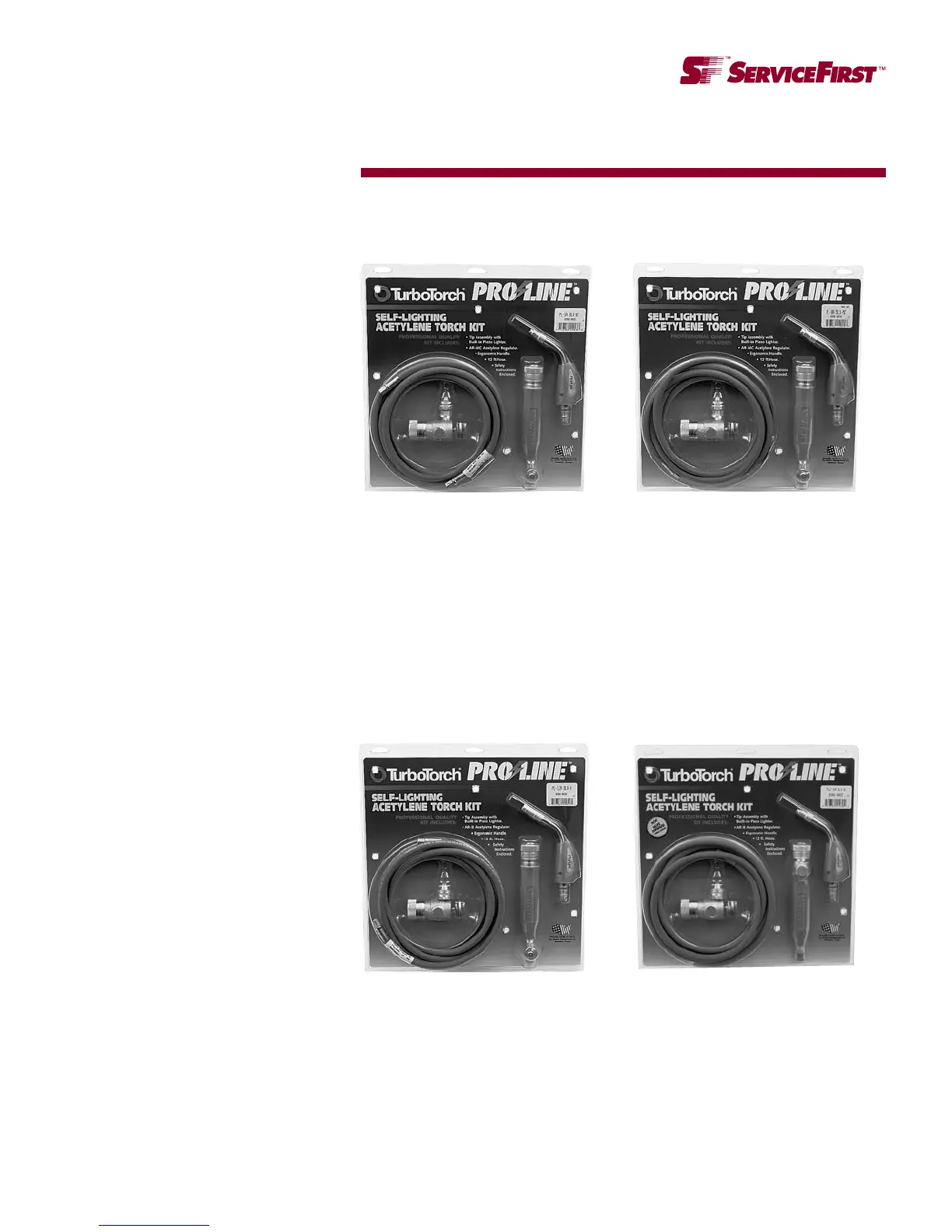

Swirl Air Acetylene Kits
KIT08339
PL-12ADLX-B (0386-0836)
Components:
• AR-B (CGA-520) Regulator
• G4 Handle
• AH-12 Hose
• PL-12A Tip
• Soft solders to 3-1/2 in. (90 mm)
• Silver brazes to 2 in. (50 mm)
• “B” Tank connections
• Instruction manual
KIT08338
PL-5ADLX-MC KIT (0386-0832)
Components:
• AR-MC (CGA-200) Regulator
• G4 Handle
• AH-12 Hose
• PL-5A Tip
• Soft solders to 1-1/2 in. (40 mm)
• Silver brazes to 3/4 in. (20 mm)
• “MC” Tank connections
• Instruction manual
KIT08308
PL-5ADLX-B Kit (0386-0833)
(Not Shown) “B” Tank connection
KIT08309
PL-8ADLX-MC Kit (0386-0834)
Components:
• AR-MC (CGA-200) Regulator
• G4 Handle
• AH-12 Hose
• PL-8A Tip
• Soft solders to 2 in. (50 mm)
• Silver brazes to 1 in. (30 mm)
• “MC” Tank connections
• Instruction manual
KIT08351
PL-8ADLX-B Kit (0386-0835)
(Not Shown) “B” Tank connection
KIT08342
PLF-5A-DLX-B (0386-0865)
KIT08343
PLF-8A-DLX-MC (0386-0866)
(Not Shown)
KIT08344
PLF-8A-DLX-B (0386-0867)
(Not Shown)
