Dimensions

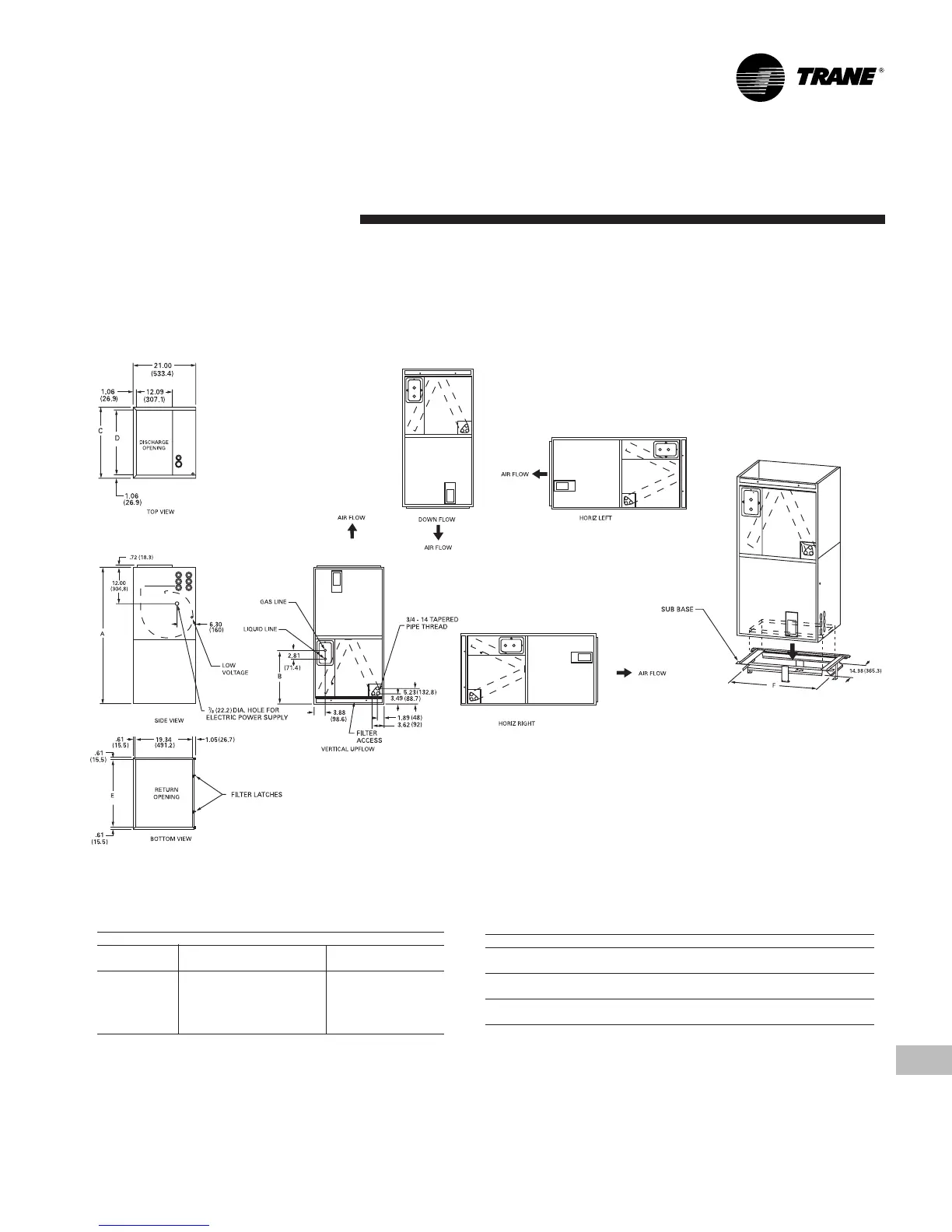

TWE030-050C Outline Drawing
ALL DIMENSIONS ARE IN INCHES (MM)
MINIMUM UNIT CLEARANCE SALE
TO COMBUSTIBLE SERVICE CLEARANCE
MATERIAL (REQUIRED) (RECOMMENDED)
SIDES 0 (0) 2 (50.8)
FRONT 0 (0) 21 (533.4)
BACK 0 (0) 0 (0)
INLET DUCT 0 (0) 1 (25.4)
OUTLET DUCT 1 (25.4)
MODEL NO. A B C D E F
TWE030CA4 43.00 15.57 21.50 19.50 20.28 21.63 FCCV
(1092.2) (395.5) (761.1) (495.3) (515.1) (549.4)
TWE040CA4 51.75 24.32 23.50 21.50 22.28 23.63 FCCV
(1134.5) (617.7) (596.9) (761.1) (565.9) (600.2)
TWE050CA5 57.90 30.47 23.50 21.50 22.28 23.63 TXV
(1470.7) (773.9) (596.9) (761.1) (565.9) (600.2)
FLOW
CONTROL
