18-CD30D1-12 29
Installer’s Guide

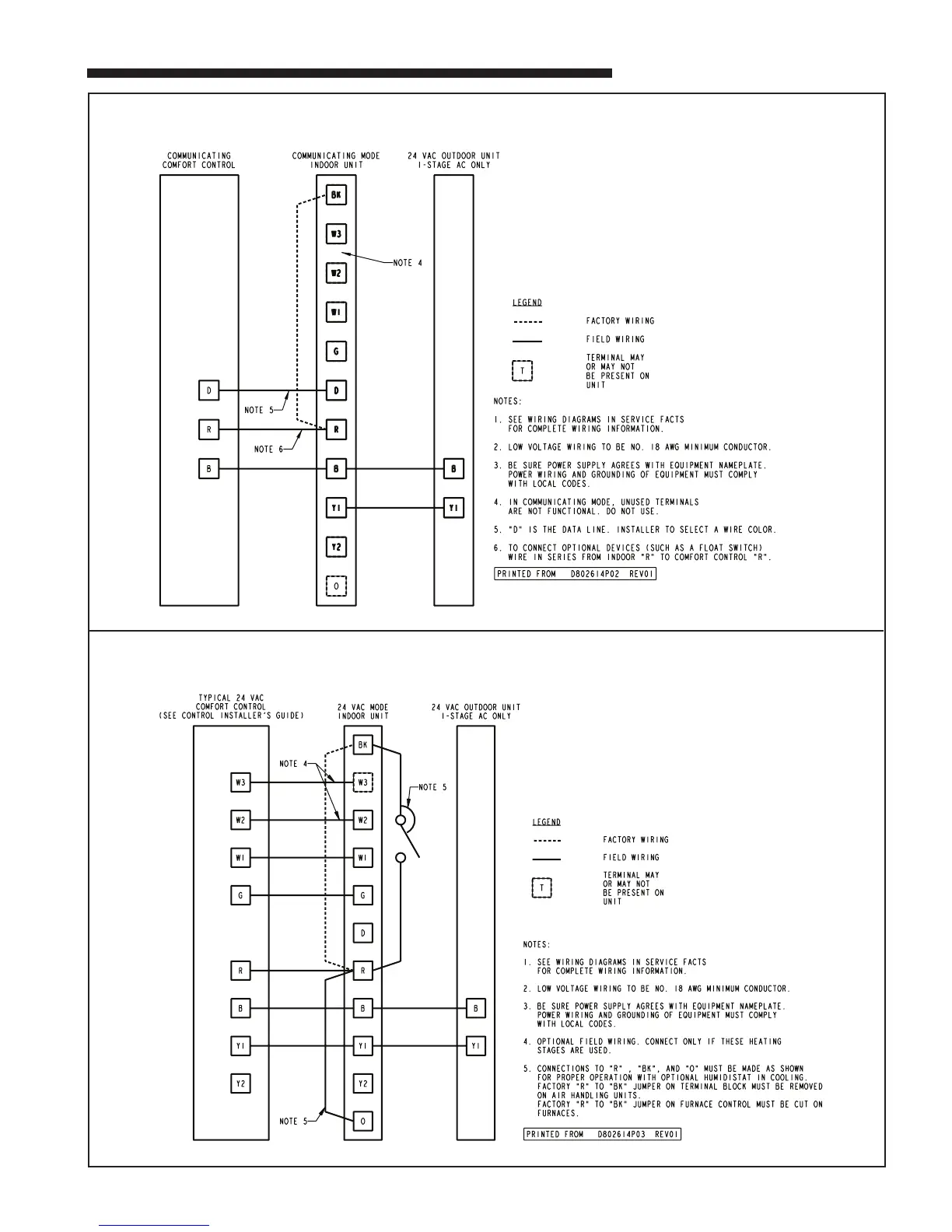

FIELD WIRING DIAGRAMS
41B - Communicating Indoor Unit with Communicating Comfort Control and 24VAC Single Stage Cooling
41C - 24 VAC Mode Indoor Unit with 24 VAC Comfort Control and 24VAC Single Stage Cooling
