Trane XR 80 TUD1A060A9361A - Field Wiring Diagrams; Heating Only Wiring Diagram; Heating;Cooling Wiring Diagram

12
Pub. No. 22-1640-13
Field
Wiring

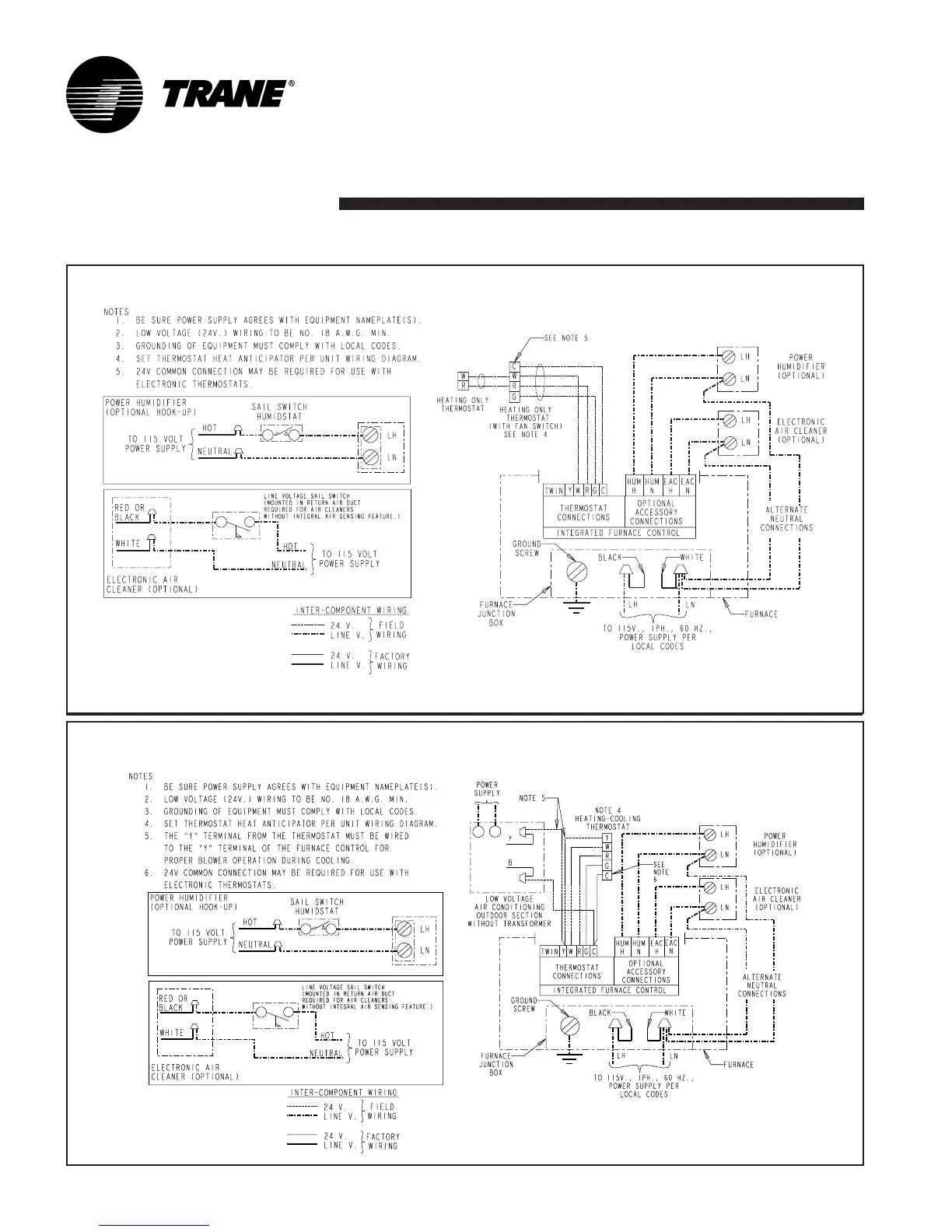

FIELD WIRING DIAGRAM FOR HEATING ONLY
FIELD WIRING DIAGRAM FOR SINGLE STAGE HEATING/COOLING
(OUTDOOR SECTION WITHOUT TRANSFORMER)
From Dwg.. 21B341437 Rev. 1
From Dwg.. 21B341436 Rev. 1
