Trane XR 80 TUD1B080A9361A - Electrical Data and Diagrams; Wiring Diagram for Gas Furnaces; Integrated Furnace Control (IFC) Details; Diagnostic Codes and Indicators

16 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

15

Pub. No. 22-1640-13

Electrical

Data

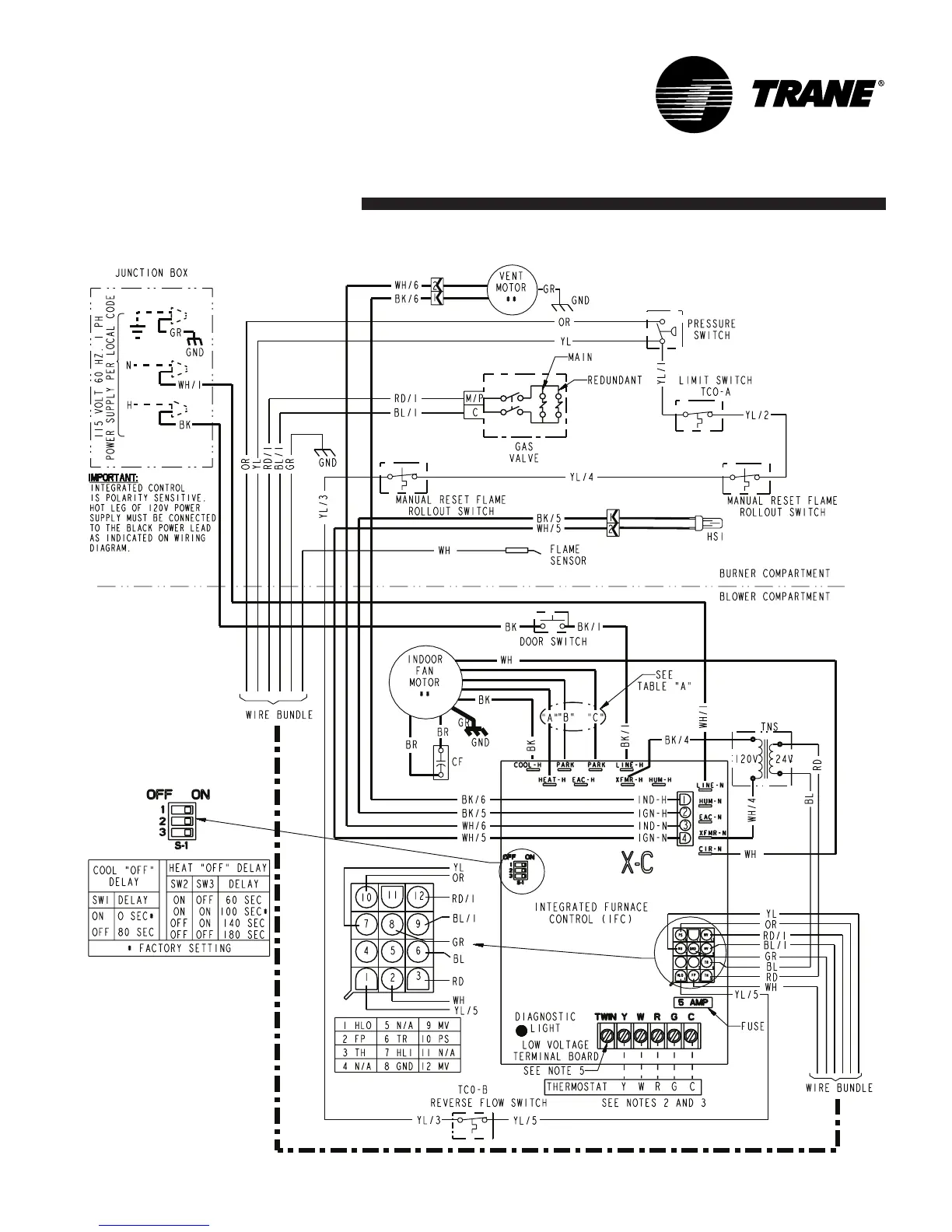

WIRING DIAGRAM FOR GAS FURNACES
