From Dwg. 21C340574 Rev. 12

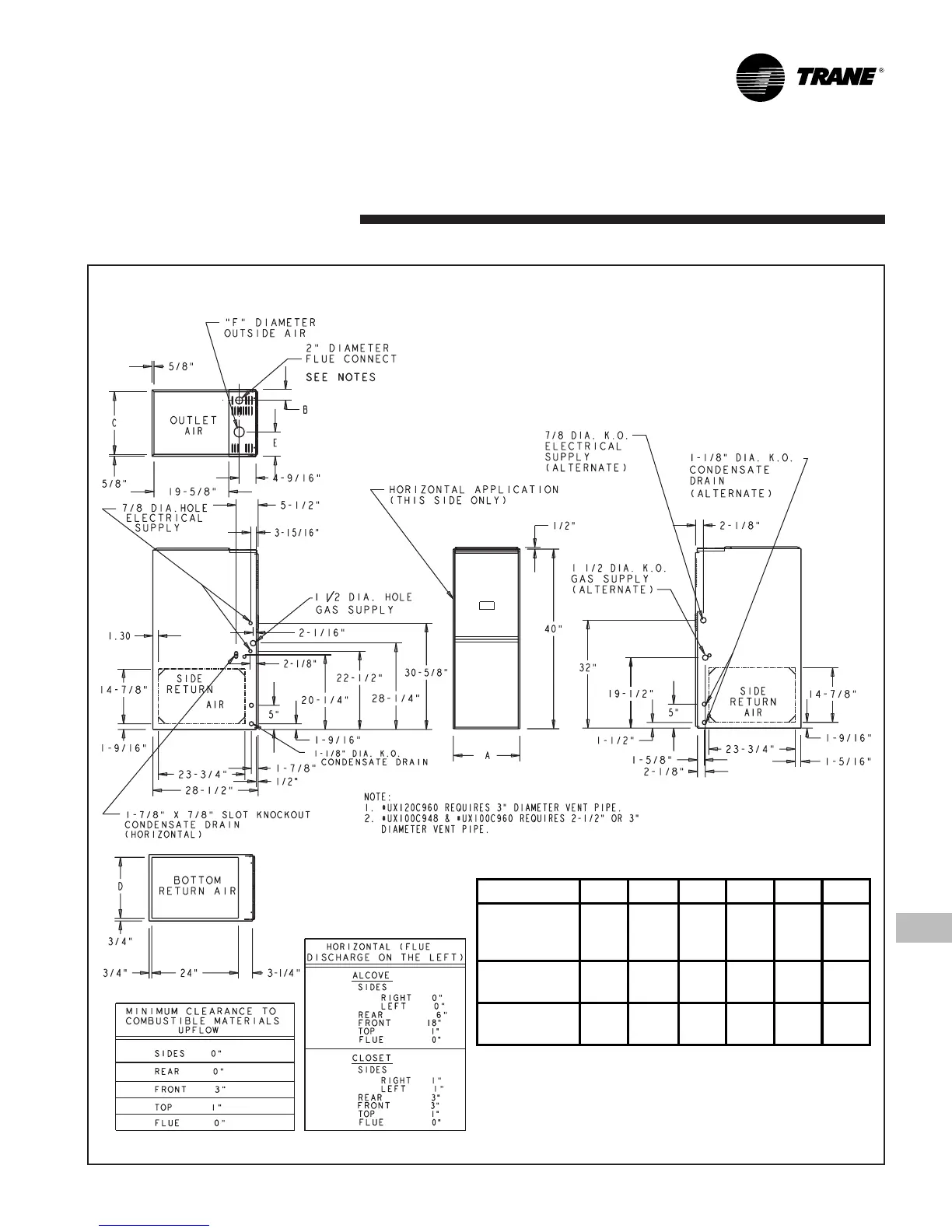

TUX-C-D Outline Drawing
(ALL DIMENSIONS ARE IN INCHES)
Dimensions
MODEL A B C D E F
TUX040C924
TUX060C936
TUX080C942
17-1/2" 2-1/4" 16-1/4" 16" 7-1/2" 2"
TUX080C960
TUX100C948
21" 2-1/2" 19-3/4" 19-1/2" 9" 3"
TUX100C960
TUX120C960
24-1/2" 2-15/16" 23-1/4" 23" 10" 3"
