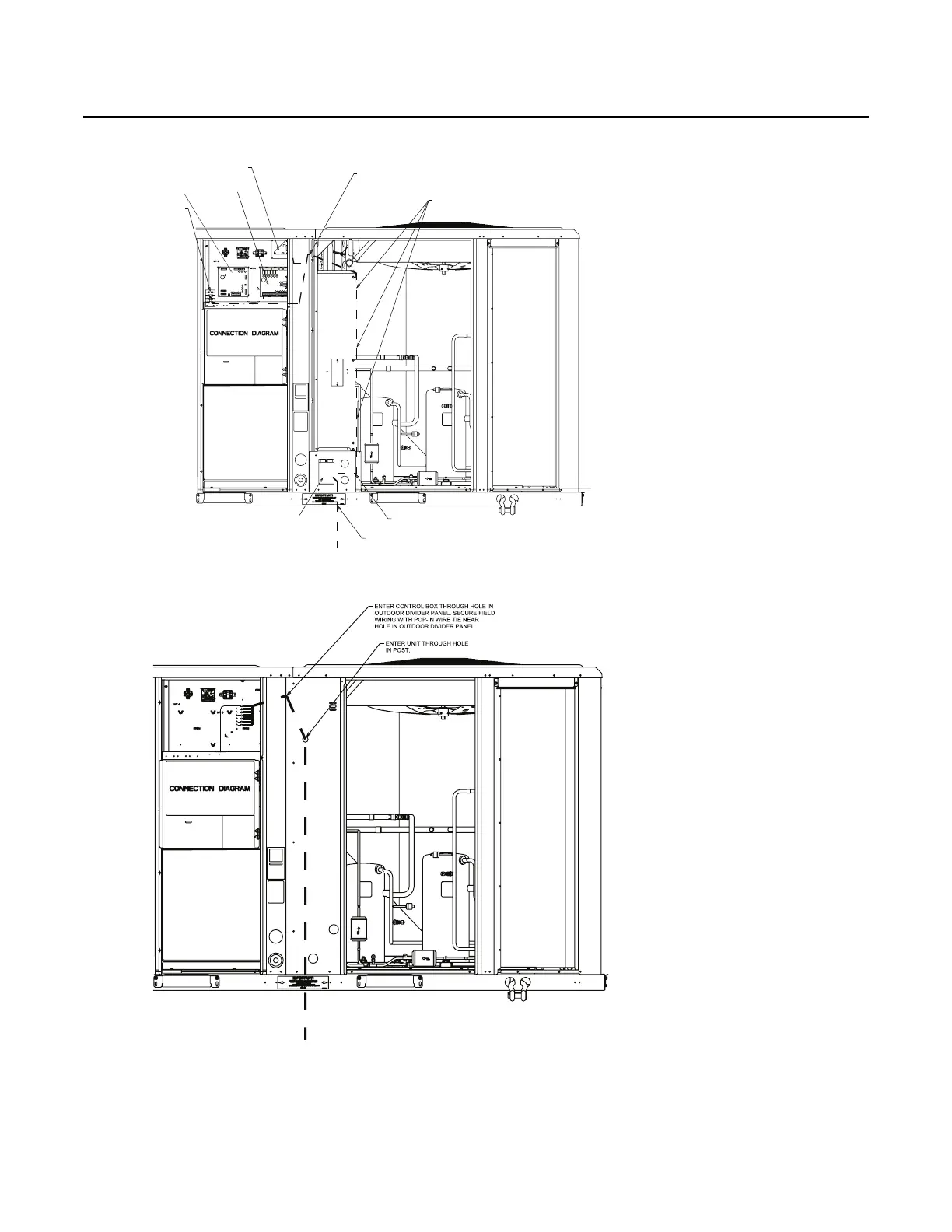

Figure 68. ReliaTel™ (with TBUE) control customer wire routing (10 ton high efficiency)
COMMUNICATION
INTERFACE (COMM)
REFRIGERATION
MODULE (RTRM)
LOW-VOLTAGE
TERMINAL BOARD
(LTB)
ENTER CONTROL BOX THROUGH HOLE IN
OUTDOOR DIVIDER PANEL. SECURE FIELD
WIRING WITH POP-IN WIRE TIE NEAR
HOLE IN OUTDOOR DIVIDER PANEL.
ROUTE FIELD WIRING ALONG SIDE
OF TBUE WRAPPER. SECURE WITH
SCREW-IN WIRE TIES.
ReliaTel OPTIONS
MODULE (RTOM)
EXIT TBUE ENCLOSURE THROUGH
HOLE IN WRAPPER.
ENTER UNIT THROUGH
THE BASE.
UNPOWERED
CONVENIENCE
OUTLET
Figure 69. Electromechanical (without TBUE) control customer wire routing (10 ton high efficiency)
