Dimensions and Weights
20 RT-SVX21AC-EN

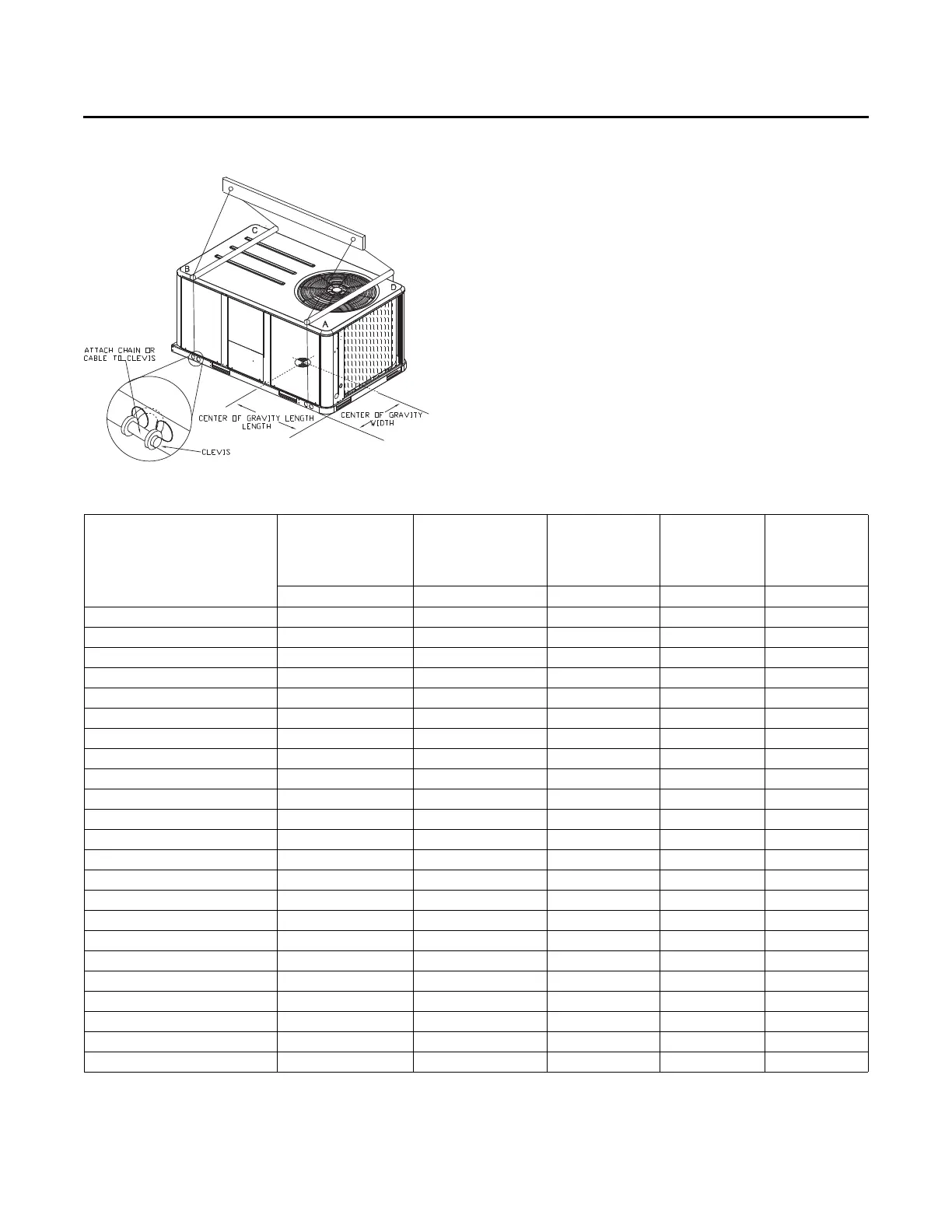

Figure 3. Rigging and center of gravity
Table 4. Factory installed options (fiops)/accessory net weights (lbs)
(a),(b)
YSC036G-060G
YHC036E, YHC037E
YHC047E-067E
YHC048E-060E
YHC048F-060F
YSC072H-102H
YHC072E/F
YSC120H
YHC074F-102F YHC120F
Net Weight Net Weight Net Weight Net Weight Net Weight
Accessory 3 to 5 Tons 4 to 5 Tons 6 to 8.5 Tons 6, 7.5, 8.5, 10 10
Barometric Relief 7 10 10 10 10
Belt Drive Option (3 phase only) 31 31 — — —
Coil Guards 12 20 20 20 30
Economizer 26 36 36 36 36
Electric Heaters
(c)
15 30 30 44 50
Hinged Doors 10 12 12 12 12
Low Leak Economizer 70 91 91 91 91
Ultra Low NOx Gas Furnace
(d)
22 22 — — —
Manual Outside Air Damper 16 26 26 26 26
Motorized Outside Air Damper 20 30 30 30 30
Novar Control 8 8 8 8 8
Oversized Motor 5 8 8 — —
Powered Convenience Outlet 38 38 38 38 50
Powered Exhaust 40 40 80 80 80
Reheat Coil 12
(e)
14 15 20
(f)
30
Roof Curb 61 78 78 78 89
Smoke Detector, Supply 5 5 5 5 5
Smoke Detector, Return 7 7 7
7 7
Stainless Steel Heat Exchanger
(g)
4 6 6 6 6
Through-the-Base Electrical 8 13 13 13 13
Through-the-Base Gas 5 5 5 5 5
Unit Mounted Circuit Breaker 5 5 5 5 5
Unit Mounted Disconnect 5 5 5 5 5
(a) Weights for options not listed are <5 lbs.
(b) Net weight should be added to unit weight when ordering factory-installed accessories.
(c) Applicable to cooling units only.
(d) Applicable to YHC037E, YHC047E and YHC067E models.
(e) Reheat weight here is only applicable to YHC036E models.
(f) Reheat weight for this value only applicable to
7.5 and 8.5 T
on High Efficiency “F” models.
(g) Applicable to Gas/Electric units only.
