Installation
42 RT-SVX21AC-EN

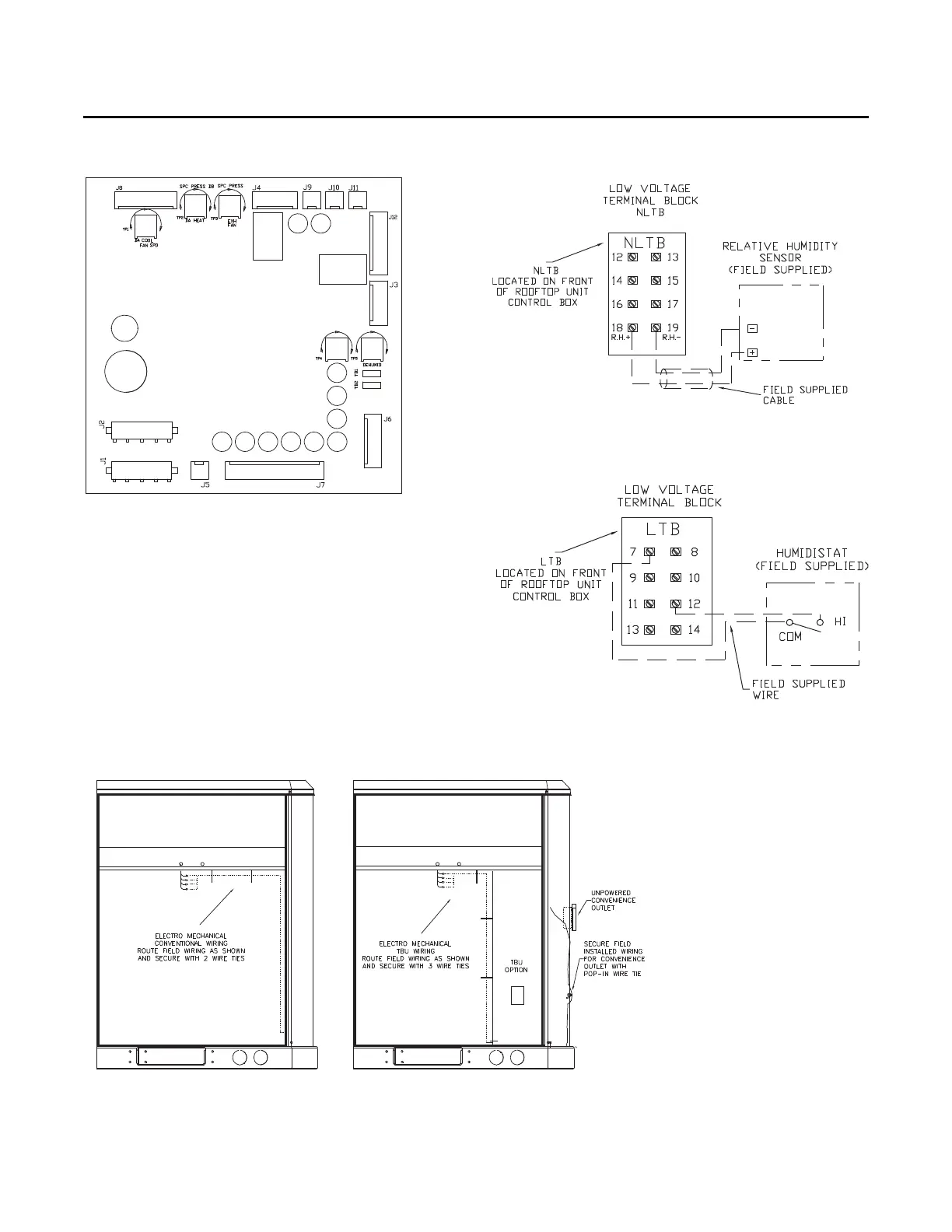

Figure 62. ReliaTel™ options module (RTOM board) Figure 63. ReliaTel™ relative humidity sensor
(dehumidification option)
Figure 64. ReliaTel™ humidistat (dehumidification
option)
Figure 65. Electromechanical control customer low voltage routing (all units except 10 ton high efficiency)
