Installation
RT-SVX21AC-EN 47

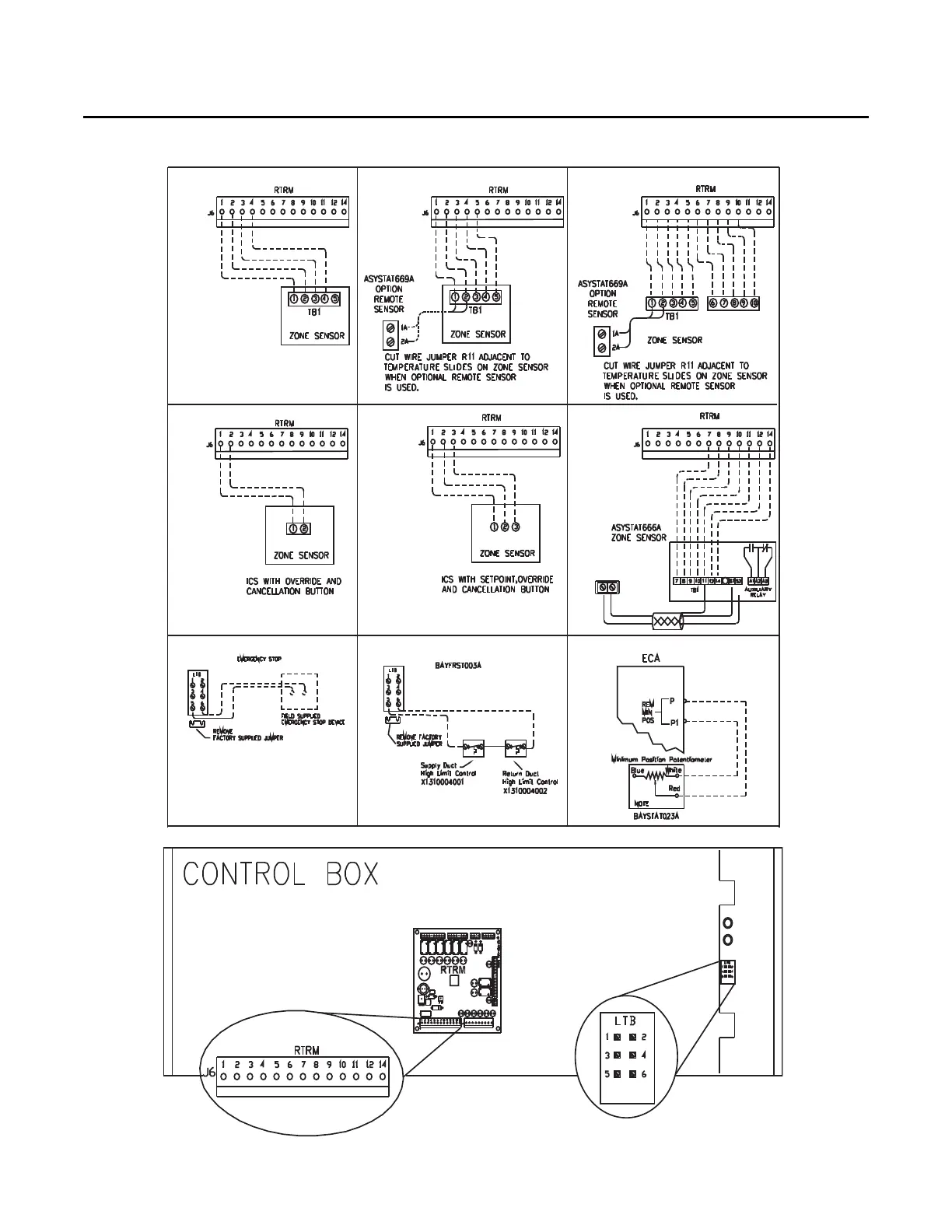

Figure 72. Typical field wiring diagrams for optional controls (ReliaTel™ only)
BAYSENS075*
BAYSENS075*
BAYSENS119*
BAYSENS110*
BAYSENS108*
BAYSENS106*
BAYSENS073* BAYSENS074*
BAYSENS075*
ASYSTAT669A
OPTIONAL REMOTE SENSOR
