Installation
46 RT-SVX21AC-EN
Note: Wiring pin numbers are for reference only. There
are multiple smoke detector systems that could
have differently numbered pins. For correct wiring
details, please refer to the specific smoke detector
literature that accompanied this unit.

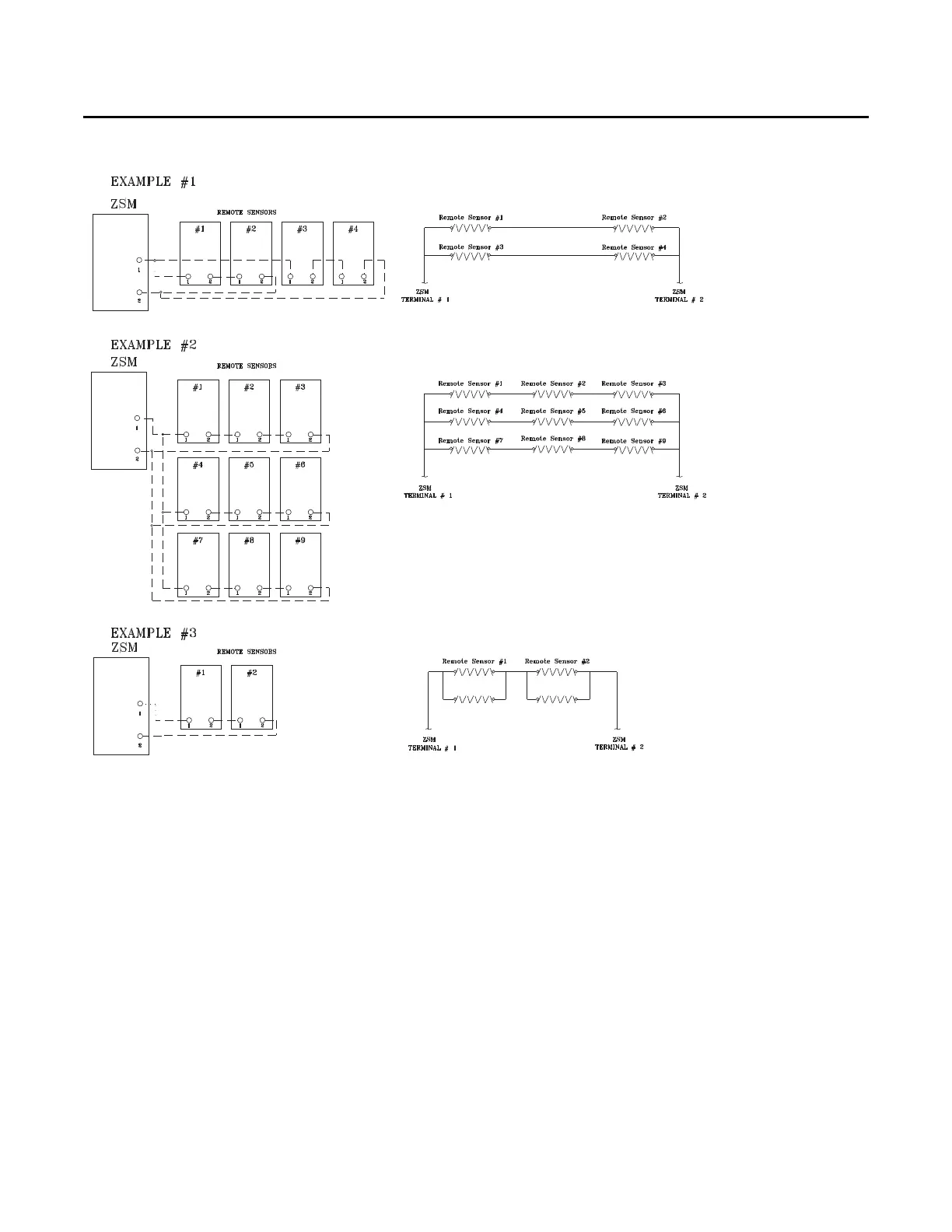

Figure 71. Examples
