How to Remove the Traction Belt
✔ Remove the belt protection (fig 3).
✔ Loosen the belt tension screw (fig. 4).
✔ Remove the belt from the front pulley of
the transmission unit.
✔ To remove the belt from the rear pulley,
slide the belt over the blade end (fig. 5).
✔ To assemble the traction belt, invert the
previous steps.
✔ Adjust the pulley tension by tightening the
tension screw.
✔ Replace the belt protection (fig. 3).
✔ Before you start mowing the grass, make
sure the traction system and the mower
will stop properly. If the traction system
will not stop, take it to a TRAPP
authorized service store.
Attention!
Before removing the belt, disconnect
the spark plug wire.

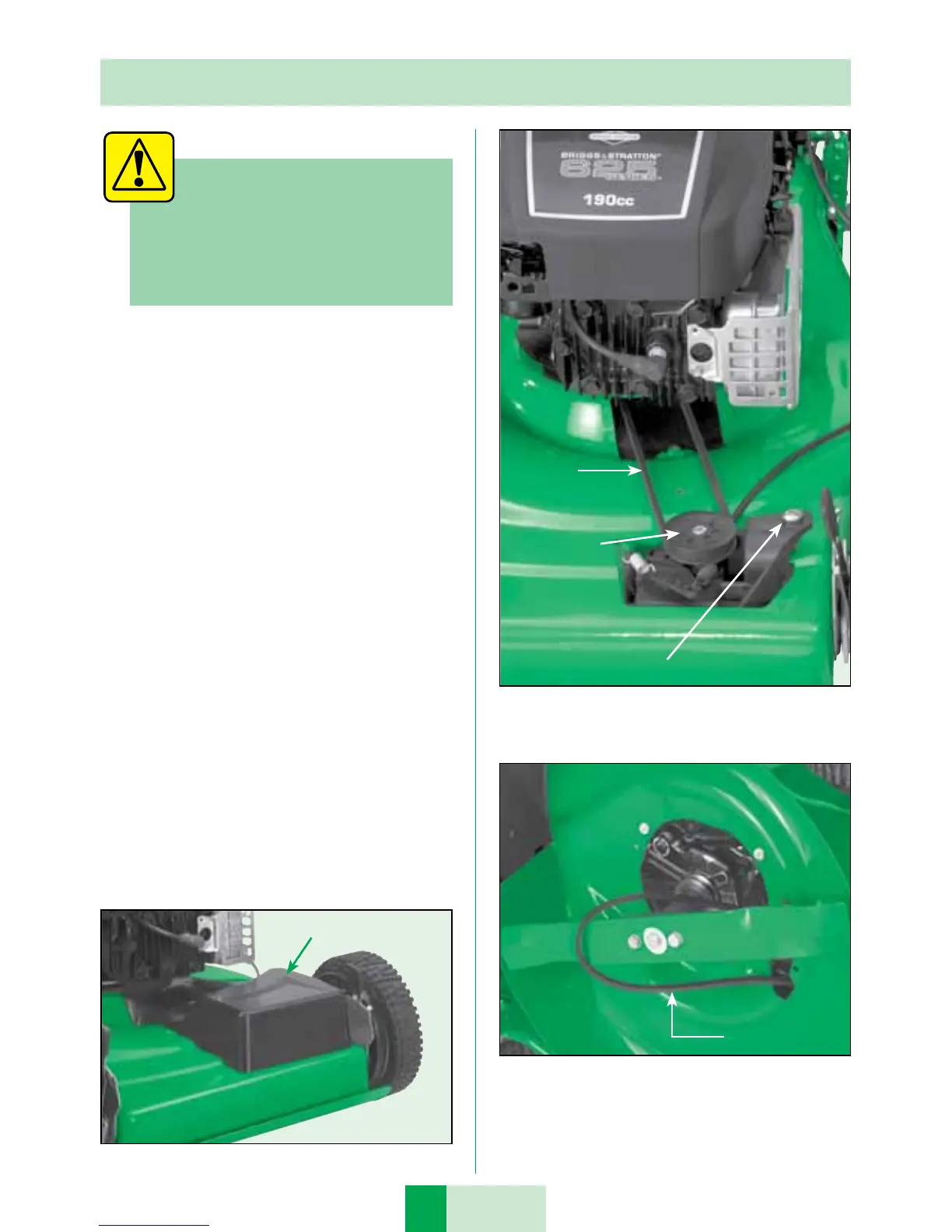

Figure 3
Figure 4
Figure 5
Belt
protection
Belt
Belt
Transmission
pulley
Belt tension screw
