TRAPP TR 200 - Page 25

ENGLISH
25
www.trapp.com.br

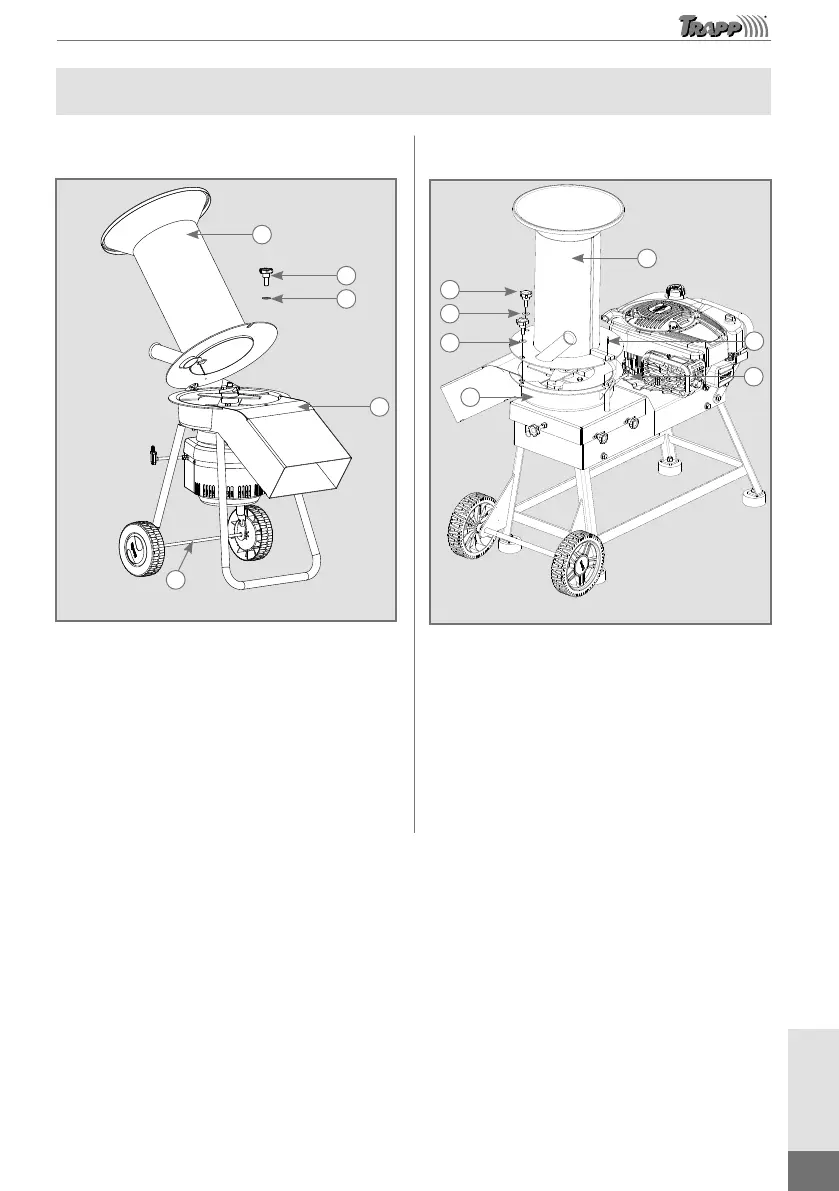

Feeding Funnel Assembly
TR 200
1
3
4
5
2
Image merely illustrative
1. Turn the handle (3) counterclockwise until you
remove it with the flat washer (4).
2. Break the clamp connecting the feed hopper (1) to
the wheel axle (2).
3. Lift the feed hopper (1) until it touches the body
(5).
4. Replace the handle (3) and flat washer (4) by
turning clockwise until full tightening and locking.
TR 200G
1
3
4
2
5
6
7
Image merely illustrative
1. Fit the feeding funnel (1) in the body (2), pass the
locking pin (3) through the holes of the feeding
funnel (1) and the body (2).
2. Fix the locking pin (3) with the cotter pin (4).
3. After that; lock the feeding funnel (1) using the flat
washer (5), spring washer (6) and the knob (7).
