Belt Maintenance - TR 200G

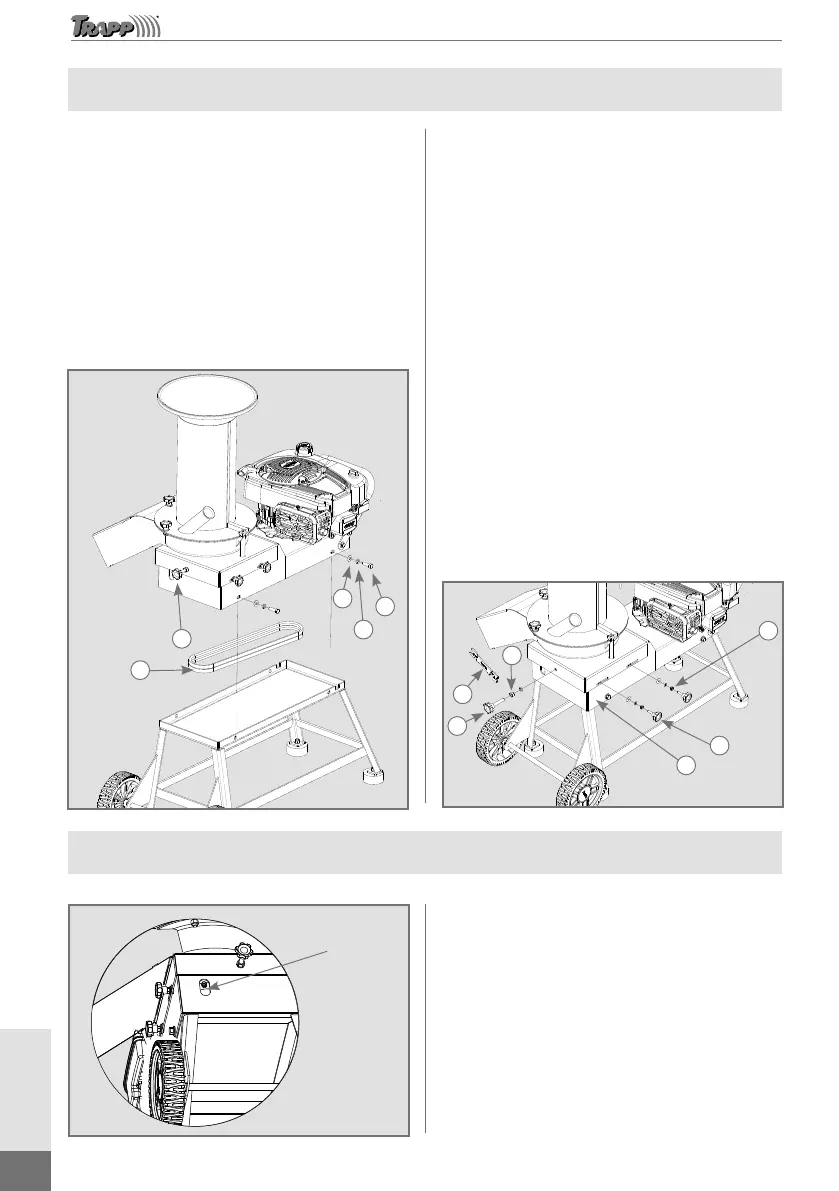

To change the belt, proceed as follows:
Remove the hexagonal bolt (1), the lockwasher
(2) and the flat washer (3).
Remove the top side of the machine (4) to have
access to the belts (5) and so be able to change the
belt when required.
To mount the assembly, follow the reverse
mounting sequence as shown in the following
image.
2
5
4
1
3
Image merely
illustrative
To stretch the belt 6 proceed as follows:
Loosen the nuts (1) in front of the handles (2) with the
wrench 7/16“ (5).
Loosen the nut (3) opposite the handle (4) with the
wrench 9/16“ (5).
After releasing the nuts (1 and 3) drop sticks (2 and 4)
and perform the adjustment of belt tension by
pressing the knob (4).
After adjusting the belt tension, perform tightening
the nut (3) with the wrench 9/16“.
Place the nut (1) on the handle (2) and tighten until it
touches the body of the machine (6).
Perform tightening the nuts (1) with the wrench
7/16“ (5).
Note:
A wrench with dimensions of 7/16“ and 9/16” is
provided with the package instructions.
1
2
5
3
4
6
Image merely illustrative
Cutting Blades Bearing Grease Fitting
Cutting blades
bearing grease
plug
It is recommended to re-lubricate the bearing with 4
grams of grease every 25 working hours.
Before injecting the grease by the grease plug, check
the inlet and confirm there is no dirt in the place, thus
improving the lubrication effectiveness.
Use NGLI 2 high performance grease to avoid
contaminating the grease in the bearing. Unimoly
GLP 2 or Ronex MP grease can be used.
