12
•
RUSTLER BRUSHLESS
TRAXXAS TQ 2.4GHz RADIO SYSTEM
Your model is equipped with the Traxxas TQ 2.4GHz transmitter.
The transmitter has two channels: Channel one operates the
steering, and channel two operates the throttle. The receiver
inside the model has three output channels. Your model is
equipped with one servo and an electronic speed control.

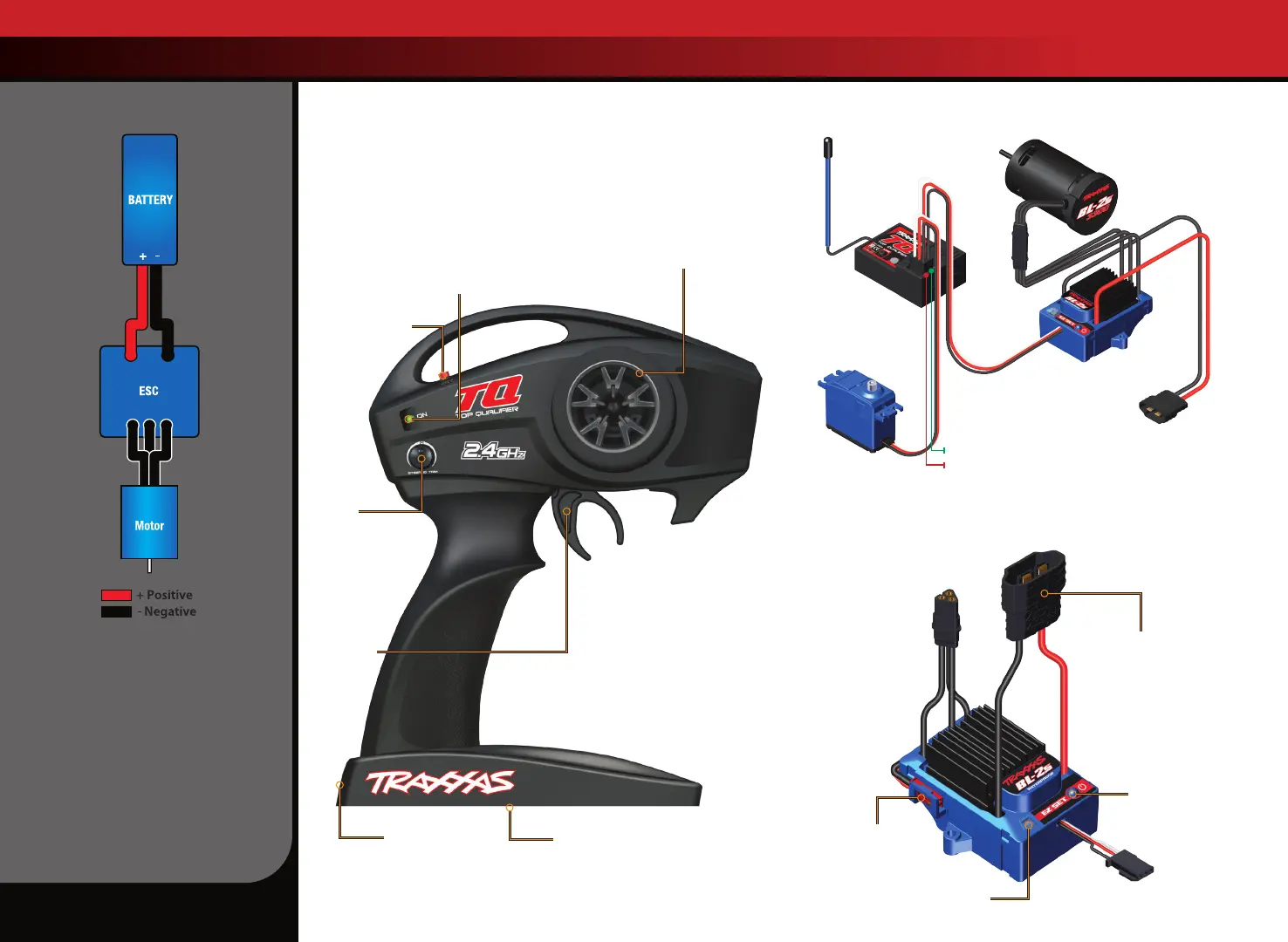

TRANSMITTER AND RECEIVER
Steering
Trim
Throttle
Trigger
Steering Wheel
Set Button
Red/Green Status LED
Power Switch Battery Compartment
MODEL WIRING DIAGRAM
BL-2S ELECTRONIC SPEED CONTROL
Antenna
Receiver
Motor
(BL-2s 3300)
Traxxas High-Current
Connector (Male)
to Battery
BL-2s Electronic
Speed Control
Channel 2
Steering Servo
Channel 1
CH3 - Channel 3*
CH2 - Speed Control
CH1 - Steering Servo
CH1 - Channel 1*
*not used
Traxxas High-Current
Connector (Male)
to Battery
To Motor
To Receiver
Accessory
Connector
not used
LED
Set Button
BL-2s Wiring Diagram
