treesse Fusion Spa 200 - Page 10

10
Pre-Installation Fusion minipool
EN

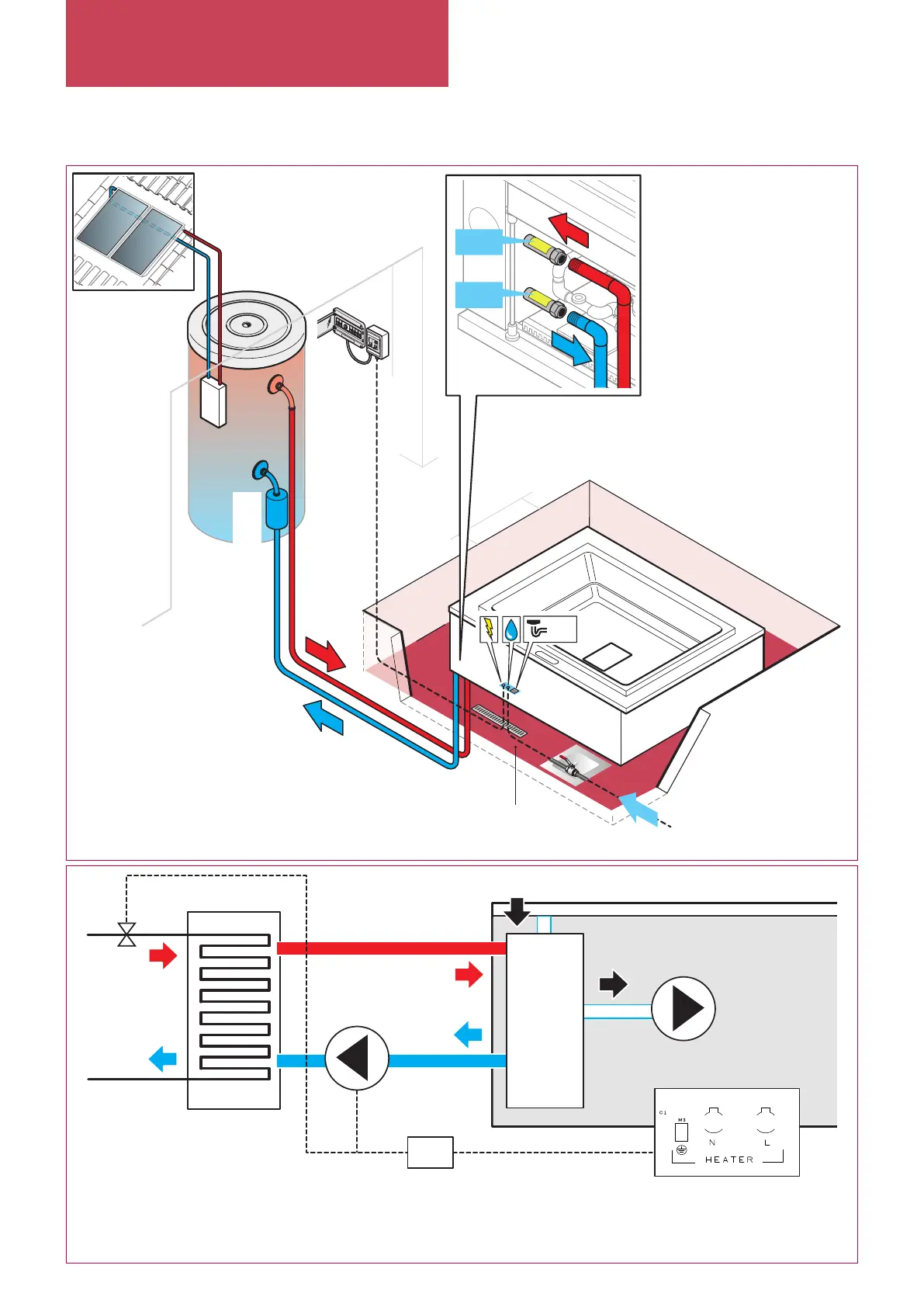

PREPARATION OF CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED)
ø40
IN
OUT
IN
OUT
IN
OUT
IN
Electrical connection
Exchanger
(not supplied)
Circulator
(not supplied)
Room for
the electrical
connections
Drain
Water
supply
Technical
inspection
port
IN: incoming hot
domestic water
OUT: outgoing cold
water
230V
C
S
P
in
out
PR
TC
EV
BS
P2
BL 1
BL2
HTR
Cromo
230V~
EVc
EVs
EVclv
+
-
230V heater/exchanger control cable
BS: water coming from the overow edge
C: switch (recommended)
OUT: outgoing cold water
P: circulator (not supplied)
PR: recirculation pump
S: exchanger (not supplied)
TC: minipool compensation tank
