Pre-Installation Fusion minipool
EN
The Treesse minipools are built in compliance with
European laws (EN 60 335-2-60) and are tested during
production to ensure the safety of the installer and user.
The electrical preparations are to be performed by a
suitably qualied and certied electrician.
All electrical preparations must be performed only
after disconnecting the electricity in the work area.
The electrical connection must be:
• Performed in a xed and permanent manner, without
intermediate splices, in accordance with regulations of
the country of installation.
• Sufcient for the current absorbed by the bathtub
(see technical specications).
• Provided with a functioning ground as per current
regulations.
• Protected against splashing water, then placed
in a dedicated room, closed and sheltered from the
weather.
• Controlled by a multi-pole switch with a contact gap of
at least 3 mm and a breaking capacity equal to 60A (or
in any case adequate for the absorption of the bathtub).
6
ELECTRICAL PREPARATIONS
• Controlled by a differential switch no larger than
30mA.
The control unit's power supply cable must be of the
H05 type with three wires (single-phase 220V) whose
gauges are adequate for the absorption of the minipool
(see "Pre-installation sheet"). Its size depends on the
absorbed current and the distance of the bathtub from
the main electrical cabinet.
In addition, if the bathtub is installed outdoors, the power
cord from the main electrical panel to the minipool must
pass through an underground duct, adequately protected
against freezing with insulation.
The Manufacturer is not responsible for connections
made in a way that does not comply with local
codes, the specications in this pre-installation
sheet or tampering with any electrical component of the
minipool.
min.
60 cm
min.
60 cm
min.
60 cm
min.
60 cm
min.
60 cm
MIN. 230 cm
MIN. 230 cm

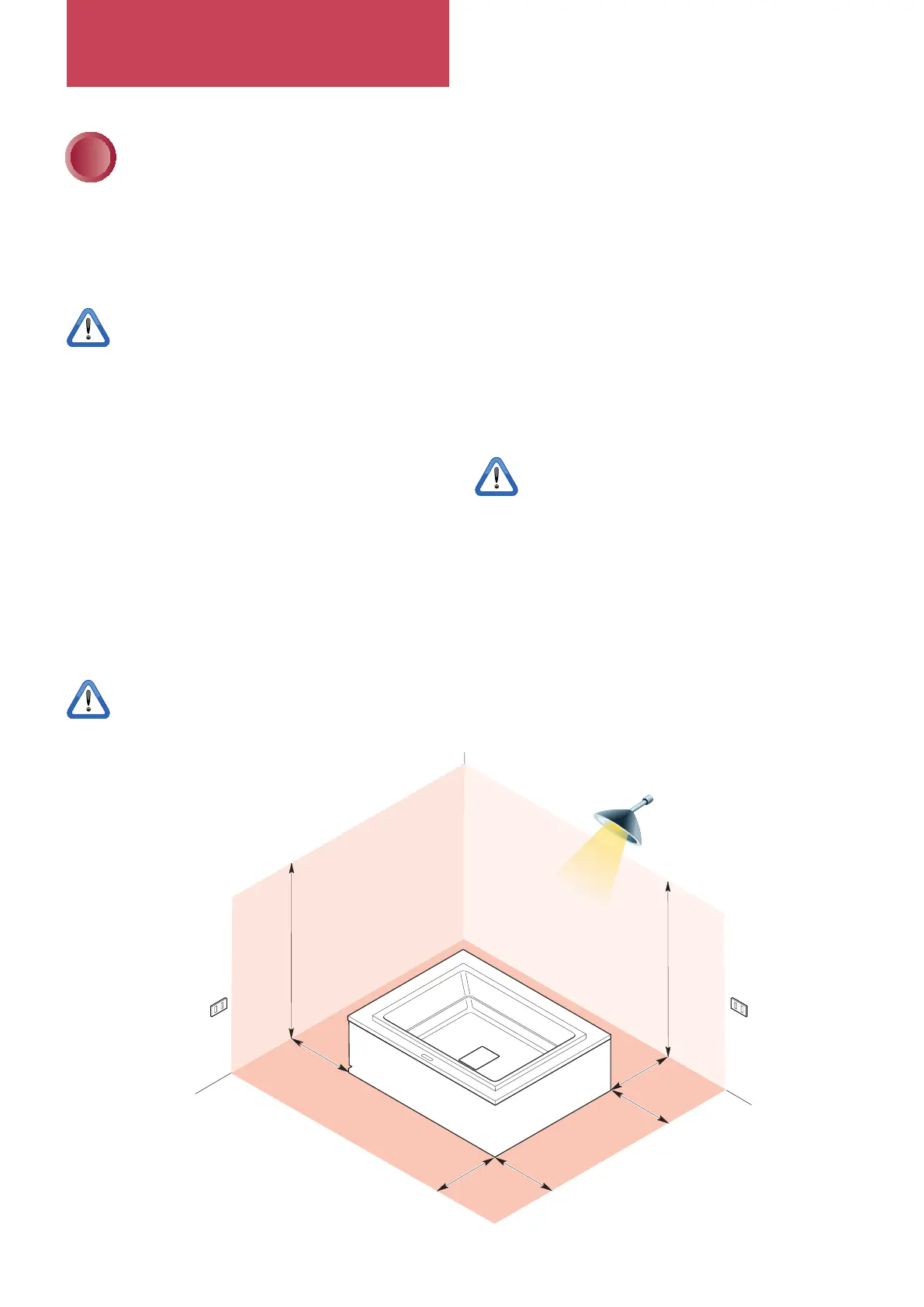

Local regulations prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surrounding
the minipool for a distance of at least 60 cm and a height of 230 cm.
