treesse Fusion Spa 200 - Page 14

14

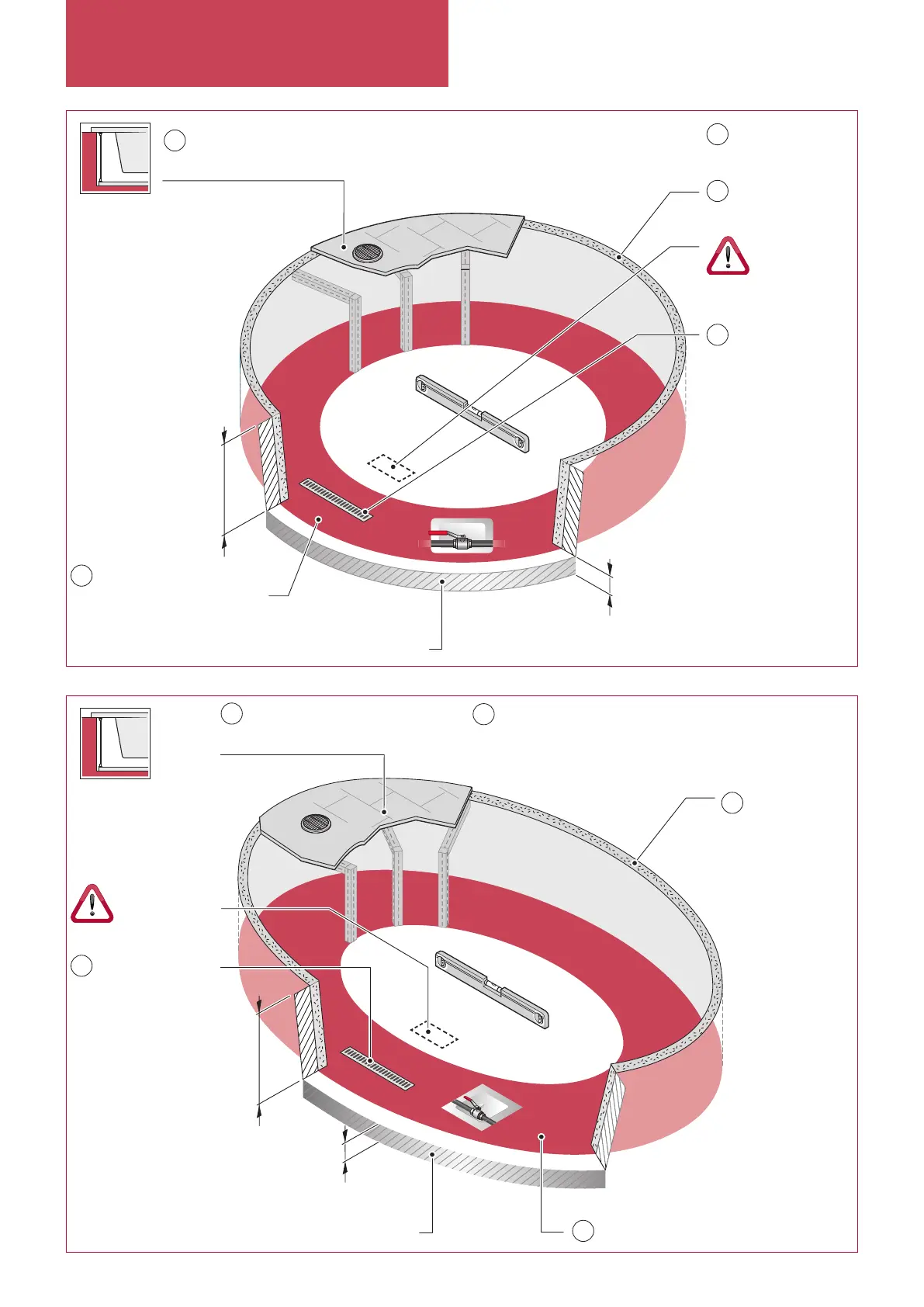

Pre-Installation Fusion minipool
EN
10
56
(measurements in cm)
See the plumbing
and electrical
preparations on
page 15 and 23.
A
Technical compartment for
maintenance of operational
components: plan for 50 cm
on all sides of the minipool
B
Internal drainage
grates
E
Insulation: prevents
damage from freezing
and condensation
D
2 Ø15 cm vents to ensure
proper ventilation of the
technical compartment
C
Non-slip ooring
CONCRETE SLAB h. 10 cm minimum
FUSION SPA
200
56
10
(measurements in cm)
See the plumbing
and electrical
preparations on
page 15 and 23.
A
Technical compartment for maintenance
of operational components: plan for 50
cm on all sides of the minipool
B
Internal drainage
grates
E
Insulation:
prevents damage
from freezing and
condensation
D
2 Ø15 cm vents to ensure
proper ventilation of the
technical compartment
C
Non-slip ooring
CONCRETE SLAB h. 10 cm
minimum
FUSION SPA
231
