Pre-Installation Fusion minipool
EN
OUTDOOR
INSTALLATION
150
18
12
12
ø40
A C
B
120
18
90
12
12
ø40
A
C
B

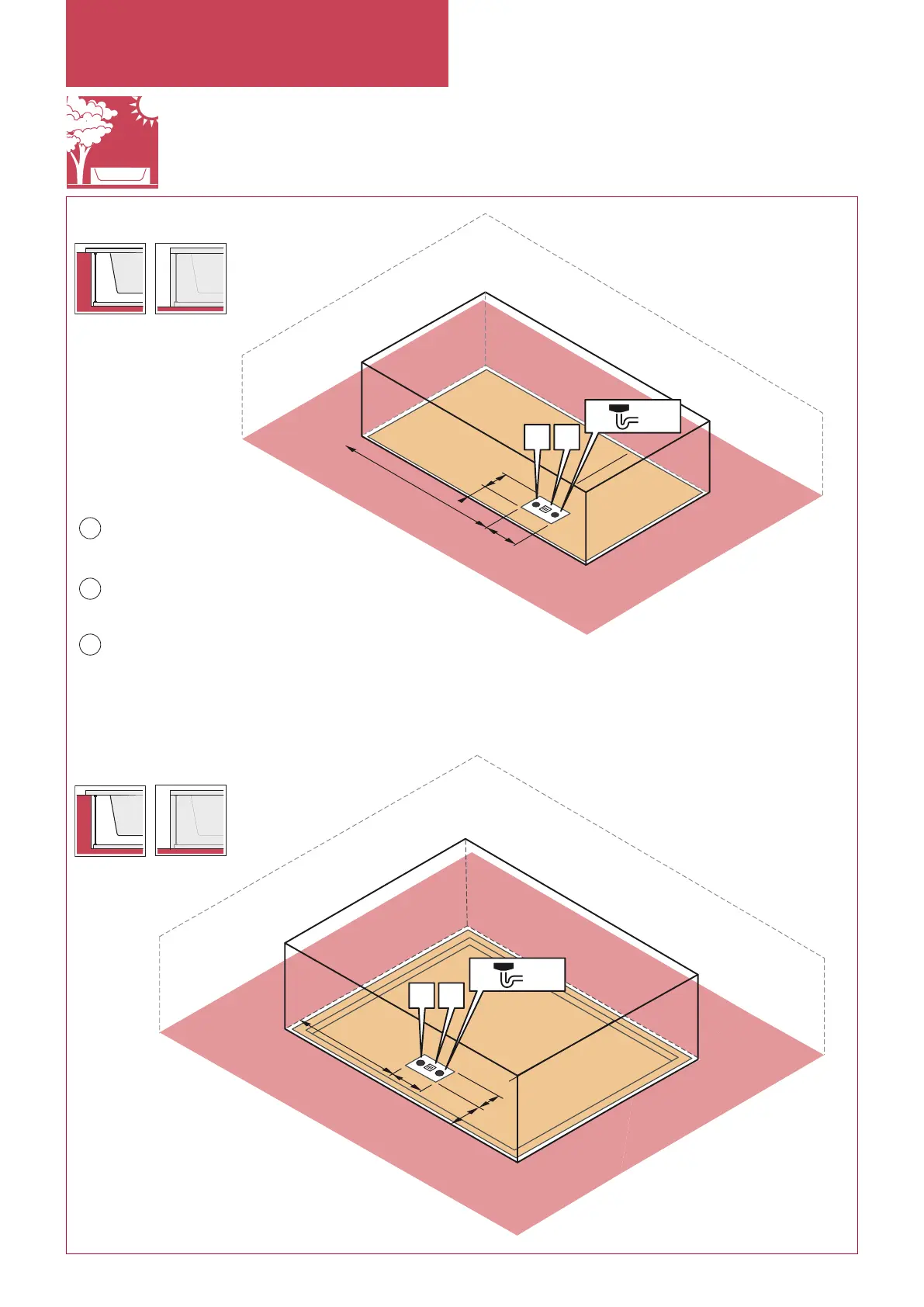

FUSION SPA 220
FUSION SPA 230
A
Water connection from 10° to
36°C 1/2" M
B
Floor drain ush with the oor
ø40
C
Electrical connection (power
cord type H05 with three wires
(single-phase 230V)
In the gures: installation to the left.
Installation to the right mirrors the left.
