5

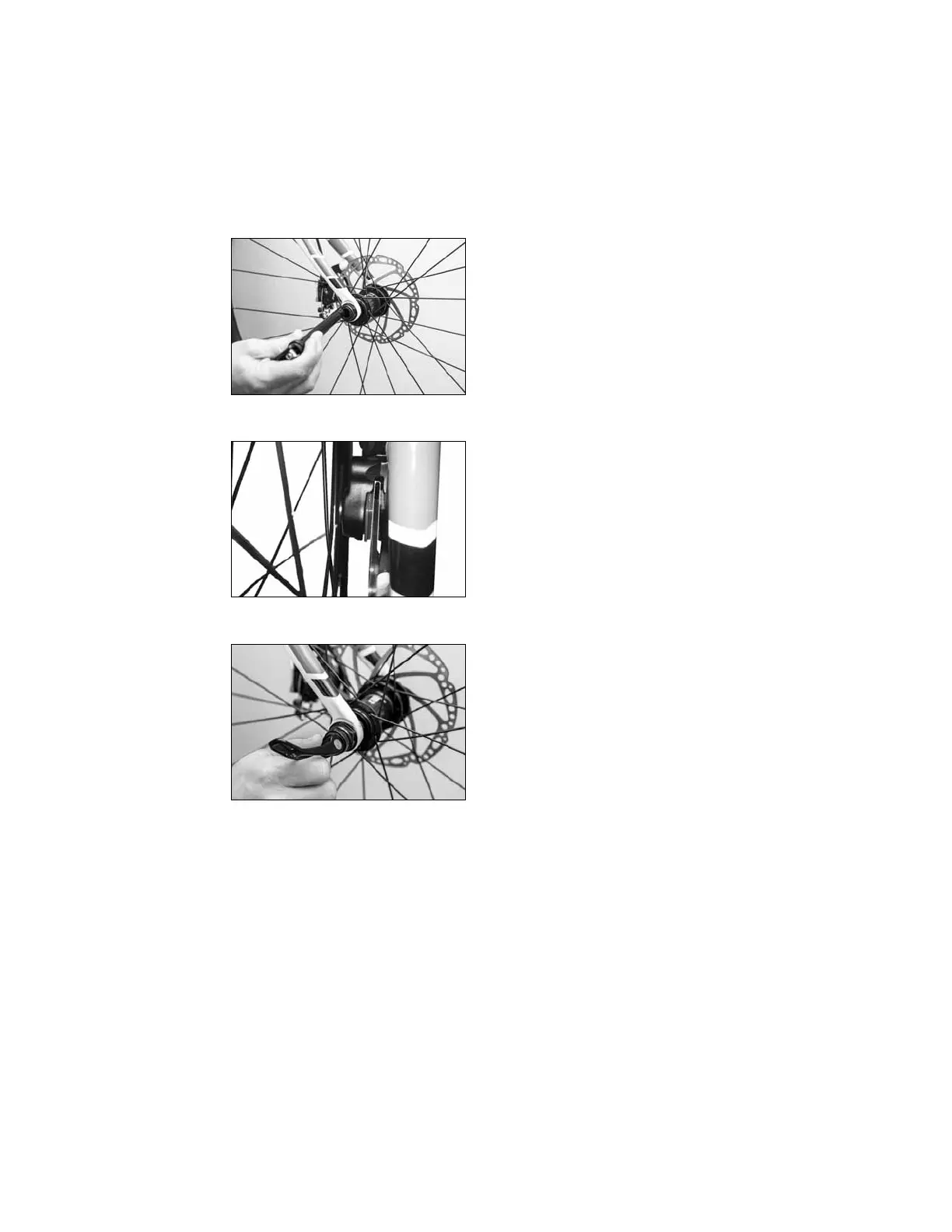

FIGURE 6 Inserting the thru-axle through the fork
and hub
FIGURE 7 Inserting the disc
FIGURE 8 Thru-axle in fork
WHEEL INSTALLATION
Be careful not to rub or scrape the fork
or frame with the disc. The disc can
damage the paint or even remove
frame material.
TO INSTALL A FRONT WHEEL
1. Remove the thru-axle from the hub
(Figure 6).
2. While guiding the disc past the brake
pads inside the disc caliper (Figure 7),
slide the wheel into the fork tips from
below.
3. With the wheel fully in the fork tips, pass
the axle through the right side of the fork
(opposite the disc) and then the hub
(Figure 8).
4. Gently engage the threads in the le side
of the fork and secure the wheel.
5. Follow the wheel inspection procedures
in the owner’s manual to make sure the
wheel is properly attached.
