4 5

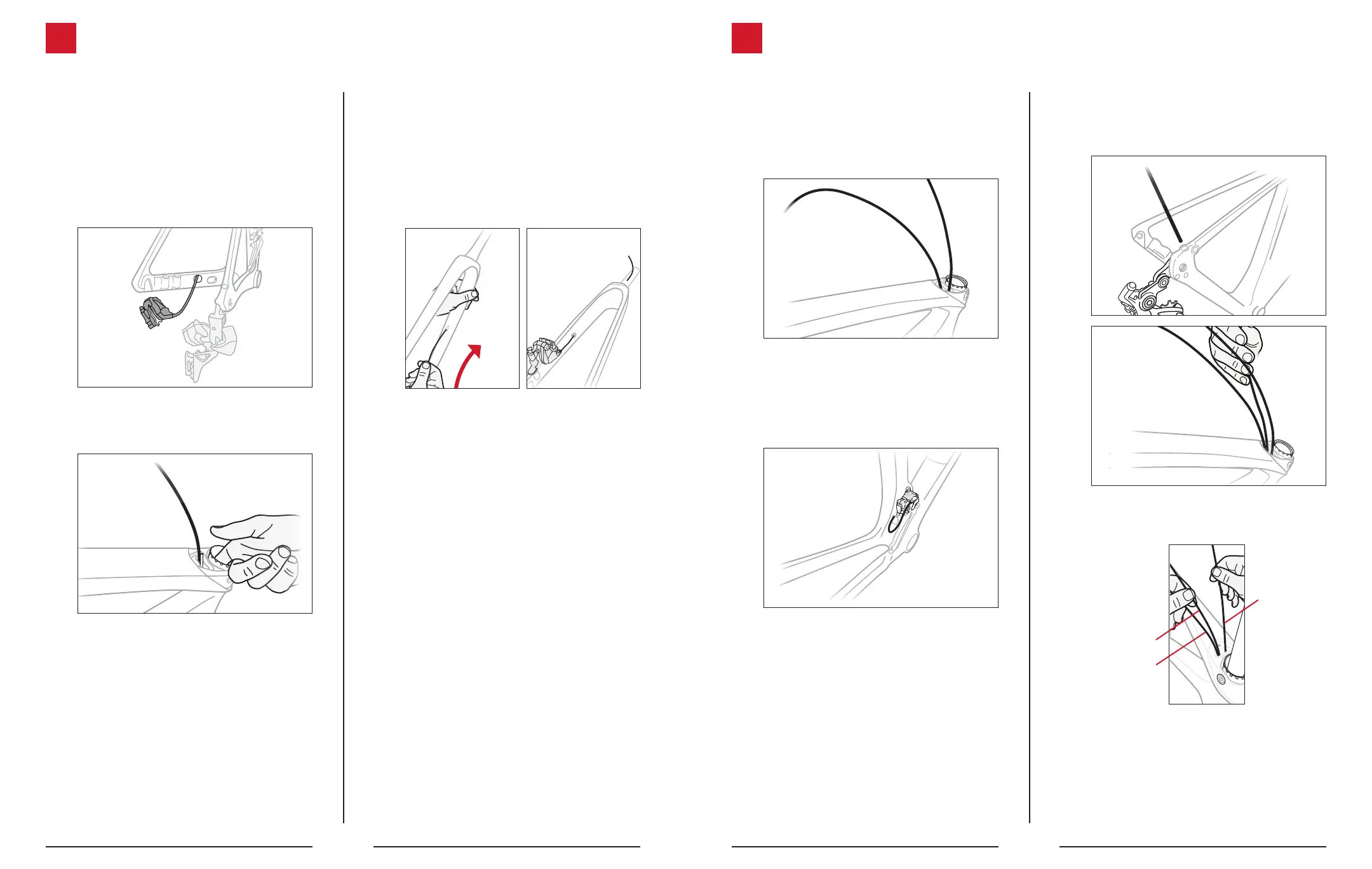

ROUTE CABLES AND HOUSINGS THROUGH THE FRAME
3
ROUTE AND INSTALL BRAKES
2
A. Mechanical
Route front derailleur housing
1. Route the front derailleur housing from the
head tube, down through the down tube, and
out the front derailleur hole at the base of
seat tube.
2. Insert the grommet onto the housing and
place the housing in the stop on the front
derailleur.
3 Set the grommet in place on the frame.
Route rear derailleur housing
1. Route the rear derailleur housing from the hole
in the chainstay, through the bottom bracket,
up the downtube, and out the top of the head
tube.
2. From the drive side of the head tube to the
non-drive side, the location of the housing and
hoses is:
REAR BRAKE
HOSE
REAR
DERAILLEUR
HOUSING
FRONT
DERAILLEUR
HOUSING
1. Front derailleur housing
2. Rear brake hose
3. Rear derailleur housing
A. Install rear brake in frame
1. Please see the gure at the bottom of page 5
for the correct housing locations at the head
tube.
2. Remove the rubber grommet from the non-
drive side chainstay.
3. Slip the grommet onto the brake hose and
route the hose through the grommet hole.
4. Route the hose through the bottom bracket, up
the down tube, and out the head tube.
5. Fit the grommet back into the hole in the
chainstay.
6. Bolt the brake in place.
B. Install front brake and brake hose
1. Place lower bearing on the fork race.
2. Route the hose through the fork access hole
(non-drive side) and up through the hole at the
back of the steerer tube.
3. Connect the brake to the fork. Tighten the
bolt just until the brake is snug. Do not fully
tighten.
To Next Page
