2023 Fetch+ 4
5
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies

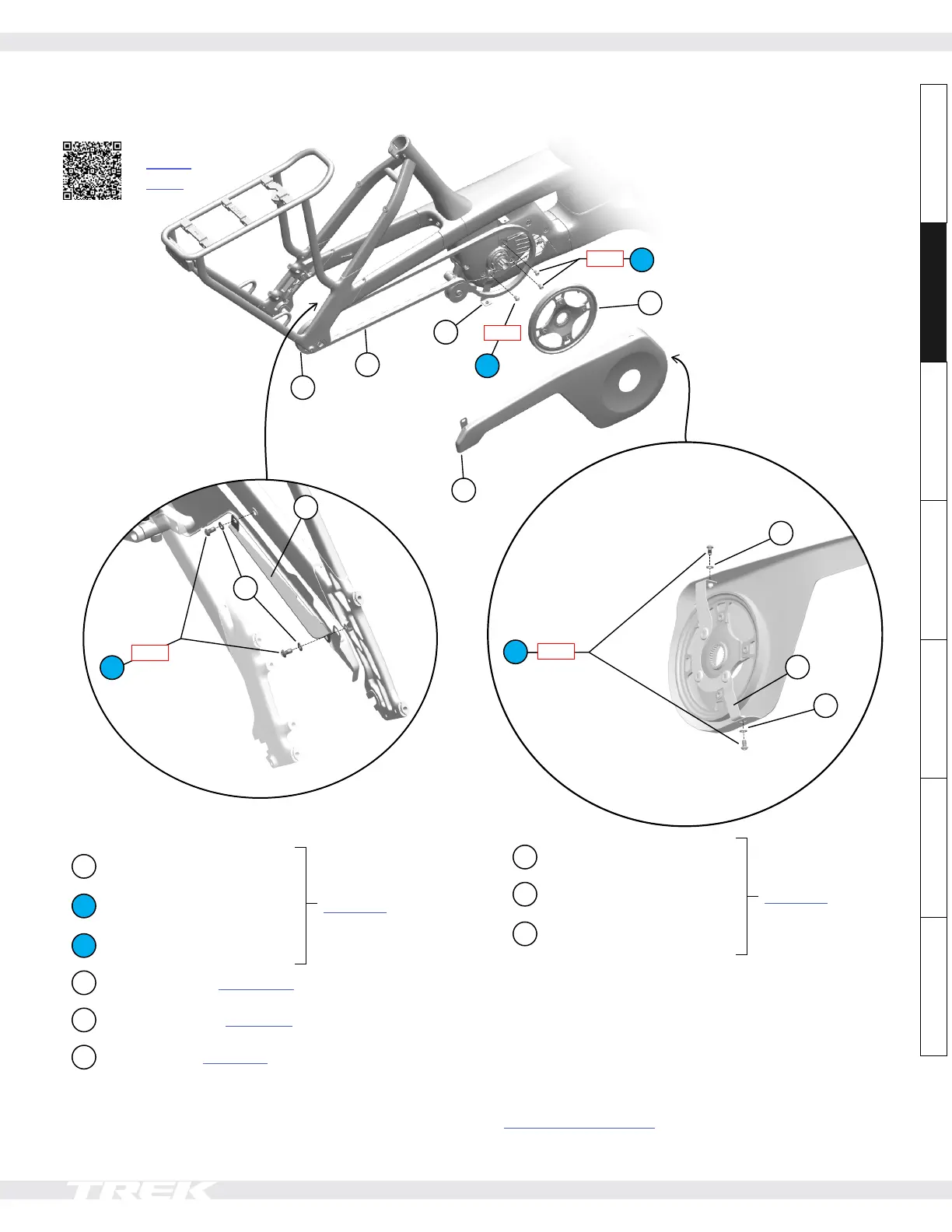

Drivetrain: belt guard
2
2Nm
3
5Nm
1
1
2
2Nm
1
3
5Nm
4
5
6
7
8
8
9
1
Washers (M5)
5284857
2
Bolts, T25 drive
(M5x10mm)
3
Bolts (M6x10mm)
4
Beltring (50T) — W5285189
5
Sprocket (22T)W590978
6
Belt (128T) — W571473
7
Belt guard
5280793
8
Belt guard bracket
9
Belt guard bracket addition
*North America only
Before removing the belt
Remove the belt guard
Remove the rear wheel
Remove the driveside crank arm
Release tension in the belt (see page 8)
See the manufacturer’s specications for more info:
GatesCarbonDrive.com.
Click
here
Or
