Trek Fetch+ 4 - Page 9

2023 Fetch+ 4
6
Steering Dr ivetrain Routing Battery Headsets Frame Accessor ies

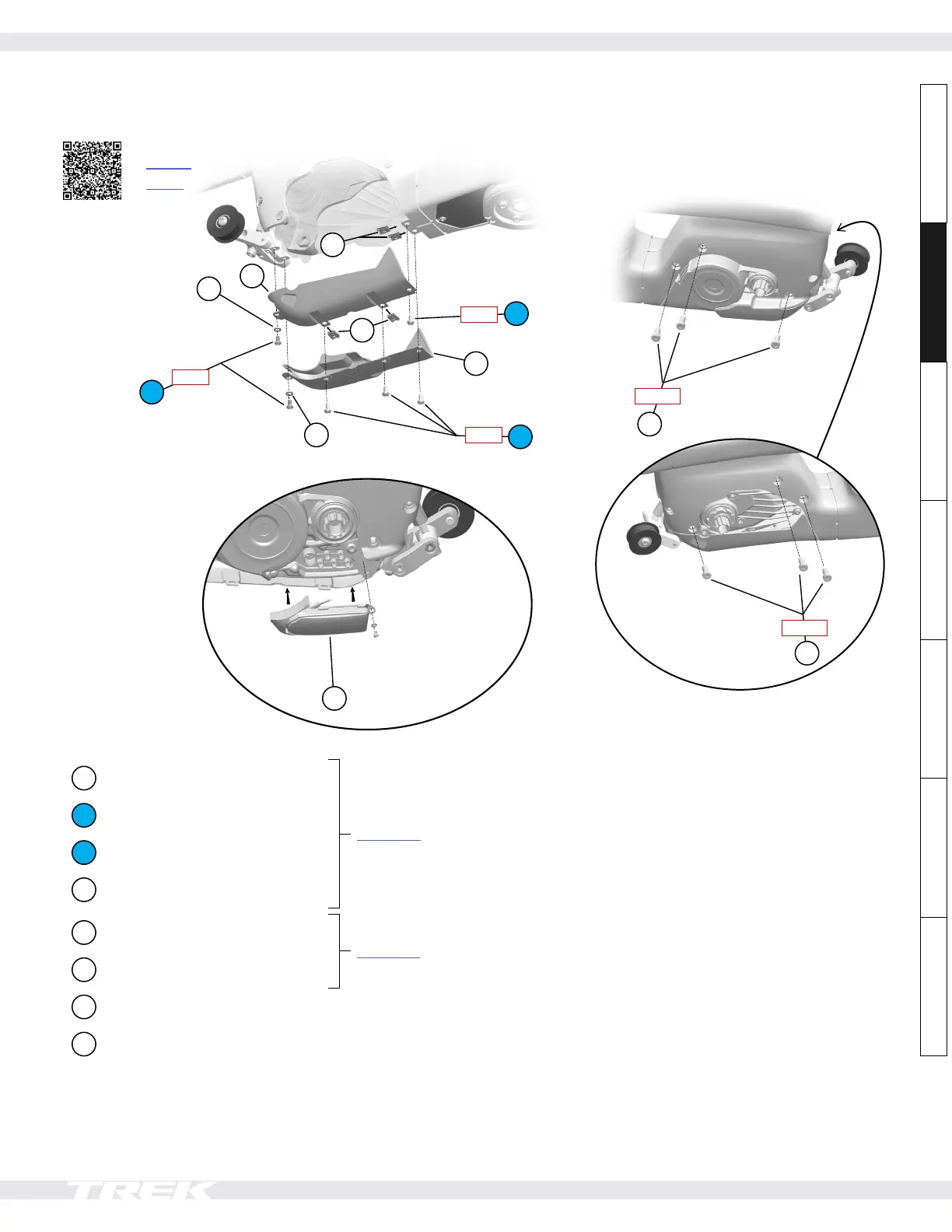

Drivetrain: drive unit cover
1
2
4Nm
1
3
2Nm
3
2Nm
4
4
5
6
7
7
8
20Nm
20Nm
1
Washers (M5)
5284548
2
Bolts, T25 drive (M5x10mm)
3
Bolts, T25 drive (M4.8x13mm)
4
Sheet nuts (M4.8)
5
Drive unit cover (non-drive side)
5280792
6
Drive unit cover (drive side)
7
Mounting bolts, T40 drive (M8x16mm) — *1270.016.470
8
Bosch connect module BCM3100 — *EB13.200.02L
*Bosch part numbers are not available on Trekbikes.com.
