TREND VSD2H - 261 A and 310 A Units Wall Mounting

2 VSD2H Variable Speed Drives Data Sheet TA201104 Issue 3, 08-Oct-2013
VSD2H Data Sheet
Physical (continued)
(dimensions in mm)
FUNCTIONALITY
The VSD2H range of variable speed drives provides 20 models (3 A to 310 A) for voltages from 380 to 480 Vac 3 phase with either
IP21 or IP54 rating. Designed for use in the HVAC environment, they enable fans and motors to regulate delivery of air and water in
variable ow applications. Where ow rates may be reduced, motor energy can be signicantly cut as the relationship between ow
rate and power follows a cube law hence reducing ow by 20% reduces power by 50%. The drives also enable saving in installation
costs; switchgear is eliminated, motor cables are reduced from 6 to 3 wires for larger drives, power factor correction capacitors are
not required, size and cost of cabling and fuses is minimised (as starting current is kept within nominal value).
The built-in application can be confgured to suit the user’s application using the startup wizard; select either pump or fan, and
enter nominal motor information. There are additional mini-wizards for setting up multi-pump control and the PID controller, and
performing a resonance sweep.

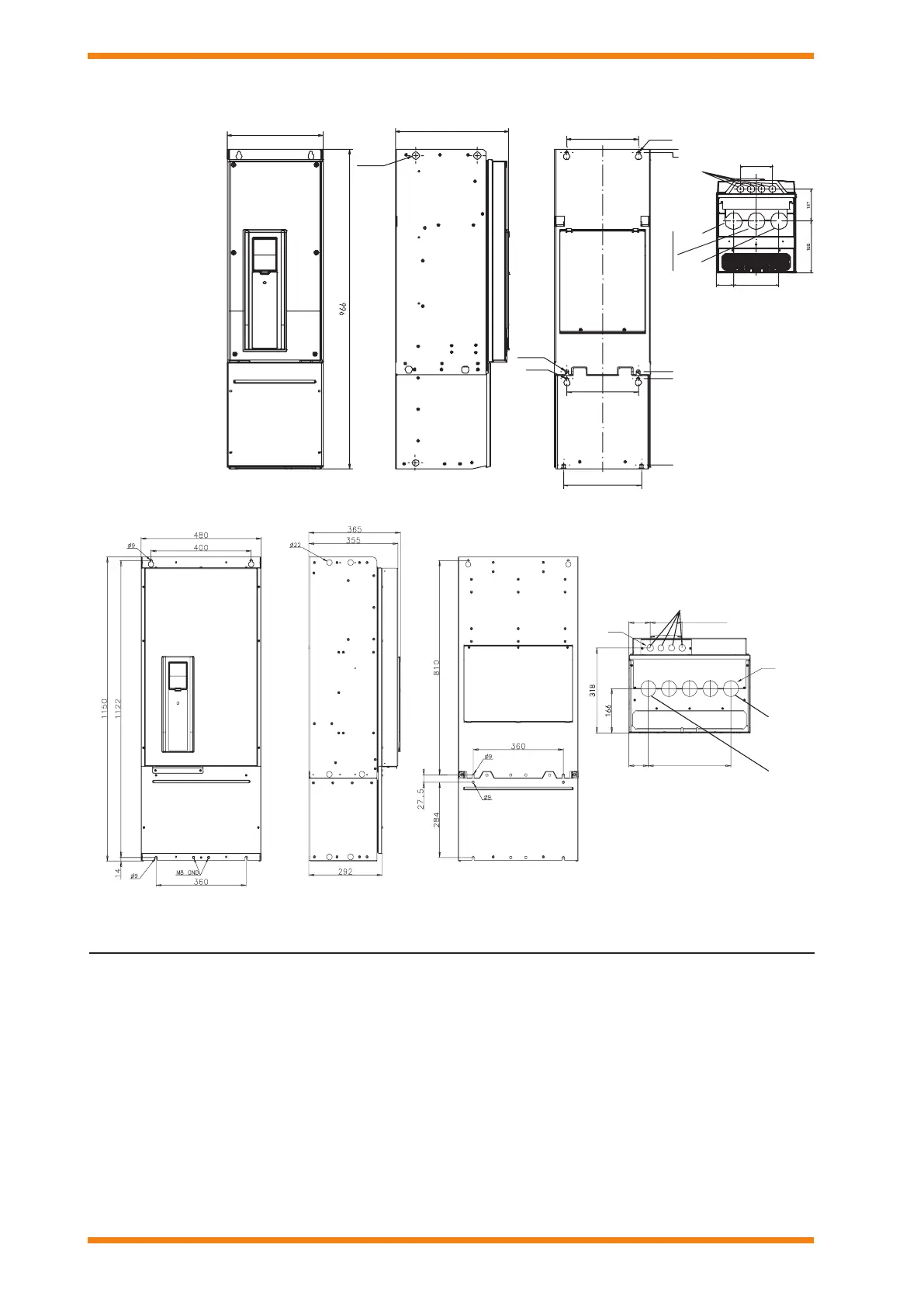

261 A and 310 A units (unit size MR9) wall mounting
140 A to 205 A units
(unit size MR8)
wall mounting
all Ø25
3x38
all Ø60
62,5 164
290
Ø22
343
Ø11
Ø9
216
672
694
956
235
217
Ø9
0
9
Motor
Supply
Control
IP21 and IP54
Supply
Motor
Control
4 x 81.5 = 326
3 x 42 = 126
77
84
Ø25
Ø59
IP21 and IP54
