ADSL modulation: Choose preferred xDSL standard protocols, defined by ISP.
G.lite: G.992.2 Annex A
G.dmt: G.992.1 Annex A
T1.413: T1.413 issue #2
ADSL2: G.992.3 Annex A
ADSL2+: G.992.5 Annex A
AnnexL Option: Checked to Enable the ADSL2/ADSL2+ Annex L capability.
AnnexM Option: Checked to Enable the ADSL2/ADSL2+ Annex M capability.
ADSL Capability: Checked to enable the bitswap capability or SRA capability.

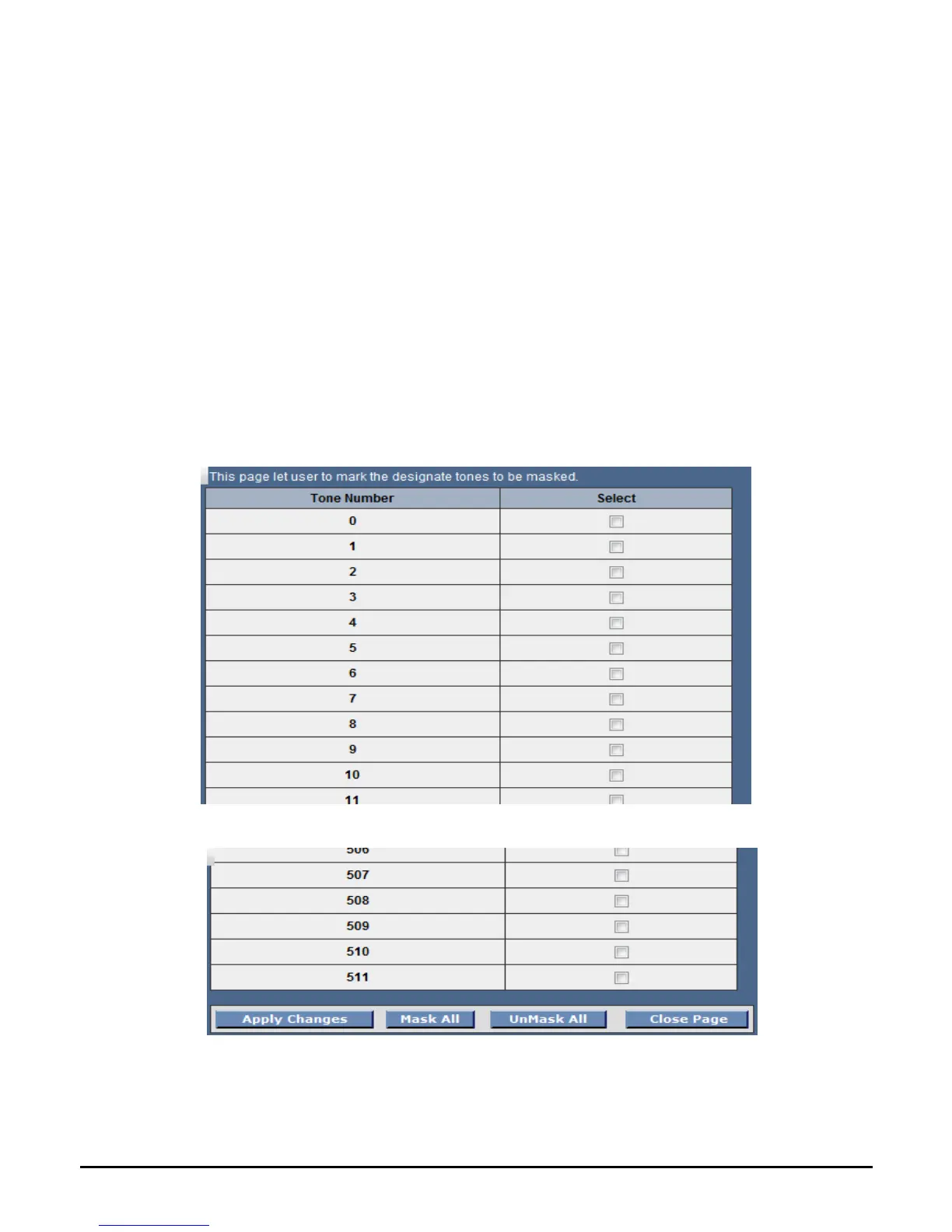

ADSL Tone: Click the “ADSL Tone” button to choose tones to be masked.
Masked tones will not carry any data.
:
.:
Apply Changes: Click to save the setting to the configuration and the modem
will be retrained.
