TRENDnet TI-PG1284i Quick Installation Guide

4
Safety Note
Ÿ Turn off the power before connecting any module or wire. The correct
power supply voltage (48 – 57 V DC) is listed on the product label.
Check the voltage of your power source to make sure that you are
using the correct part. Do NOT use voltage greater than 48 – 57 V
DC, as specified on the product label.
Ÿ Calculate the maximum possible current in each power wire and
common wire. Observe all electrical codes dictating the maximum
current allowable for each wire size. If the current surpasses the
maximum ratings, the wiring could overheat, causing serious
damage to your equipment.
!

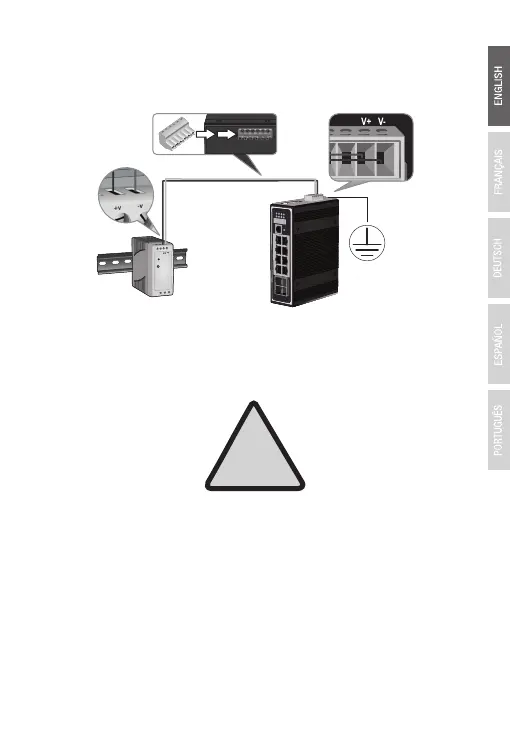

Optional: The switch chassis can also be connected to a known
grounding point for additional safety and protection (grounding wire is
not included)
GND

TRENDnet TI-PG1284i Specifications

General

Switch type	Managed
Switch layer	L2+
System event log	Yes
10G support	No
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Tagged VLAN, Protocol-based VLAN
Console port	RJ-45
SFP module slots quantity	4
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	-
Certification	CE, FCC
Product color	Black
International Protection (IP) code	IP30
Throughput	17.86 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Packet buffer memory	128 MB
DHCP features	DHCP server
Authentication	Port-based authentication
Security algorithms	802.1x RADIUS, HTTPS, SNMP
Multicast MAC address table	256 entries
Output current	5 A
Output voltage	48 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	260 W
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE) power per port	30 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Mean time between failures (MTBF)	322805 h
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	132 mm
Width	170 mm
Height	50 mm
Weight	920 g
