2) Refer to Illustration 4.2. Assemble the buttress post using
bolts 1/2" X 3" X #13 (12,7 mm X 76,2 mm) (U), nuts (UU) and
washers (V). Remember to insert a spacer (T) and two washers
(V) inside the butress post aligned to each bolt.
3) Refer to Illustration 4.3. Cover the bolt heads with bolt cap
covers (W) and insert the styrofoam block (X) at both ends of foot
beam.
STRAIGHT SECTION BUTTRESS ASSEMBLY (continued)
4
1/2” BOLT CAP COVER
STYROFOAM CAP
FOOT BEAM
BUTTRESS POST
SPACER
BOLT 1/2” X 3”
NUT 1/2”
R 1/2”

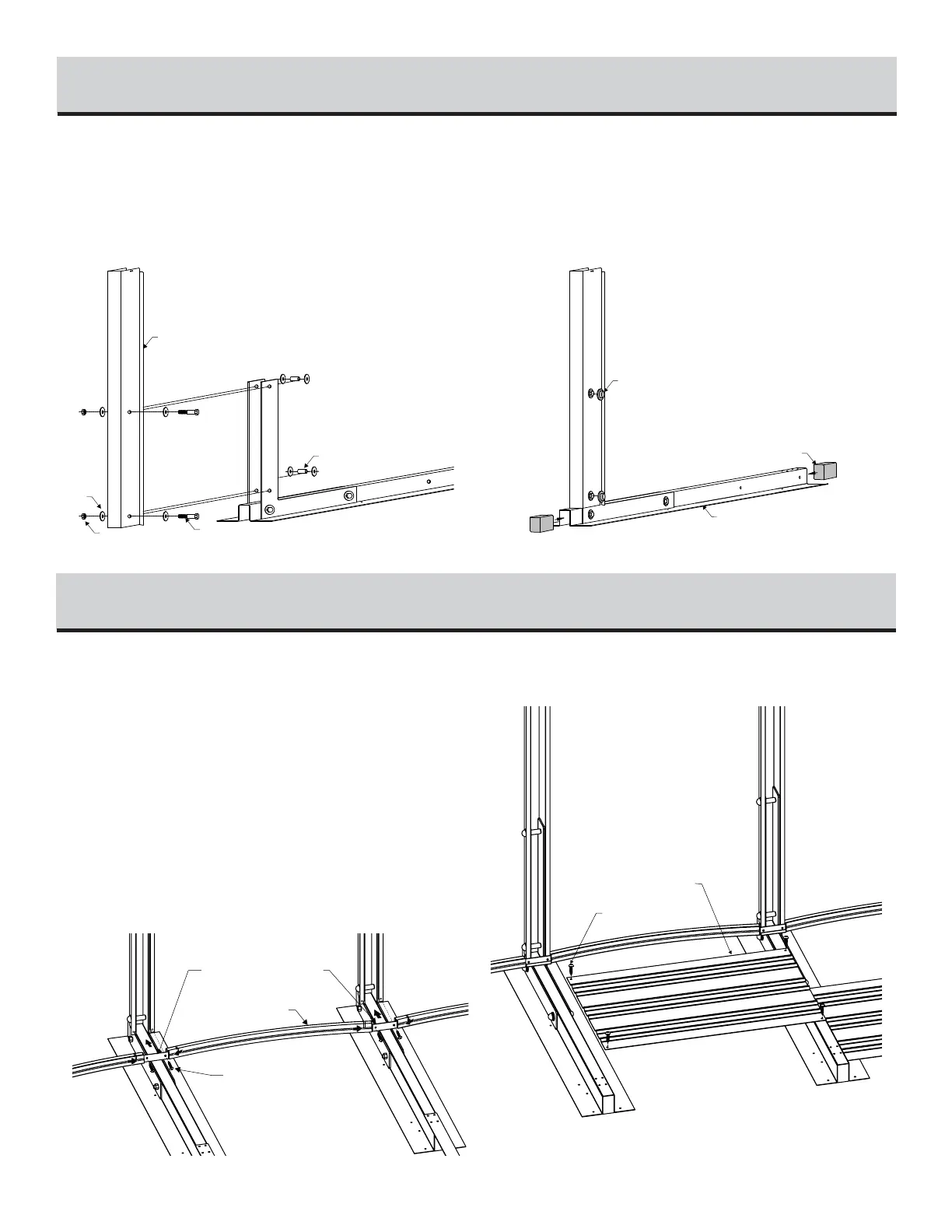

Illustration 4.3
Illustration 4.2
1) Position the buttress posts assembled in Step 4 on the patio
blocks in the trenches previously dug.
2) Refer to Illustration 5.1 : Once the buttress posts are placed
in the trenches, assemble the straight section bottom tracks be-
tween the buttress posts by fixing them on the bottom track jonction
and fix them to the foot beams using standard screws #14.
3) Refer to Illustration 5.2 : Fix the pressure plates between the
foot beams with four (4) standard screw ‘’Z’’.
BOTTOM TRACKS (straight section) AND PRESSURE PLATES
5
Illustration 5.2
Illustration 5.1
BOTTOM TRACK
STRAIGHT SECTION
STANDARD
SCREW #14
BOTTOM TRACK JONCTION
STANDARD
SCREW #14
PRESSURE PLATE
