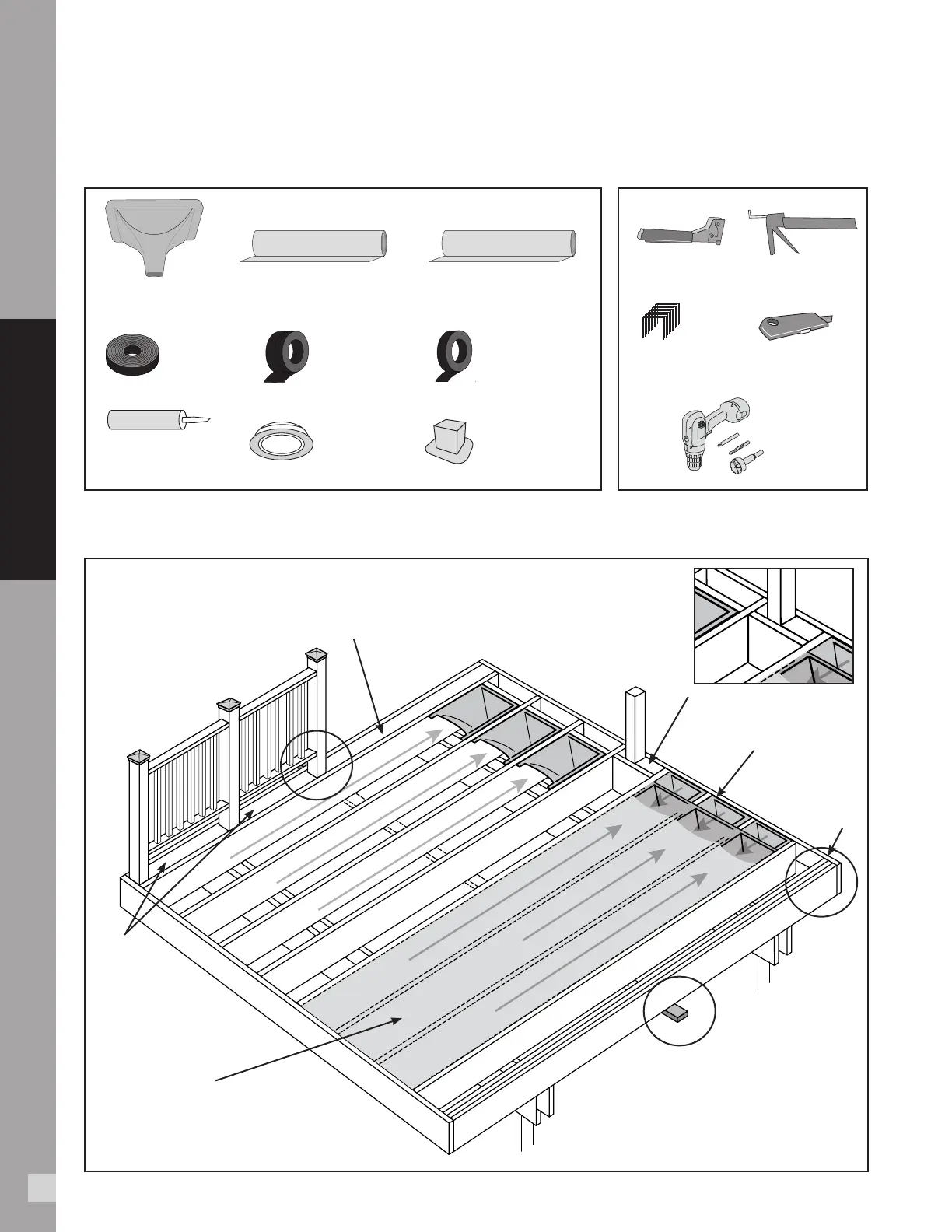

TREX RainEscape - Basic Installation; Parts, Tools, and Framing Details

4
PARTS TOOLS
DOWNSPOUT - 40mil
4X4 POST FLASH
(102 mm x 102 mm)
SOFFIT
LIGHT
WALL FLASH
1/4" x 1" x 25'
(6.35 mm x 25.4
mm x 7.62 M)
TROUGH - 20mil
19-5/8" x 16' (49.8 cm x 4.8 M)
TROUGH - 20mil
19-5/8" x 12' 49.8 cm x 3.6 M)
TREX RAINESCAPE BUTYL
CAULK* (10.5 oz tube)
TAPE
4" x 50'
(102mm x 15.24 M)
STAPLE GUN
REGULAR STAPLES
(3/8" or longer)
CAULK GUN
UTILITY KNIFE
WATER FLOW DIRECTION:
1/4" fall per foot
INSTALL
DOWNSPOUTS
(See pg. 5)
INSIDE POST INSIDE POST
MOUNTMOUNT
2 x 4 FLAT
BLOCK
2 x 4 FLAT
BLOCK
TRIPLE BEAM & FLUSH
MOUNT POST
(See pg. 17)
CANTILEVERED
DOUBLE SIDED TAPE
2
1
/2" x 50'
(63.5 mm x 15.24 M)
BASIC INSTALLATION
FRAMING DETAIL
* One tube covers 25
linear ft. w/1/4" bead
INSTALLATION OF THE
FLAT BLOCKING AND RAILING
(See pgs. 16 & 17)
INSTALLATION
OF THE
TROUGH
(See pg. 7)
PLACE A TEMPORARY
NAILER ATTACHING TO
EACH JOIST
4-5/8" (120 mm)
HOLE SAW
BASIC INSTALLATION
