Injector sizes:
Open burner Natural gas injector = 2.6mm / Size 37
Open burner LPG injector = 1.6mm / Size 52
TSR4, TSR8 Natural gas Oven burner injector = 1.8mm / Size 50
TSR6, TSRI 0, TSRl2 Natural gas oven burner injector = 2.1mm / Size 46
TSR4, TSR8 LPG gas Oven burner injector = 1.2mm / Size 56
TSR6, TSRIO, TSRl2 LPG gas oven burner injector = 1.3mm / Size 55
Oven - Natural gas pilot injector = 3.7mm / Size 26
Oven - LPG gas pilot injector = 4.3mm / Size 18
Adjusting minimum output on open burner:
To adjust the flame when on minimum setting, remove the control knob, insert a screwdriver through the
hole and adjust the screw I, until a stable and even flame is achieved.

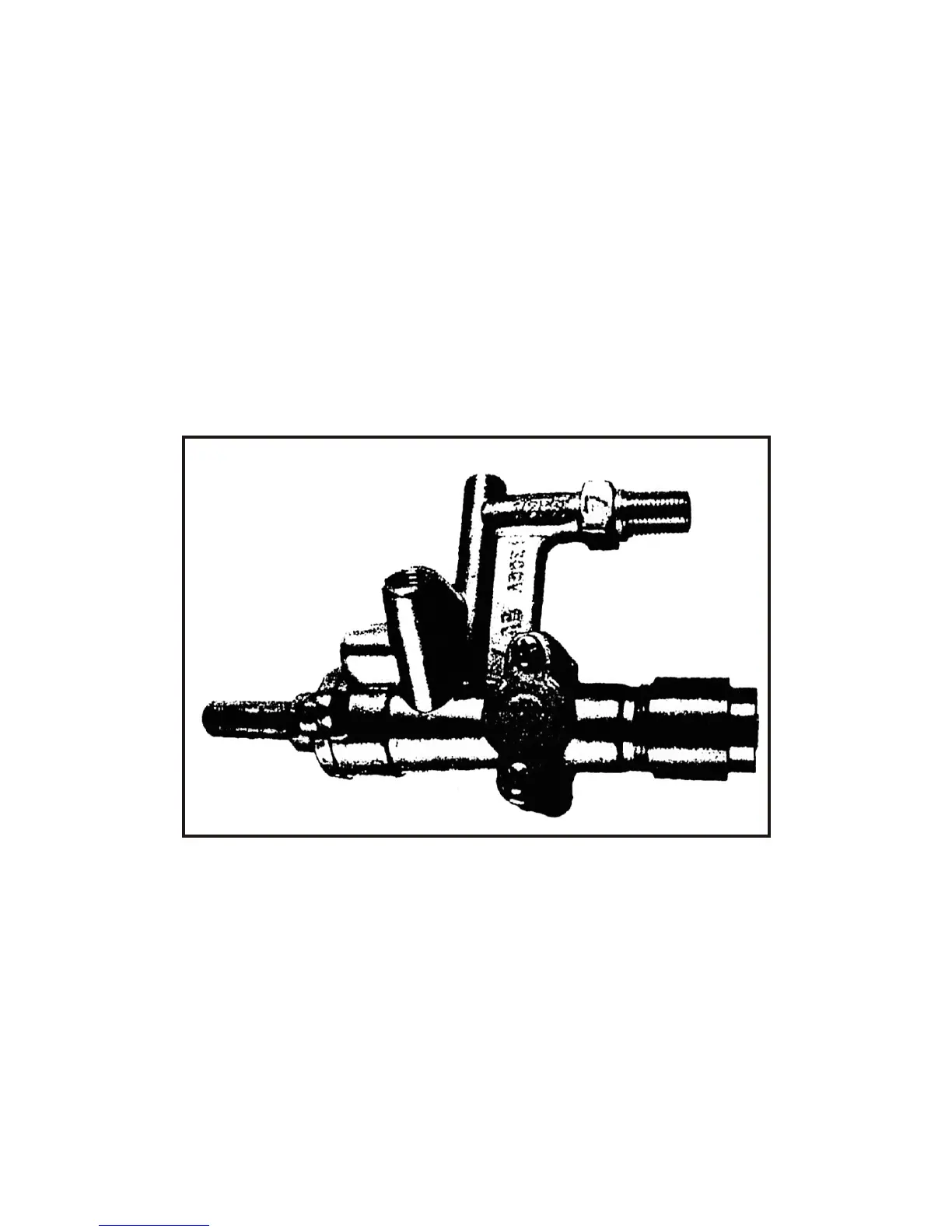

1. Screw to adjust minimum output
2. Gas inlet pipe fitting
3. Thermocouple pipe fitting
4. Gas outlet pipe fitting
6
