MOUNTING YOUR CROPSAVERS
10.

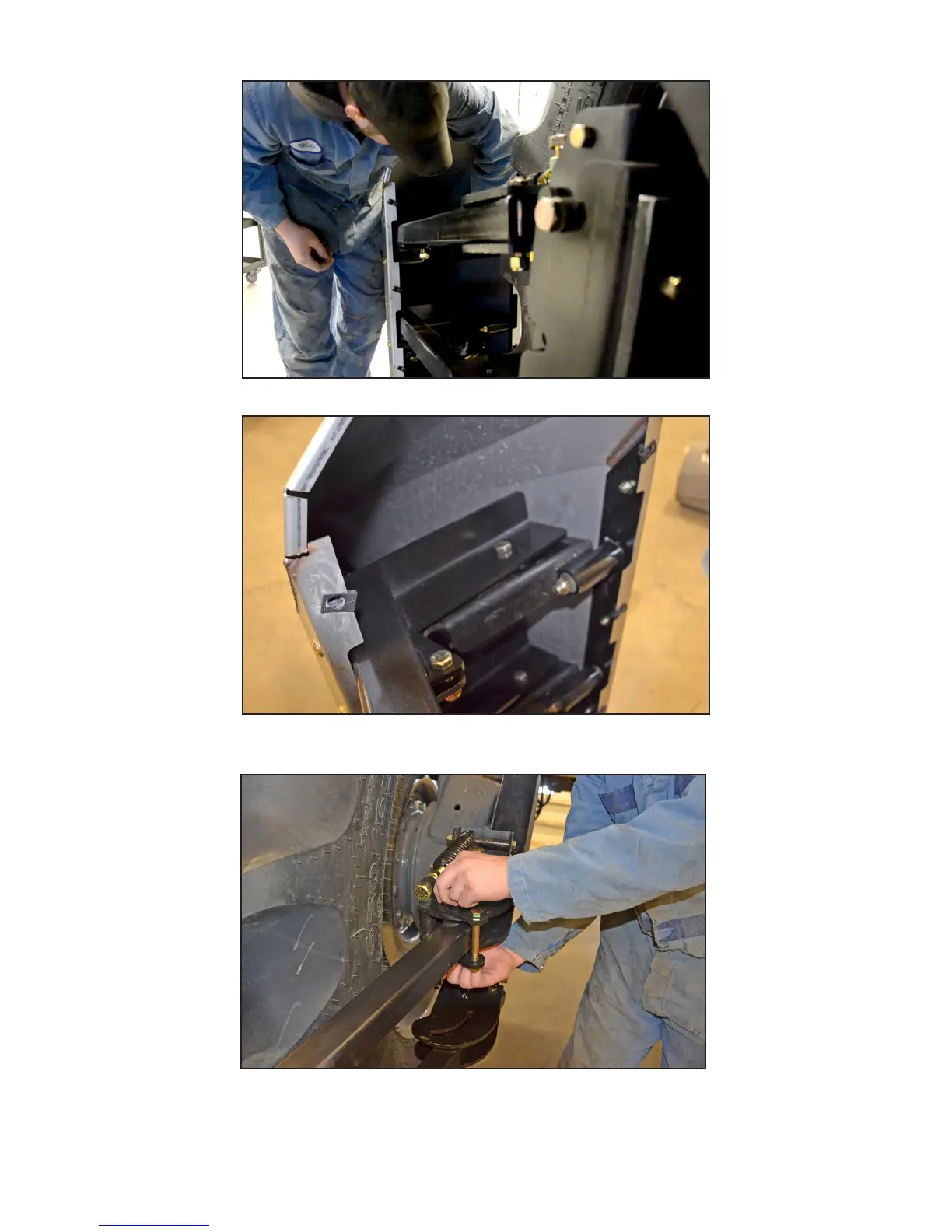

Bolt arms into hinge plates. Note bolts holding arms on are kept loose at this point in time to allow for alignment.
11.
12.
Adjust cone to align it to the sprayer tire – the cone end pivots where the arms
bolt to the pivot plates. Make adjustments as described in step 12 simultaneously.
Arms can be moved back and forth horizontally to align Cropsaver to wheel. Cropsaver is properly aligned when arms are
no closer that 1” away from the side of the tire, and cone is covering the entire width of the tire in the front. When Cropsaver
is in correct place use clamp plates to lock Cropsaver in required position. Tighten all bolts in picture 7 and 11 at this time.
